Removal Procedure

  1. Remove the left I/P accessory trim plate.
  2. Disconnect the electrical connectors.
  3. Using a taped flat-bladed tool, gently pry and release the 4 clips around the lamp dimmer switch/remote control rearview mirror switch trim plate (2).
  4. Using a taped flat bladed tool, gently pry and release the clips around the power mirror switch (1).

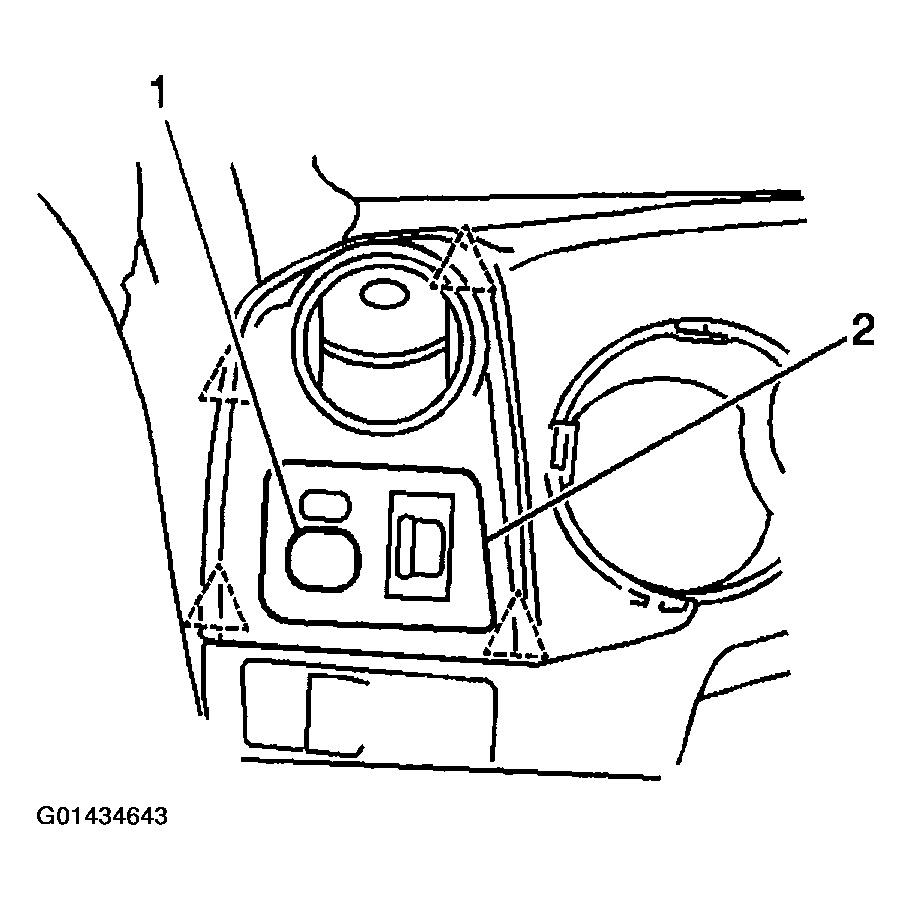

    Fig 1: Prying And Releasing Clips Around Lamp Dimmer Switch/Remote Control Rearview Mirror Switch Trim Plate
    G01434643Courtesy of GENERAL MOTORS CORP.
