Accelerometer Connector End View

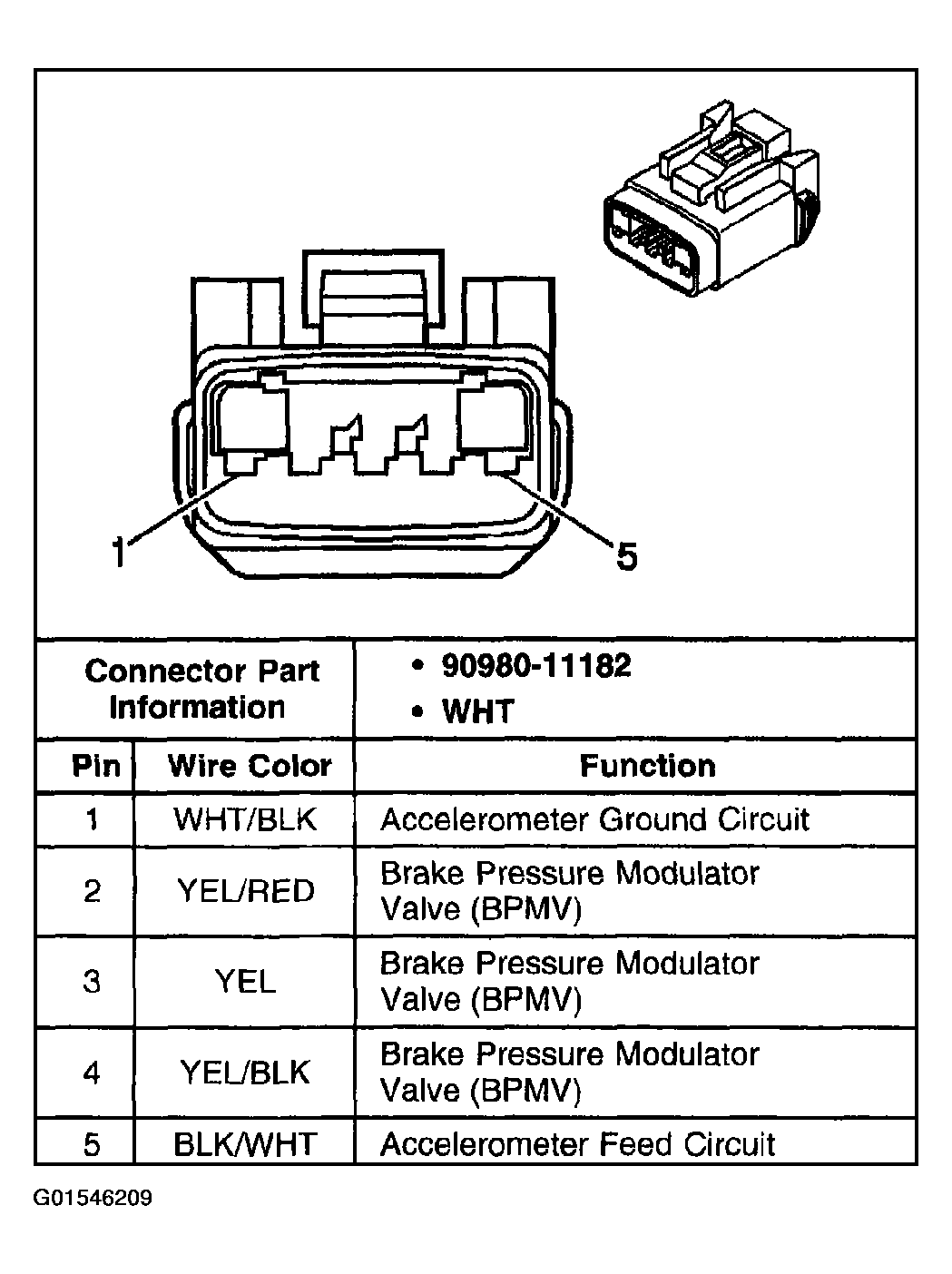

Fig 1: Accelerometer Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
