Terminals Of Shift Lock Control Module Connector End View

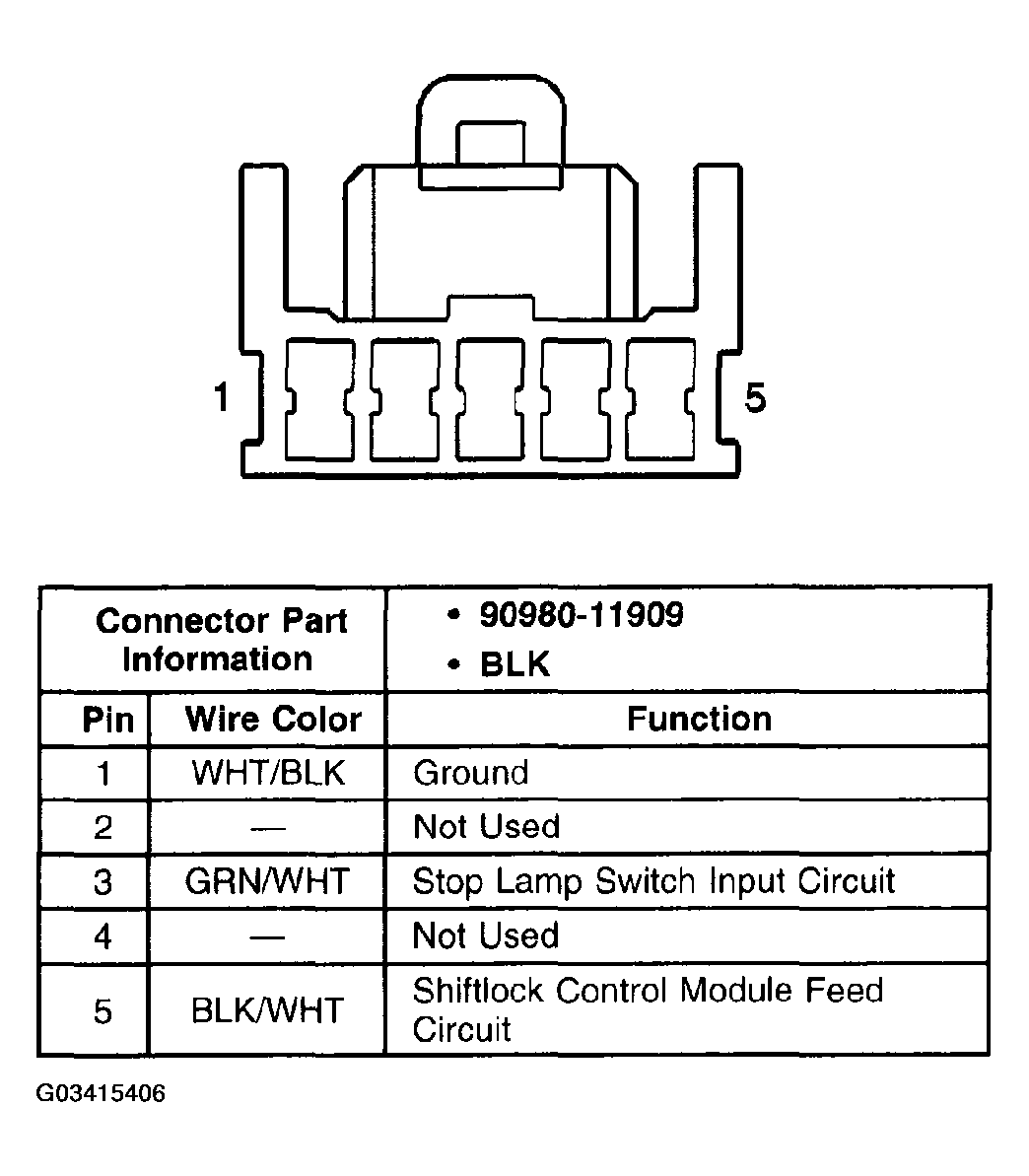

Fig 1: Terminals Of Shift Lock Control Module Connector End View
G03415406Courtesy of GENERAL MOTORS CORP.

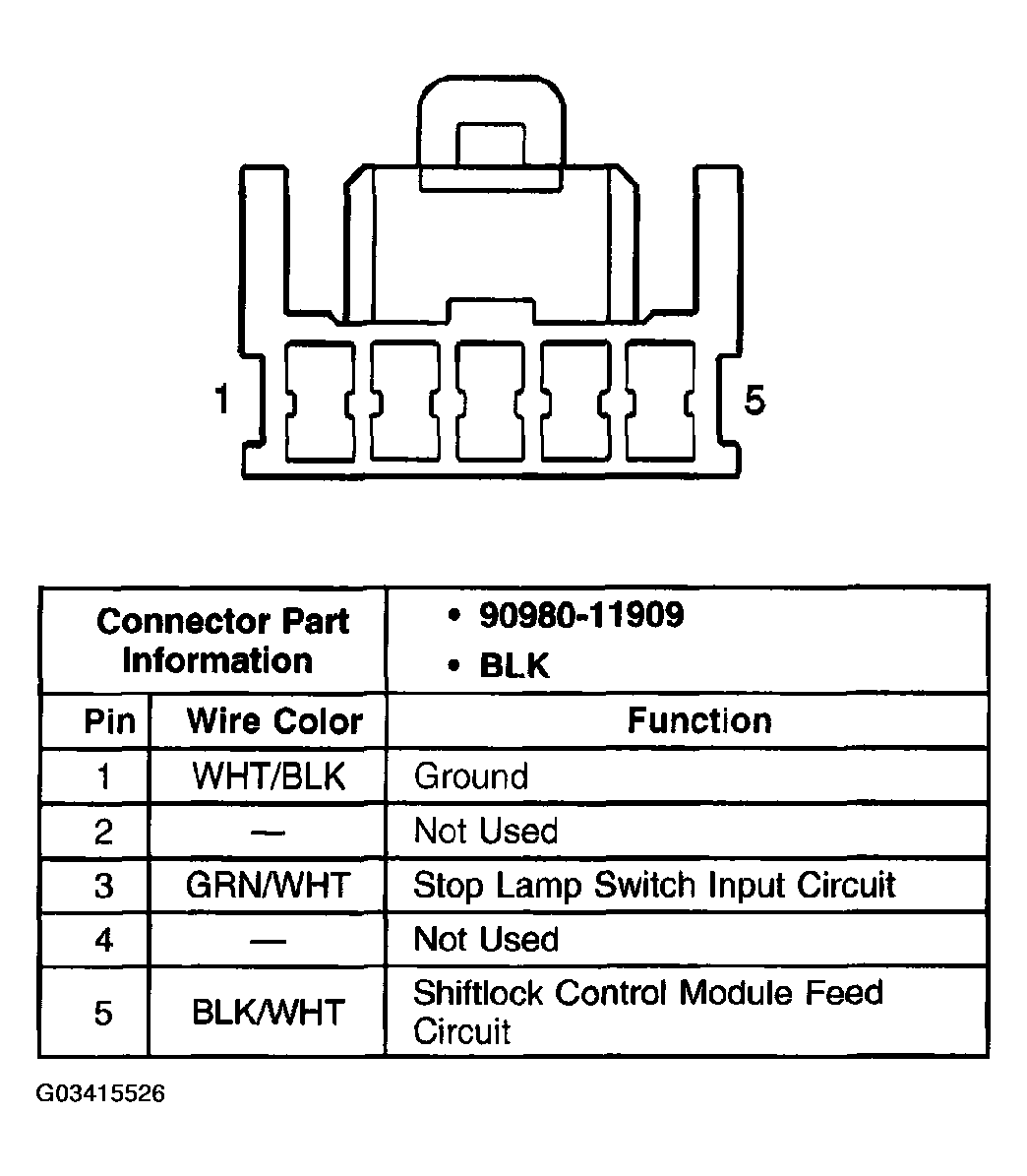

Fig 1: Terminals Of Shift Lock Control Module Connector End View
G03415526Courtesy of GENERAL MOTORS CORP.
