Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Instrument Panel Fuse Block | Left of steering column, behind storage compartment. |
| Right I/P Junction Block | Behind right side of dash. |

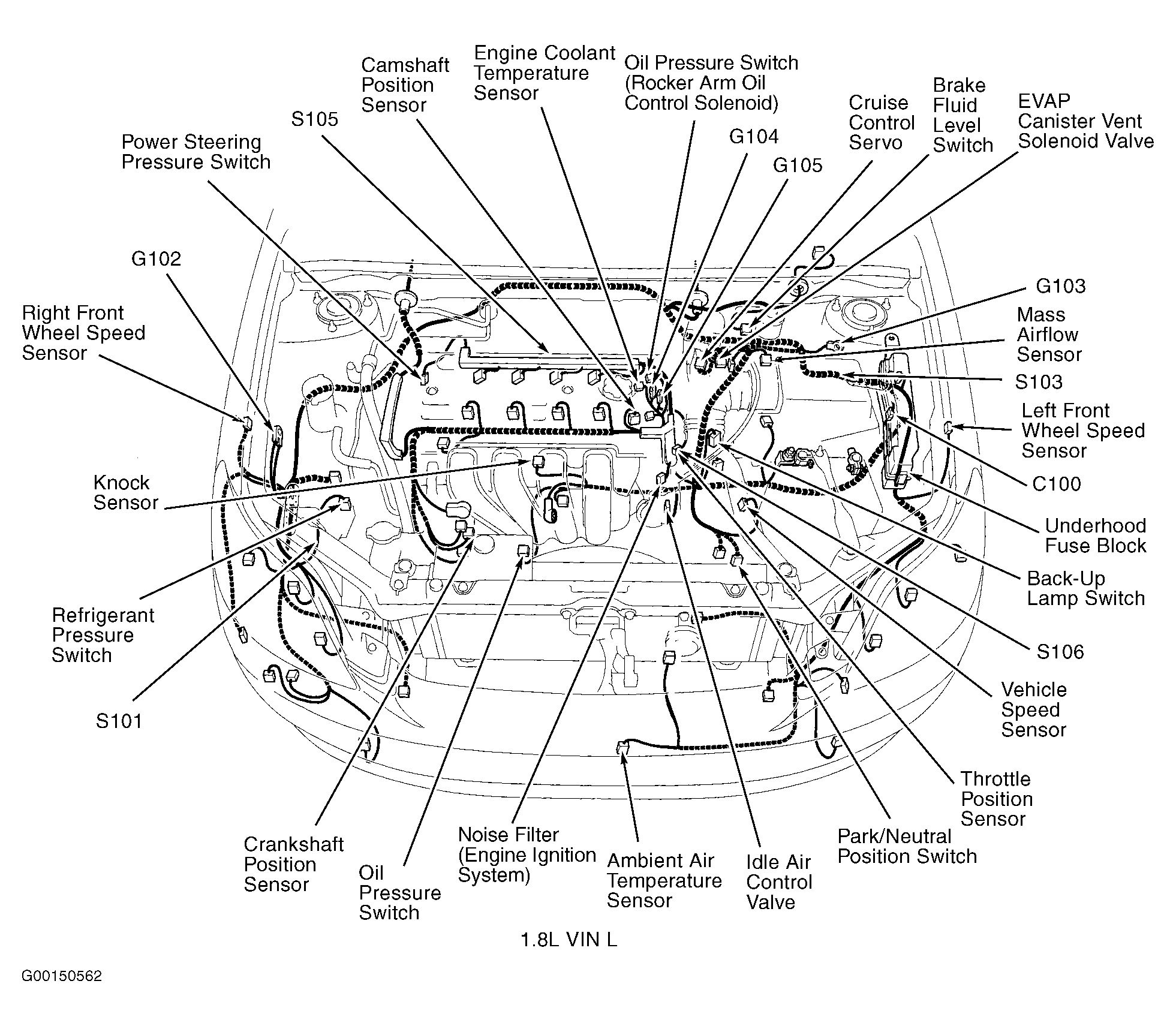

| Underhood Fuse Block (1.8L VIN L) | Left side of engine compartment, mounted to inner fender. See Figure . |

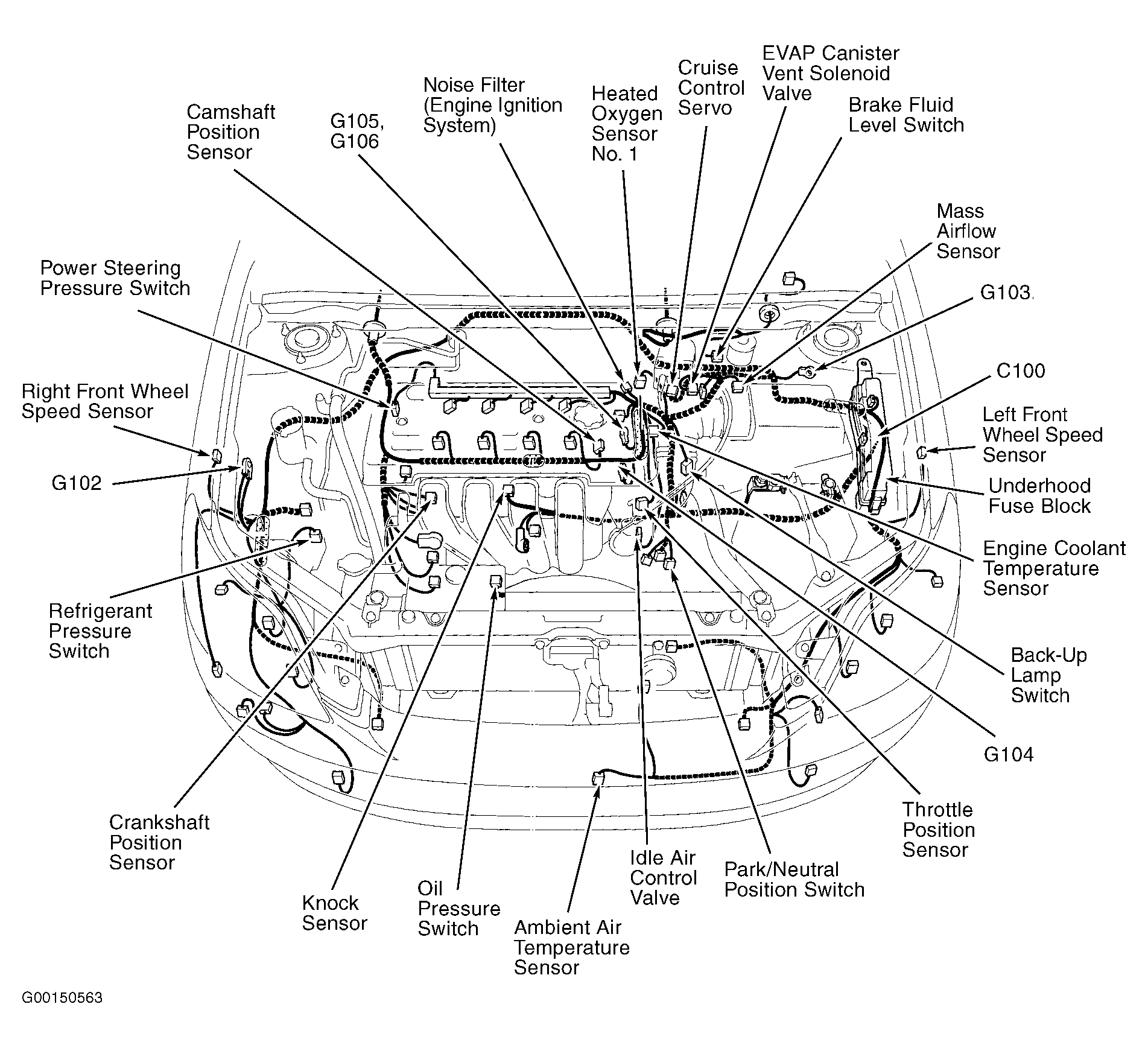

| Underhood Fuse Block (1.8L VIN 8) | Left side of engine compartment, mounted to inner fender. See Figure . |
