Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Accessory AC/DC Power Control Module | Under driver's seat. |
| Auxiliary Intake Air Control | At left side of engine compartment, attached to front of air cleaner assembly. |

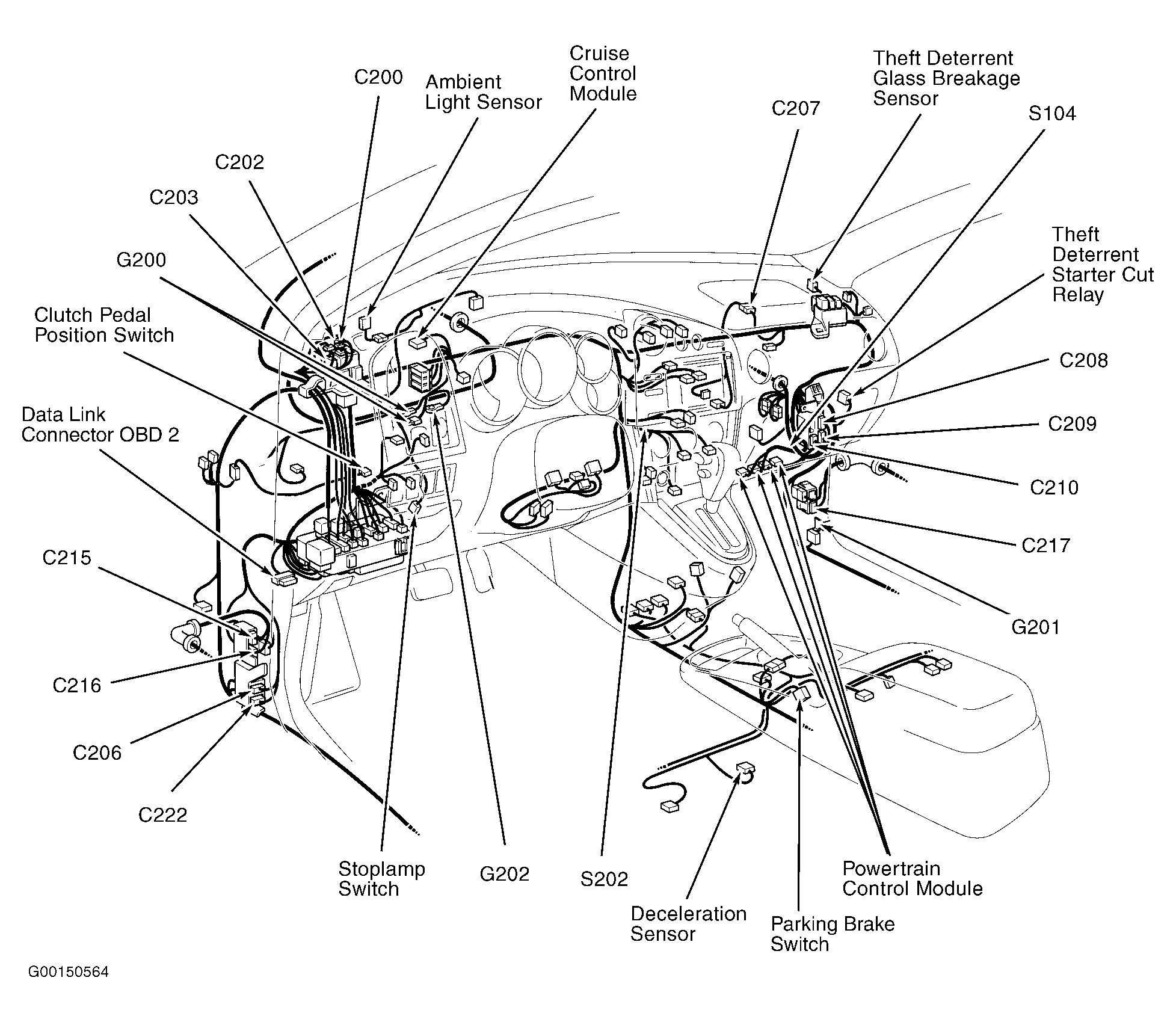

| Cruise Control Module | Behind left side of dash, at top side of steering column support bracket. See Figure . |
| Daytime Running Lamps Control Module | At right side of steering column, above brake pedal. |
| Inflatable Restraint Sensing & Diagnostic Module | At front center of console, below shifter assembly. |
| Multifunction Alarm Module | Behind left side of dash, mounted to dash fuse block. |
| Powertrain Control Module | Behind right side of dash. See Figure . |
| Shift Lock Control Module | Under center console, attached to right side of shift lever. |
| Sun Roof Control Module | At front center of roof headliner. |
| Theft Deterrent Module | Behind right side of dash. |
