Component Locations

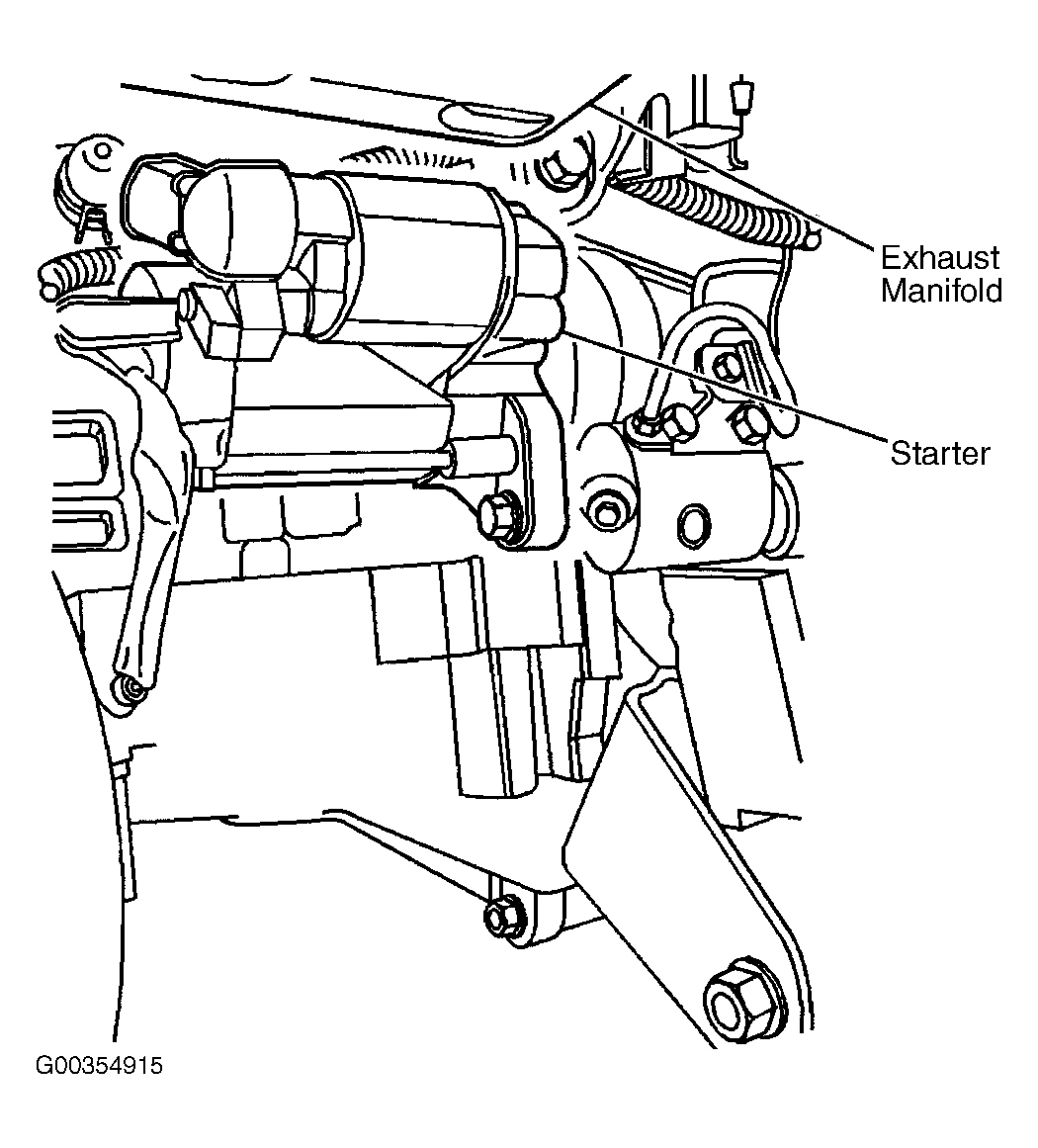

Fig 1: Locating Starter

Courtesy of GENERAL MOTORS CORP.

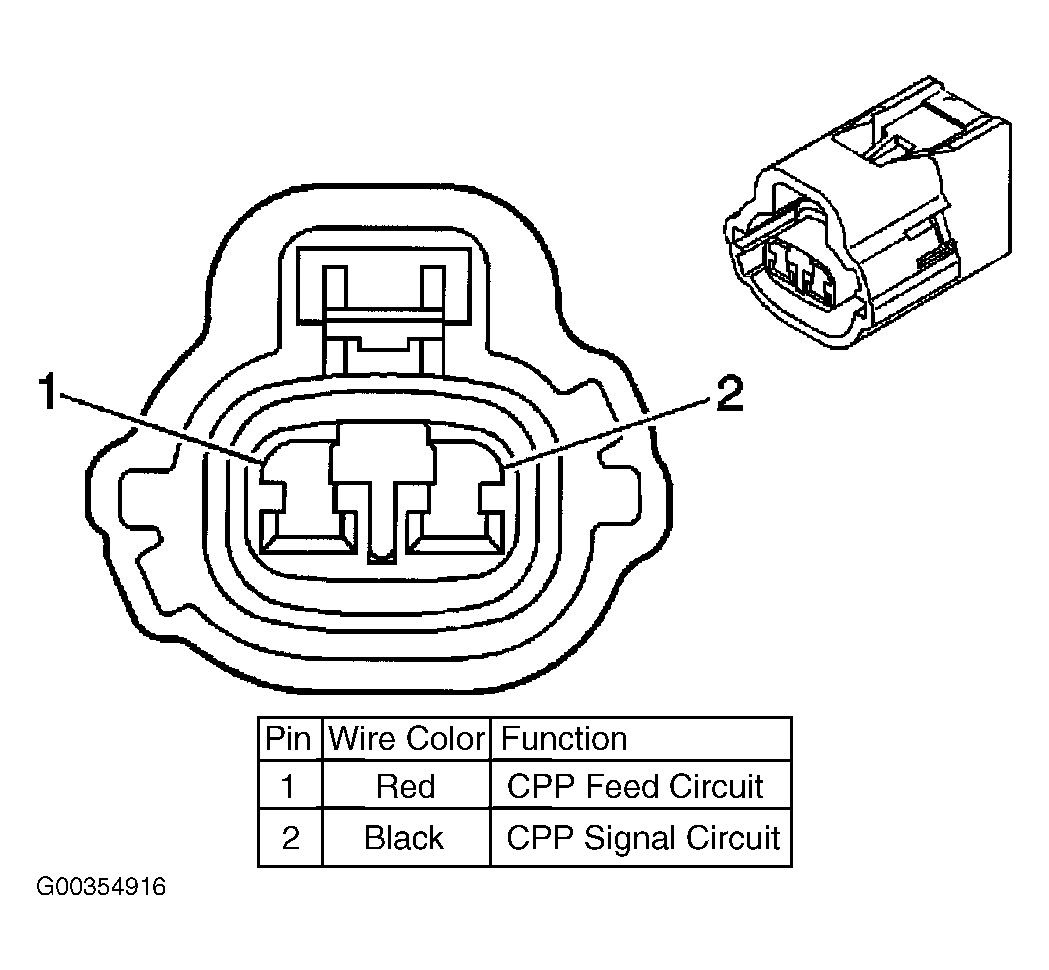

Fig 2: Identifying Clutch Pedal Position (CPP) Switch Terminals

Courtesy of GENERAL MOTORS CORP.

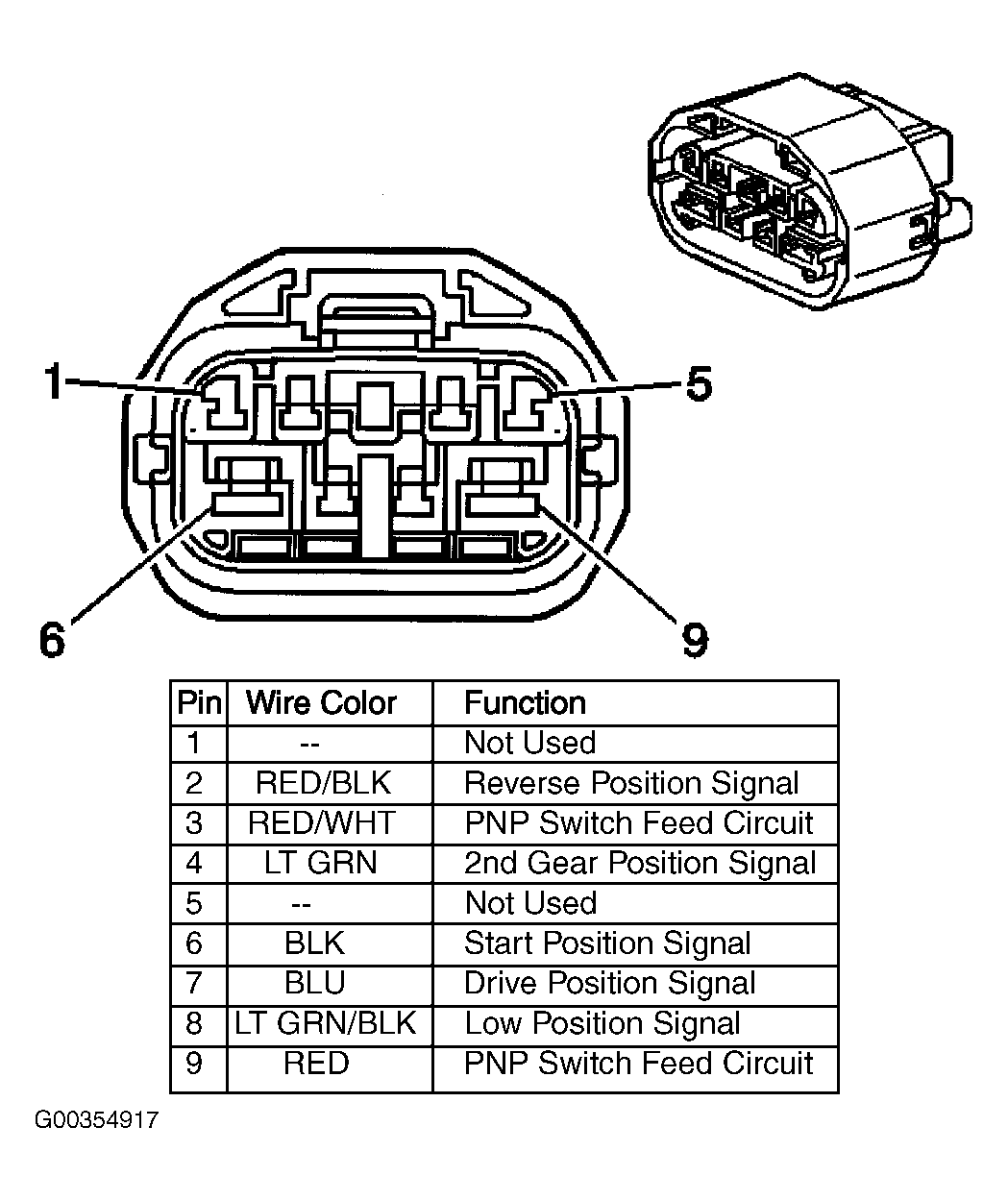

Fig 3: Identifying Park/Neutral Position (PNP) Switch Terminals

Courtesy of GENERAL MOTORS CORP.

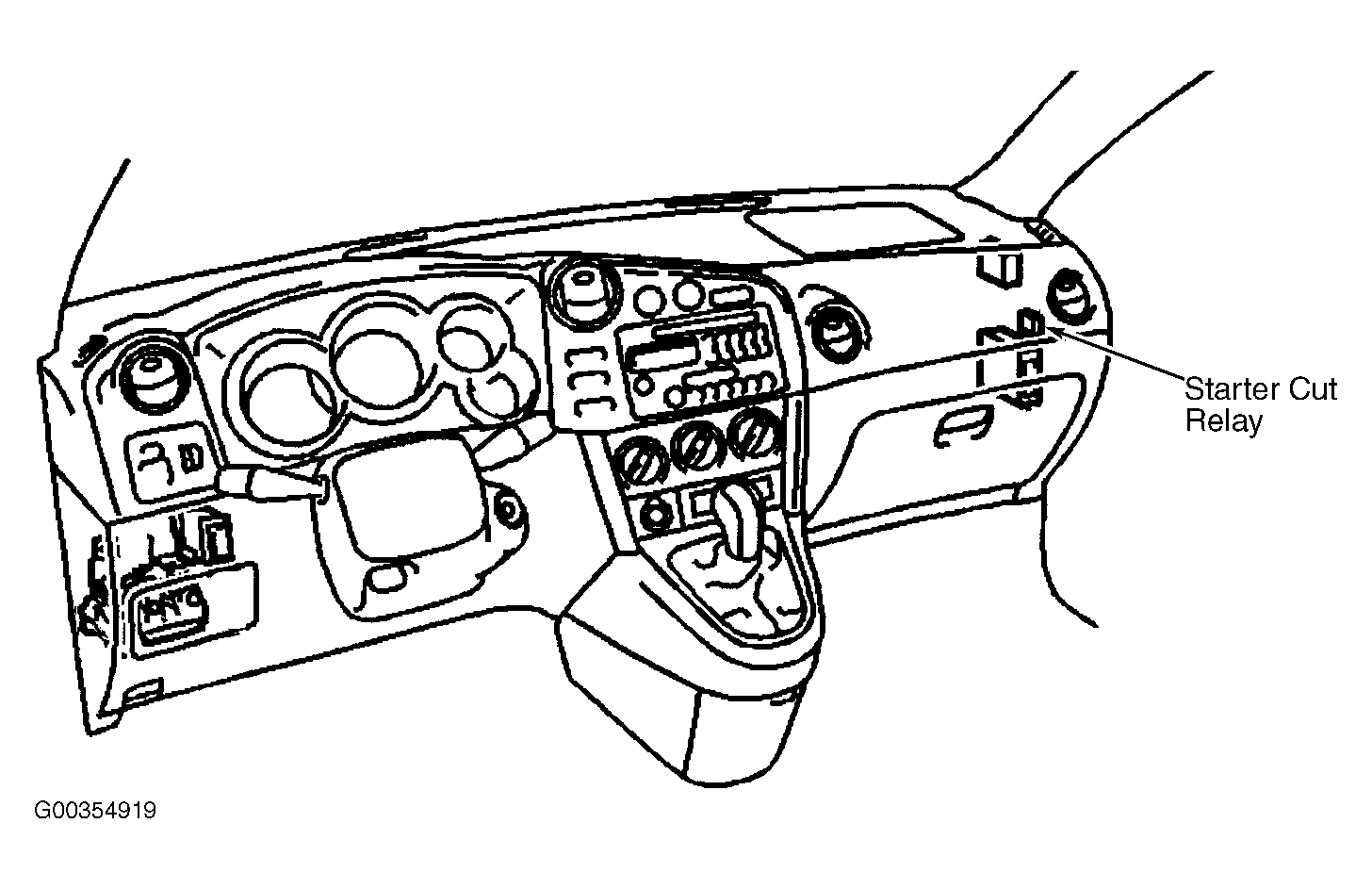

Fig 4: Locating Starter Cut Relay

Courtesy of GENERAL MOTORS CORP.

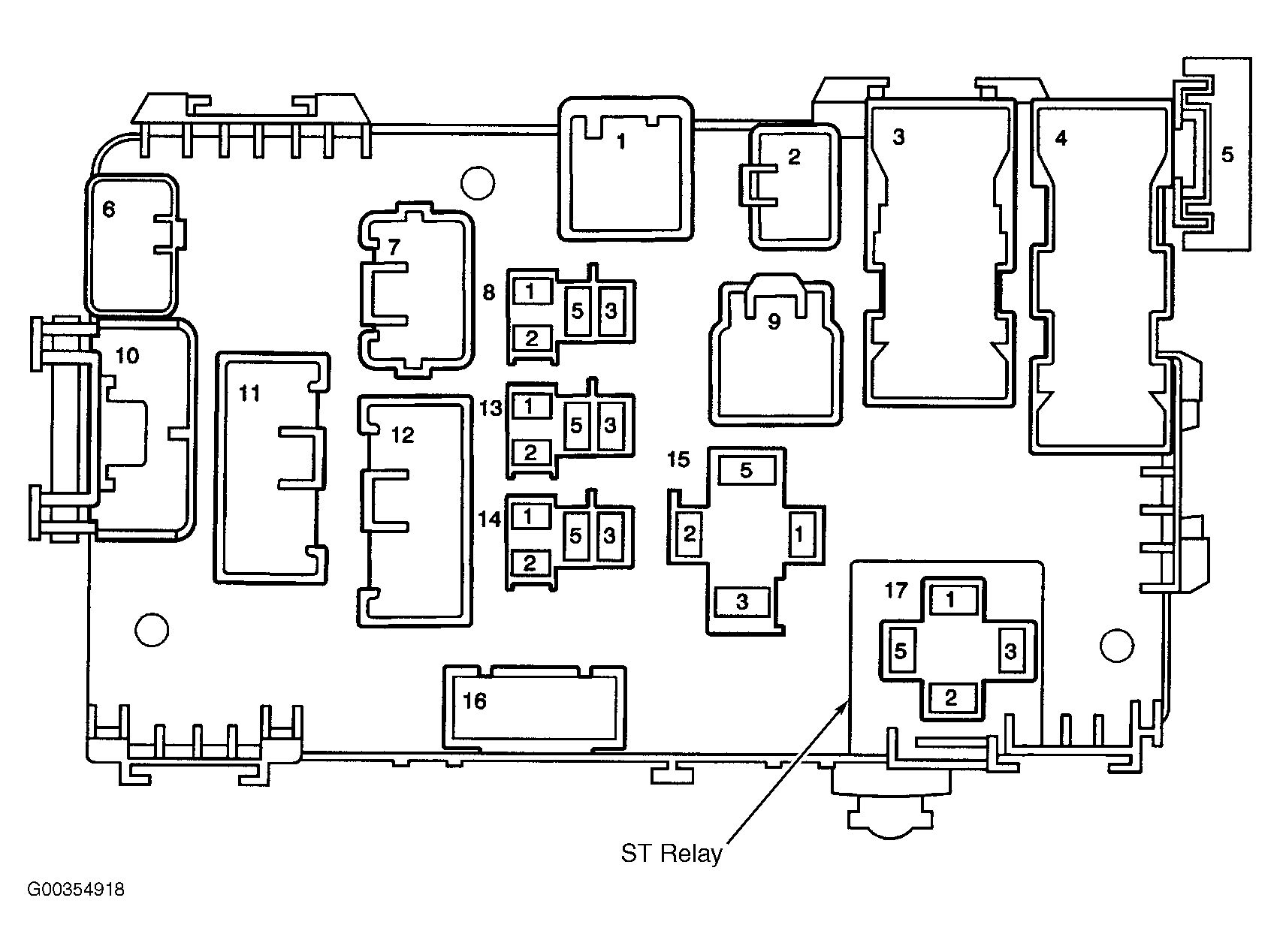

Fig 5: Locating ST Relay In Instrument Panel Fuse Block

Courtesy of GENERAL MOTORS CORP.
