Fuel Pressure Regulator: Installation

  1. To install, apply gasoline to NEW fuel pressure regulator "O" ring (1), and install onto fuel pressure regulator (2). See Figure .

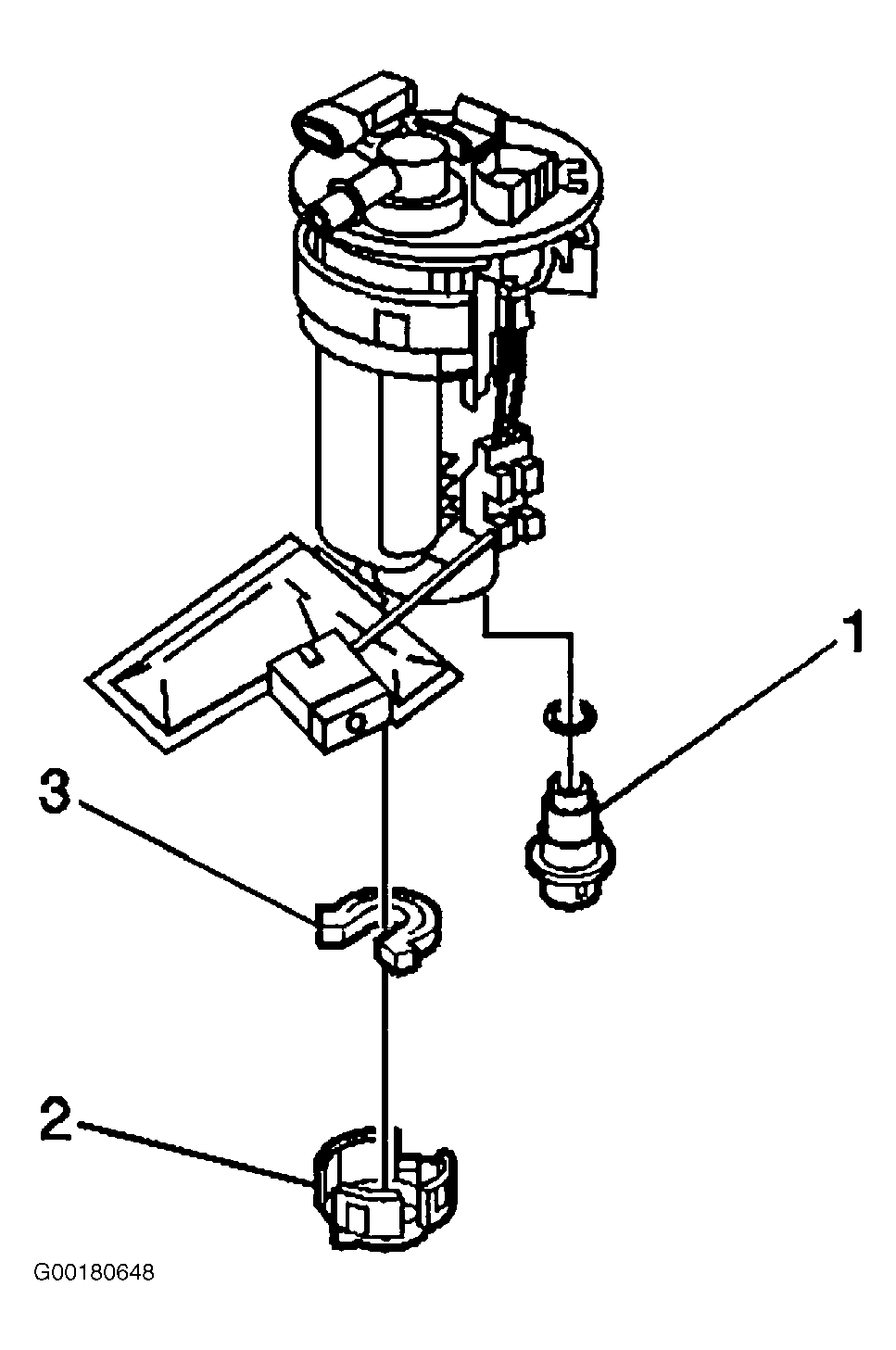

  2. Install the fuel pressure regulator (1) into the fuel sender assembly. See Figure .
  3. Position the lower cushion (3) on bottom of fuel pump, and install the lower cap (2) to the sender assembly until the cap locks into place. See Figure .
  4. Install the fuel sender assembly to the fuel tank. See FUEL SENDER ASSEMBLY  .
