Wheel Alignment Specifications (AWD)

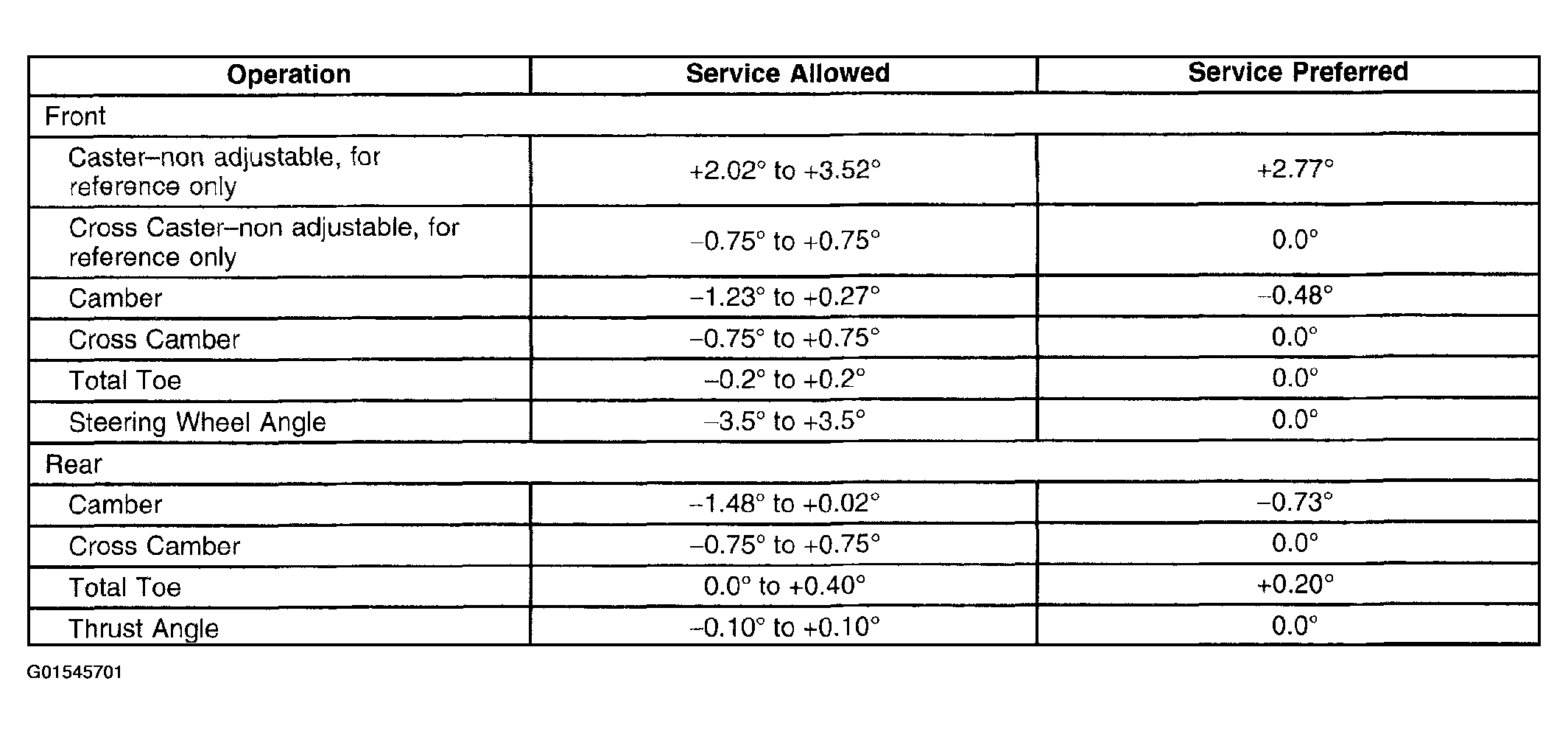

Fig 1: Wheel Alignment Specifications (AWD)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
