Power Steering Gear Disassembled View

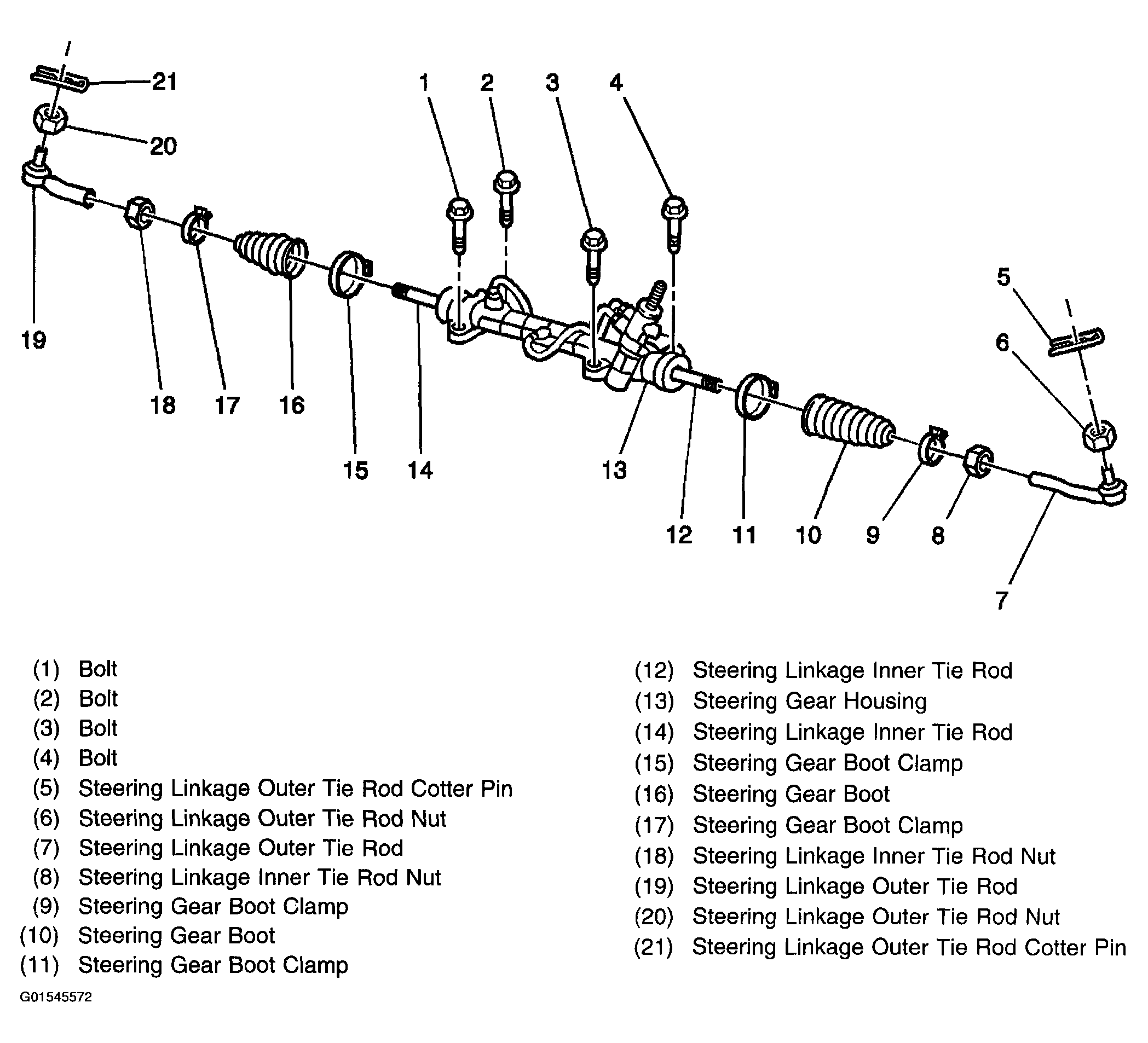

Fig 1: Exploded View Of Power Steering Gear (FWD)
G01545572Courtesy of GENERAL MOTORS CORP.

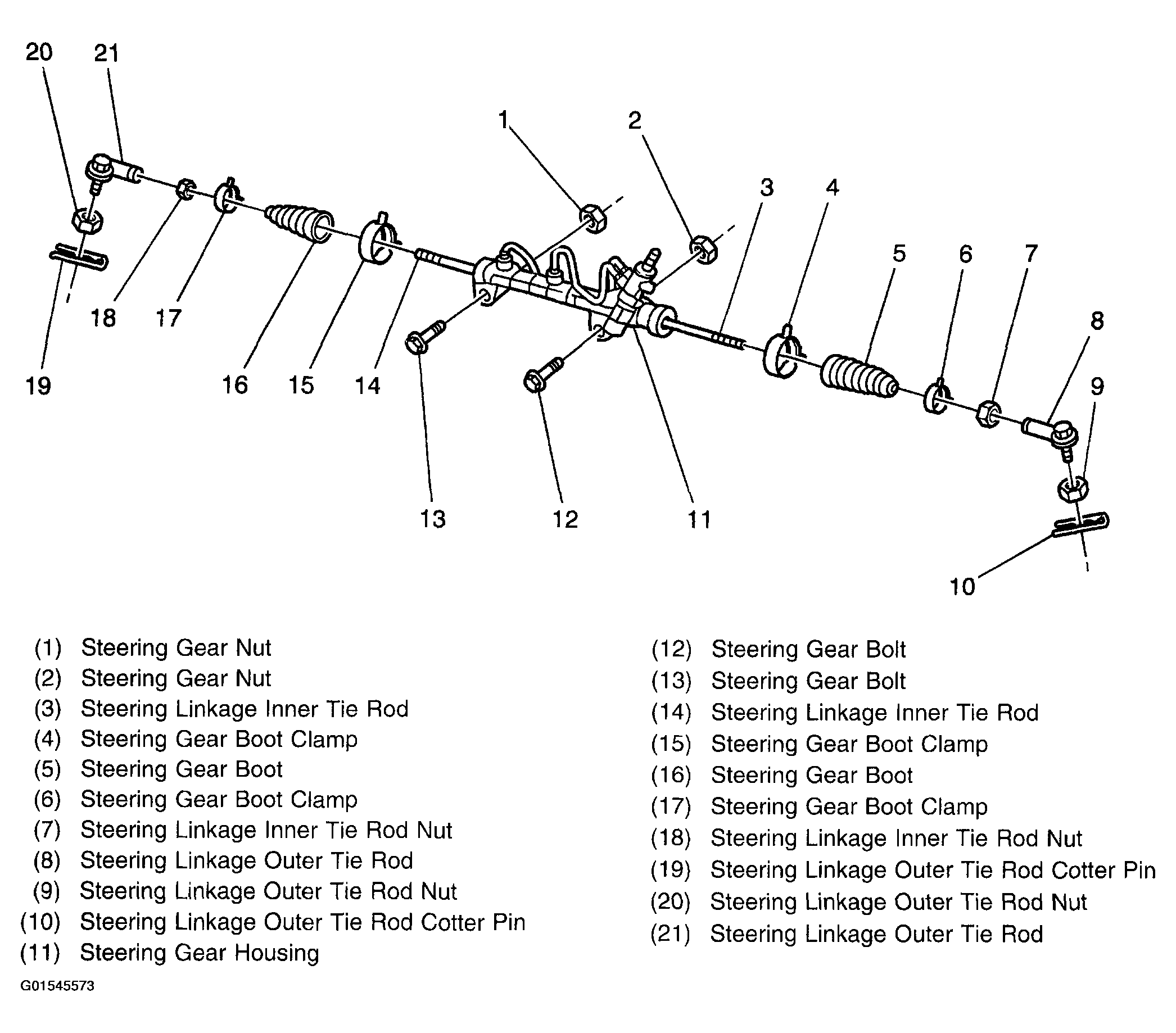

Fig 2: Exploded View Of Power Steering Gear (AWD)
G01545573Courtesy of GENERAL MOTORS CORP.
