Automatic Transmission External Component Connector End Views

Fig 1: Identifying Terminals Of Overdrive Switch

Courtesy of GENERAL MOTORS CORP.

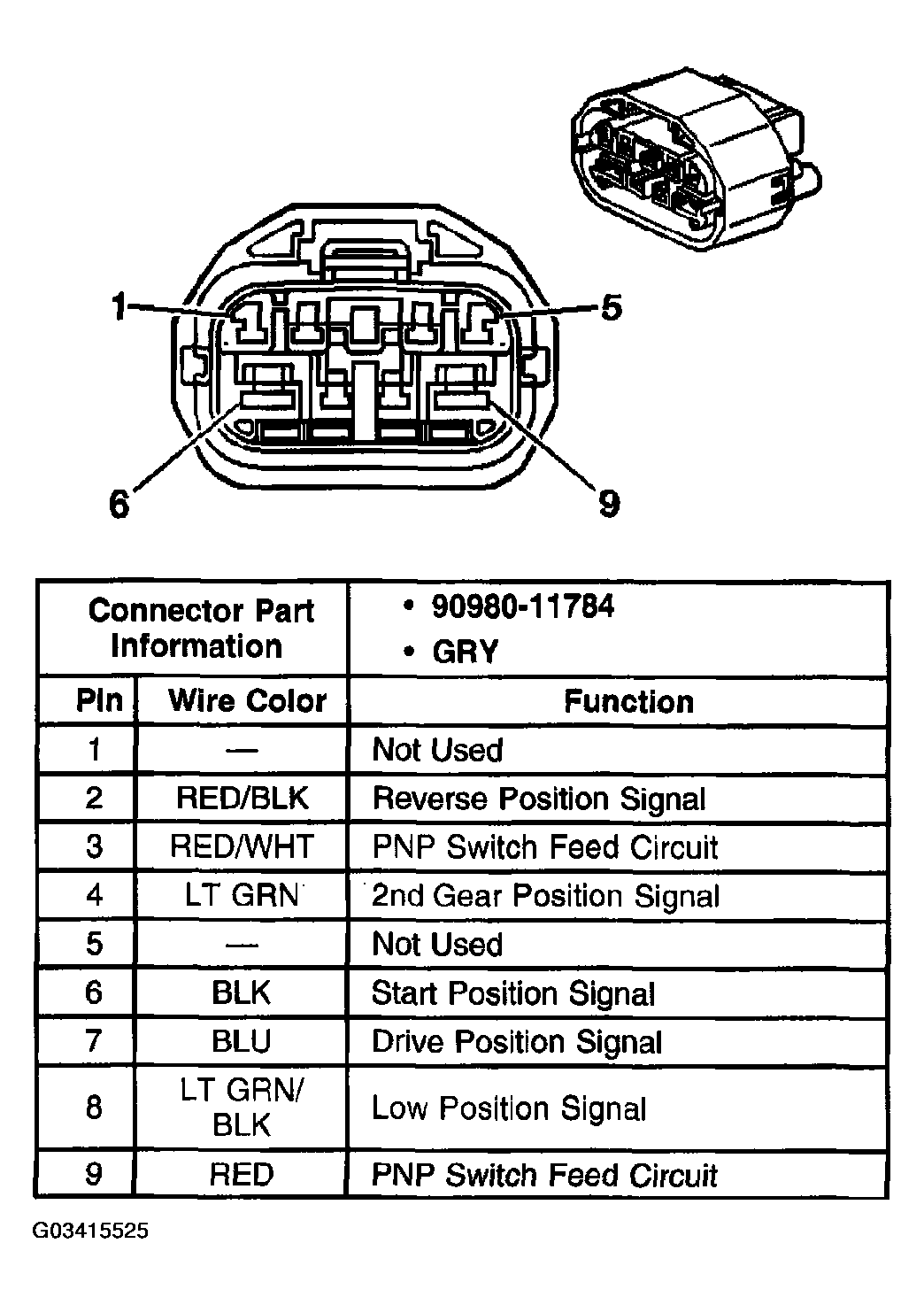

Fig 2: Identifying Terminals Of Park/Neutral Position (PNP) Switch

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying Terminals Of Shift Lock Control Module

Courtesy of GENERAL MOTORS CORP.

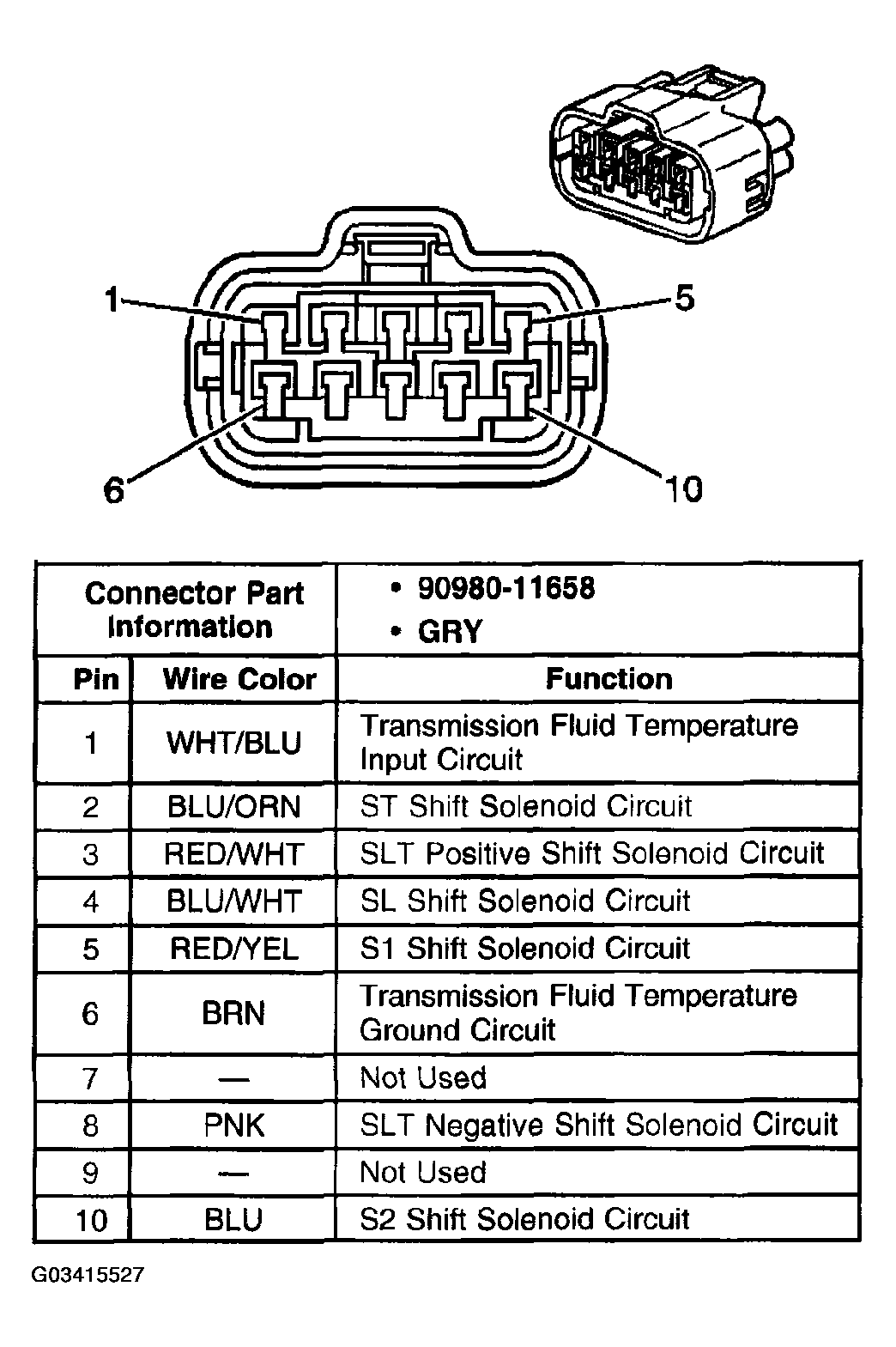

Fig 4: Identifying Terminals Of Transmission Connector

Courtesy of GENERAL MOTORS CORP.

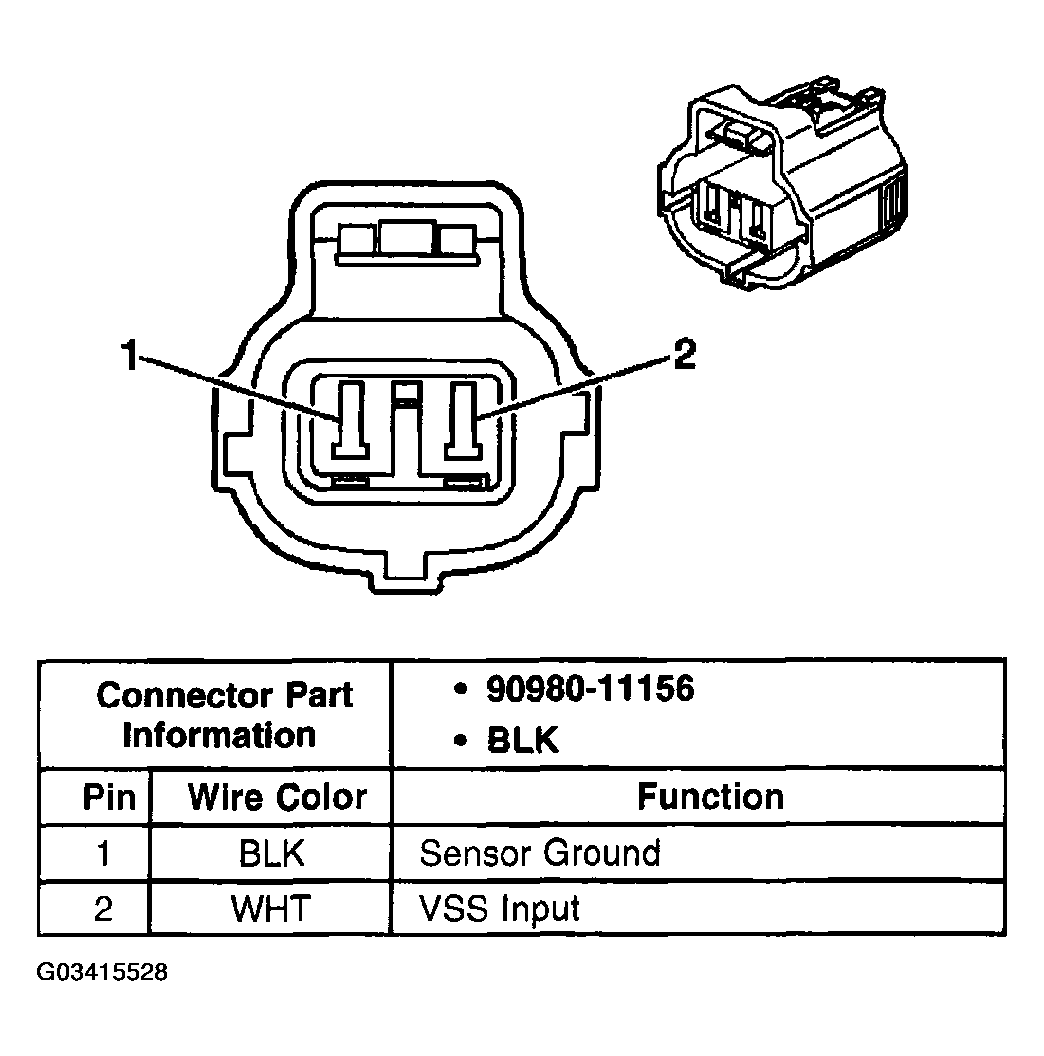

Fig 5: Identifying Terminals Of Vehicle Speed Sensor (VSS)

Courtesy of GENERAL MOTORS CORP.
