Fluid Capacity Specifications

FLUID CAPACITY SPECIFICATIONS

Application Specification
Metric English
Fluid Recommended ATF Type T-IV
Dry Fill 7.3 liters 7.75 qts
Drain and Refill 3.1 liters 3.25 qts

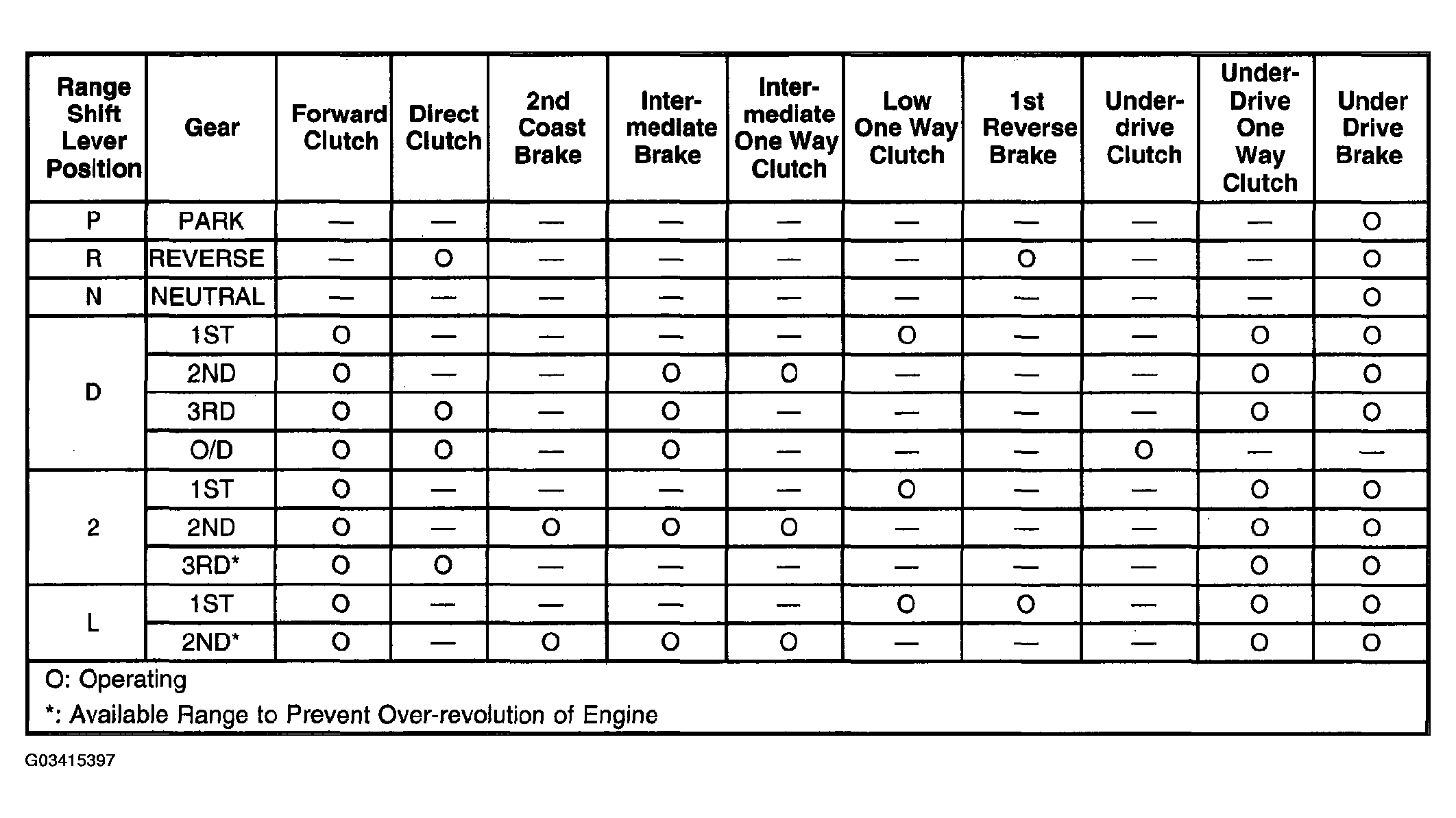

Fig 1: Range Reference Chart
G03415397Courtesy of GENERAL MOTORS CORP.
