Back View of the Connector C3
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Back View of the Connector C3

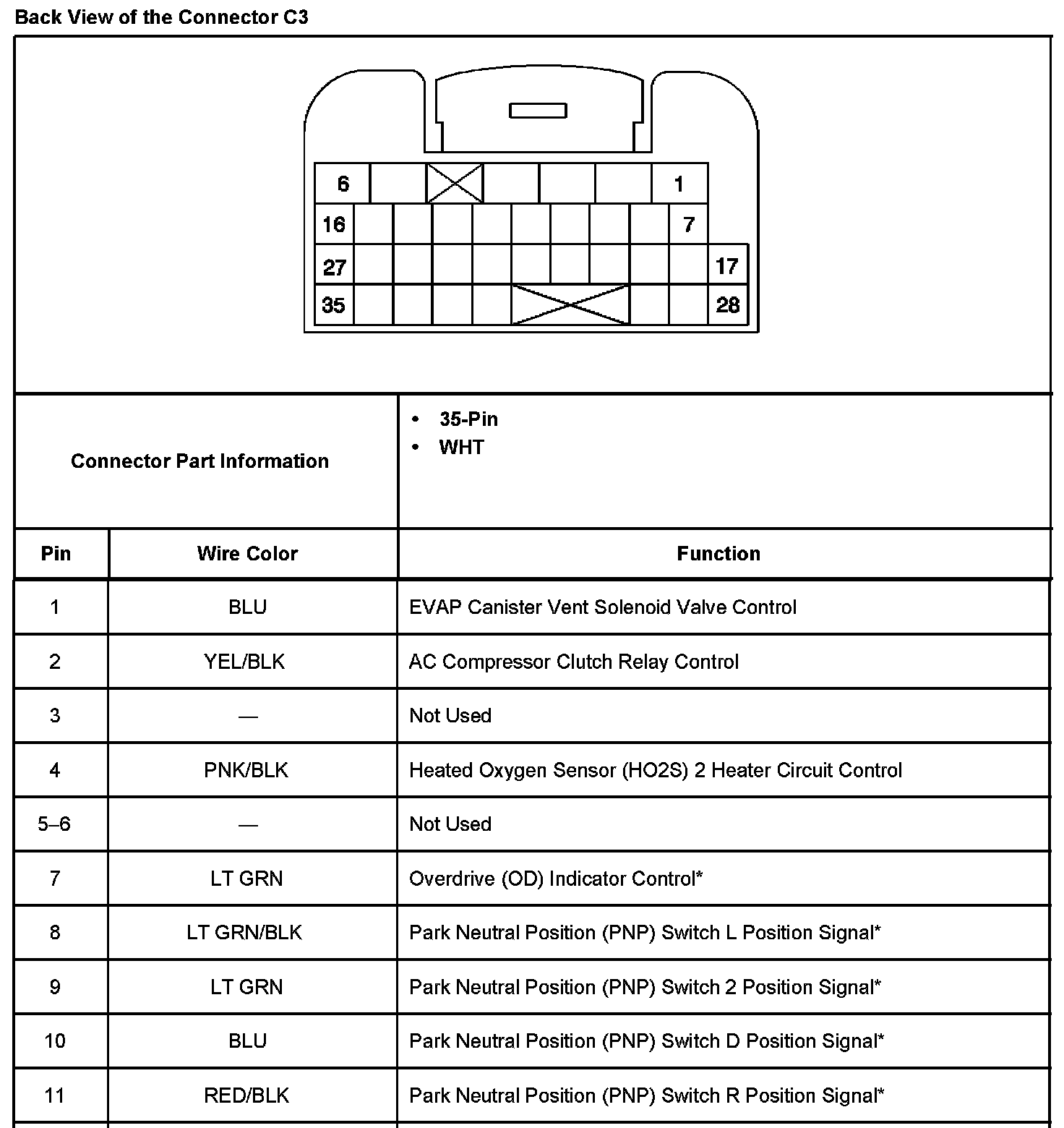

Back View Of The Connector C3 Part 1:
Back View Of The Connector C3 Part 2:
