Alignment

Trim Height Specifications:



Suspension Fastener Tightening Specifications:

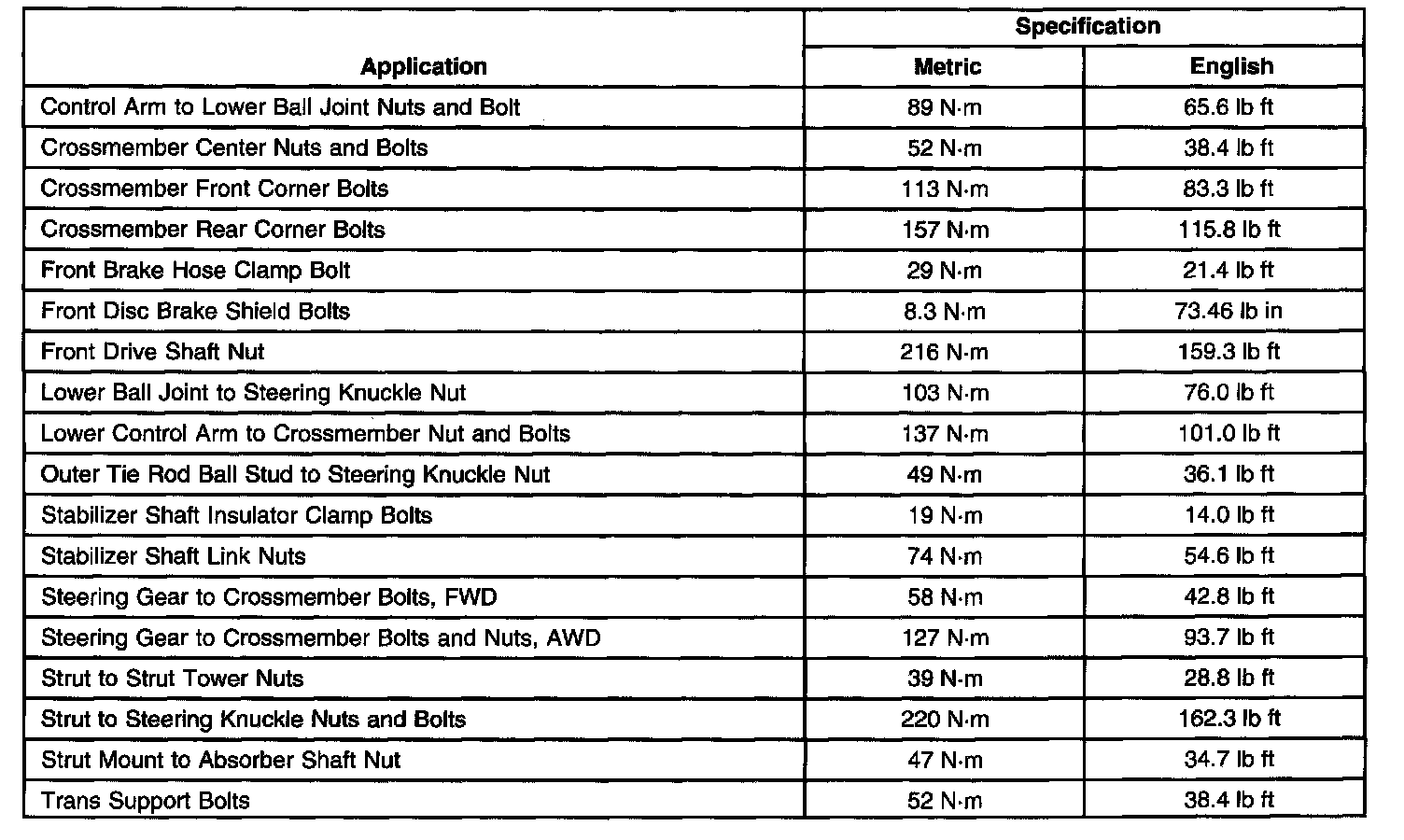

Front Suspension:



Rear Suspension:
