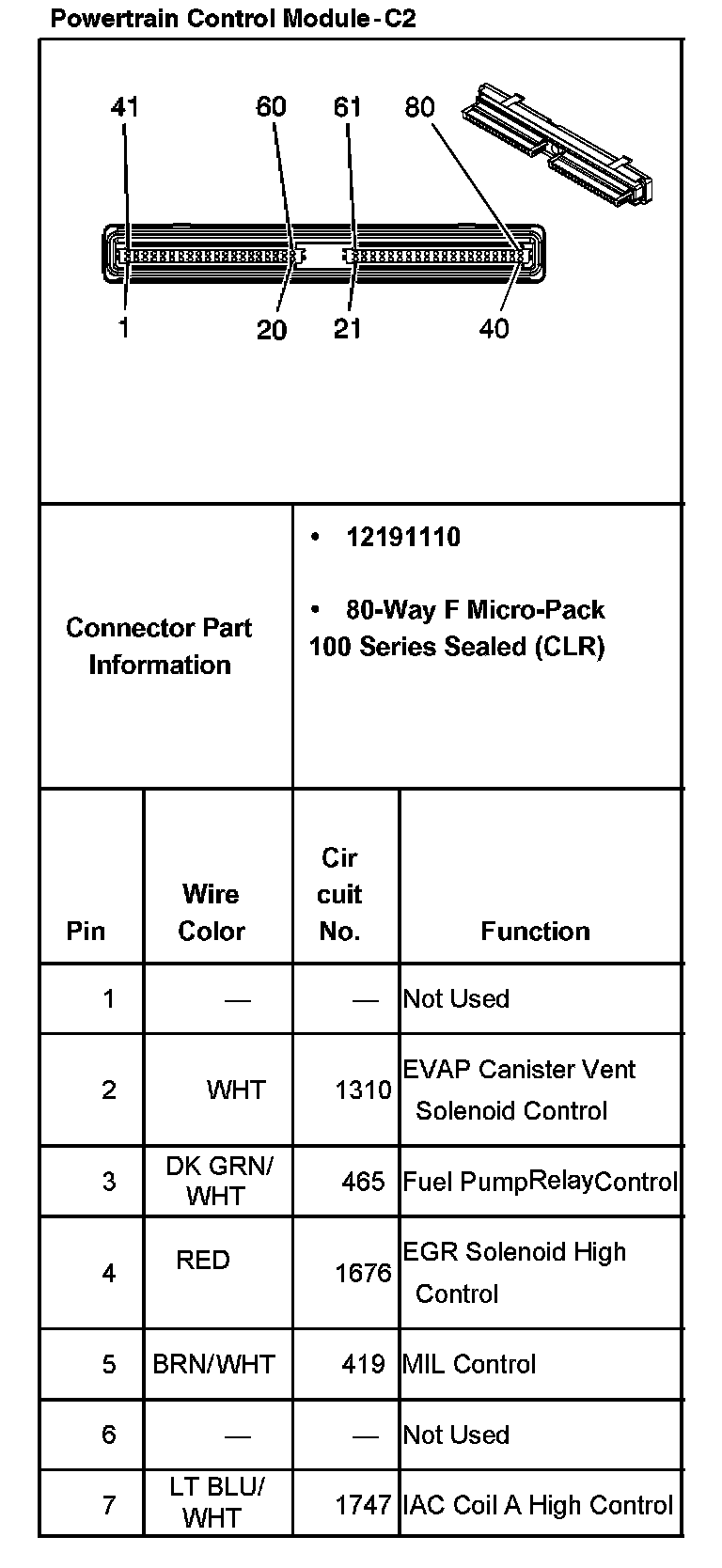

Powertrain Control Module - C2

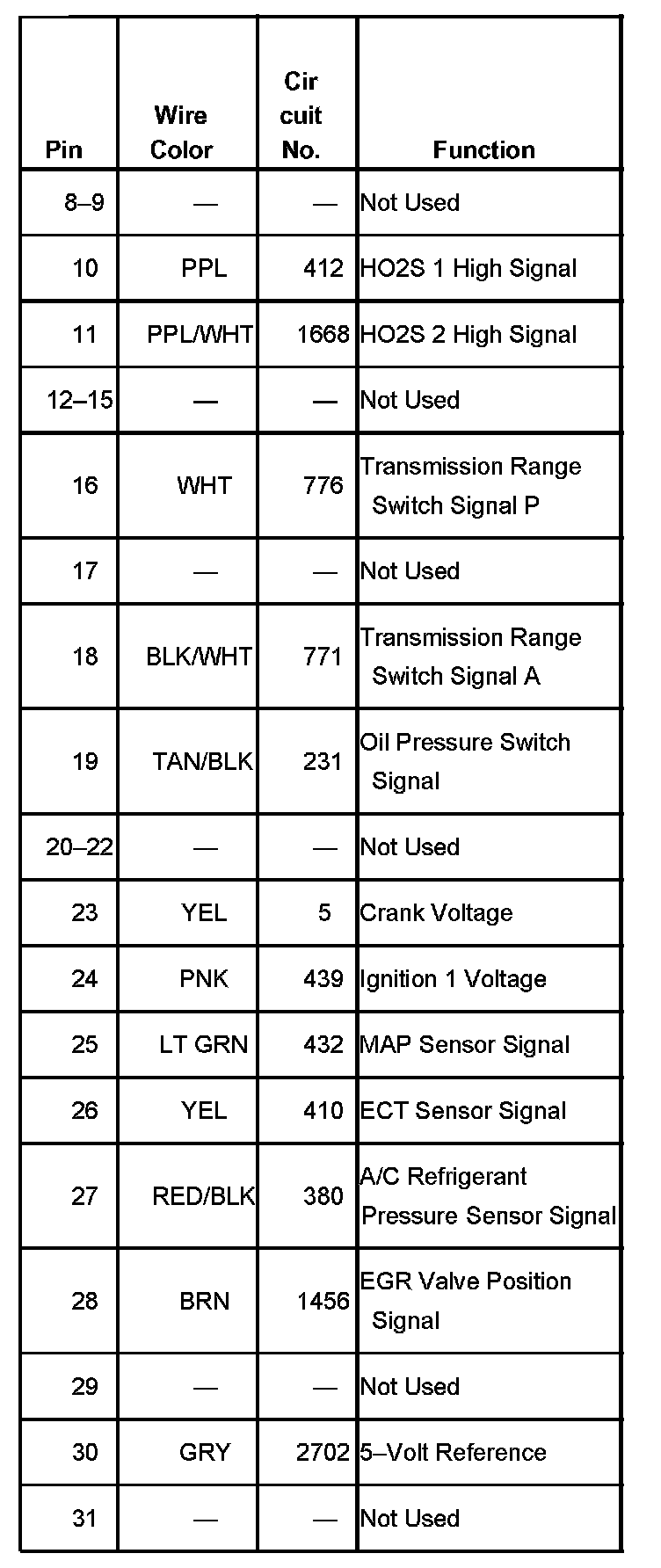

Powertrain Control Module - C2 Part 1:

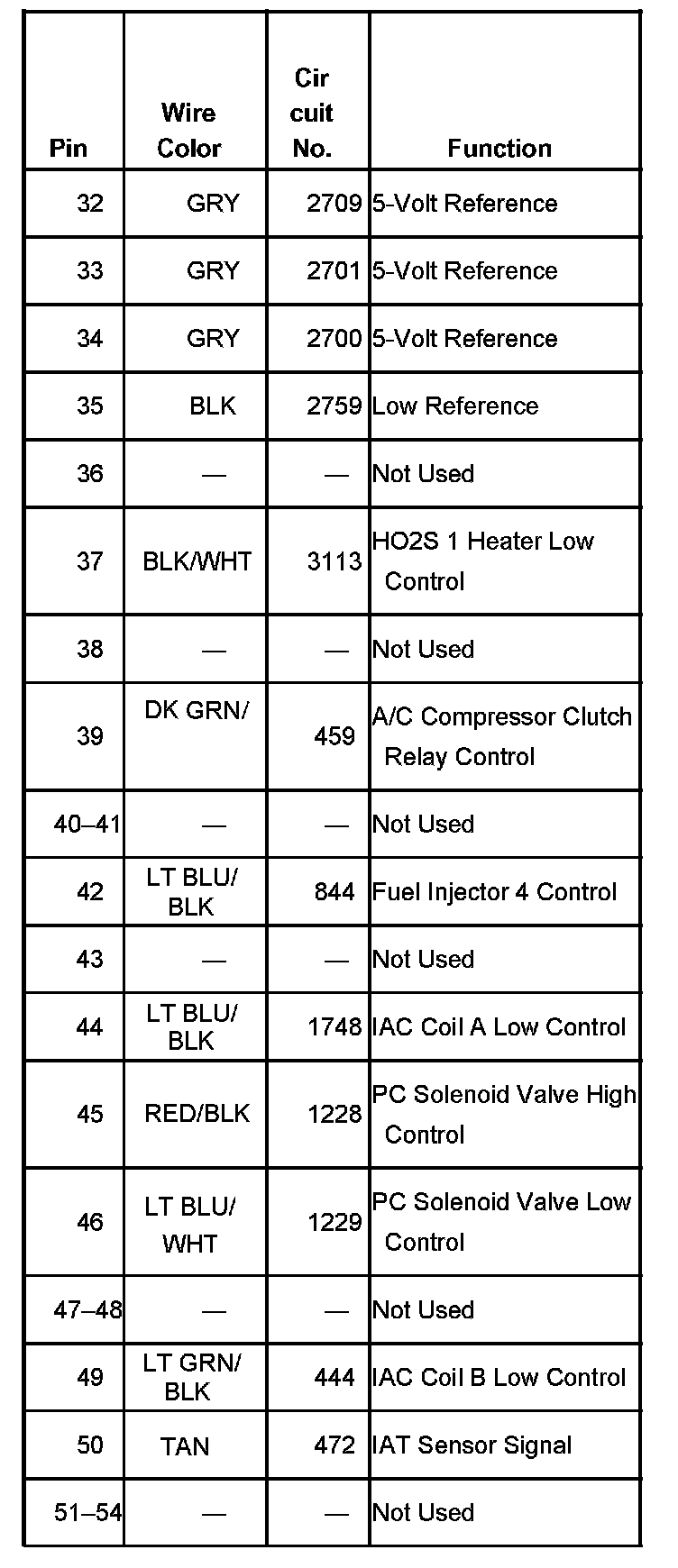

Powertrain Control Module - C2 Part 2:

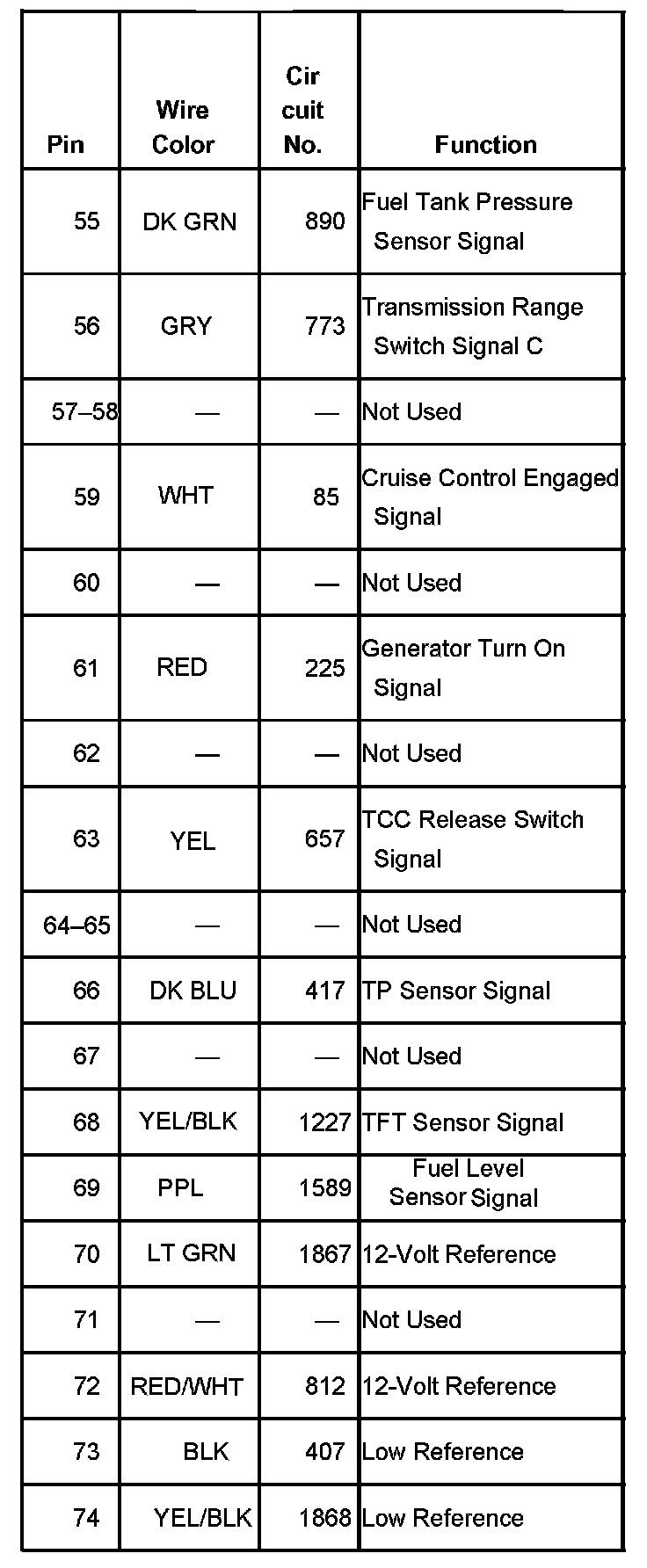

Powertrain Control Module - C2 Part 3:

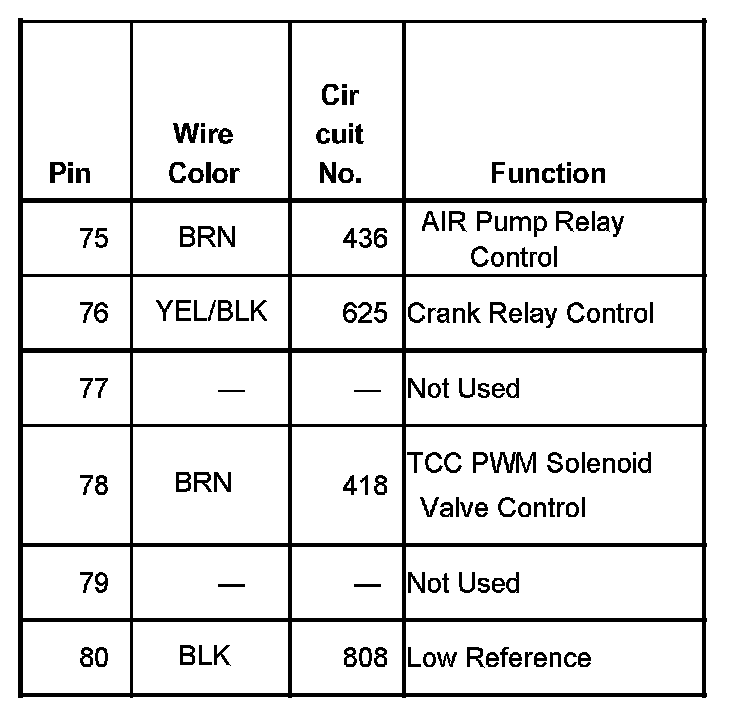

Powertrain Control Module - C2 Part 4:



Powertrain Control Module - C2 Part 5:
