Transmission Control Module Replacement

Module, Transmission Control (TCM) - Replace

Removal Procedure
1. Turn the ignition OFF.

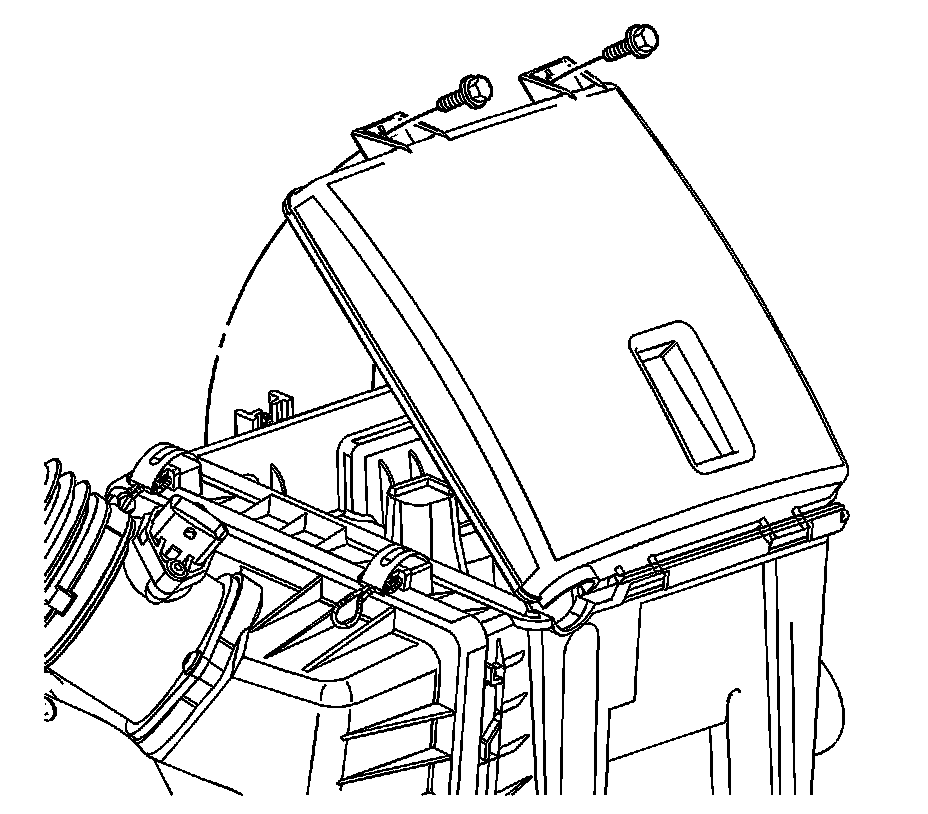

2. Remove the air cleaner upper cover.

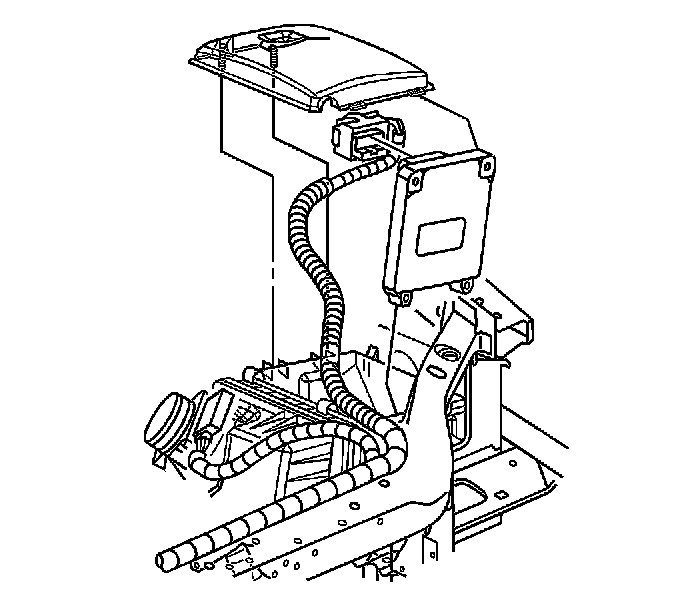

3. Remove the Transmission Control Module (TCM)) from the air cleaner.
4. Disconnect the transmission control module electrical connectors from the TCM.

Installation Procedure





1. Connect the transmission control module electrical connectors to the TCM.
2. Install the TCM to the air cleaner.





3. Install the air cleaner upper cover.
4. Program the TCM. Refer to Transmission Control Module Programming Procedure Programming and Relearning
