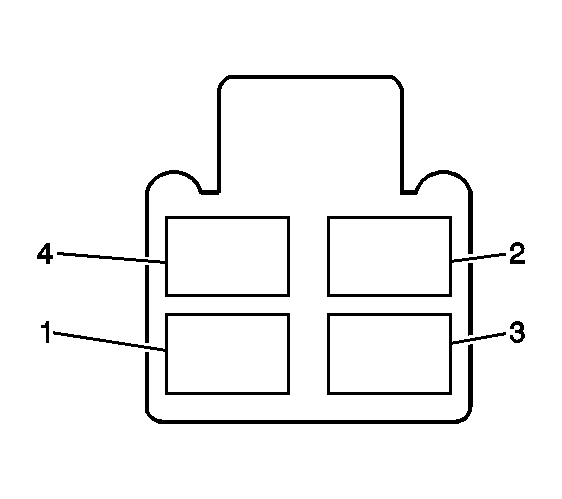

Blower Motor Control Processor Connector End View
Blower Motor Control Processor Connector End View
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
|
| Pin |
Wire Color |
Circuit No. |
Function |
| 1 |
RED |
442 |
Battery Positive Voltage |
| 2 |
ORN |
761 |
Blower Motor Speed Signal |
| 3 |
GRY/BLK |
754 |
Blower Motor Speed Control |
| 4 |
BLK |
150 |
Ground |
