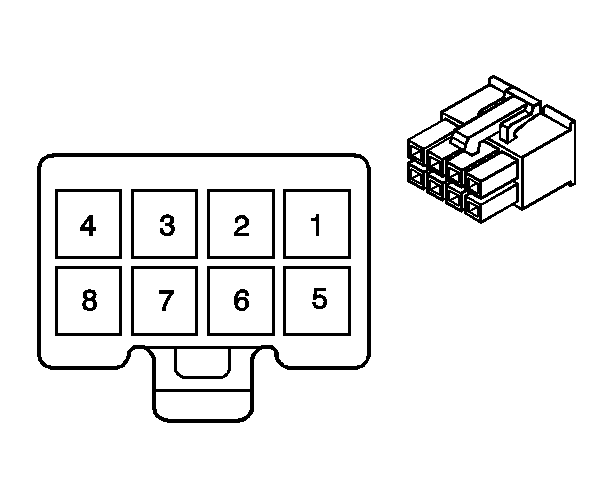

Sunroof Module C2 Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		39-01-2080 8-Way F Molex (WHT)
Pin	Wire Color	Circuit No.	Function
1	DK BLU	133	Sunroof Limit Switch Low Reference
2	YEL	131	Sunroof Limit Switch Range Signal
3-4	-	-	Not Used
5	DK BLU	128	Sunroof Switch Low Reference
6	BRN	100	Sunroof Switch Open Signal
7	ORN	110	Sunroof Switch Close Signal
8	RED	132	Sunroof Limit Switch Soft Stop Signal
