Retained Accessory Power (RAP) Schematics

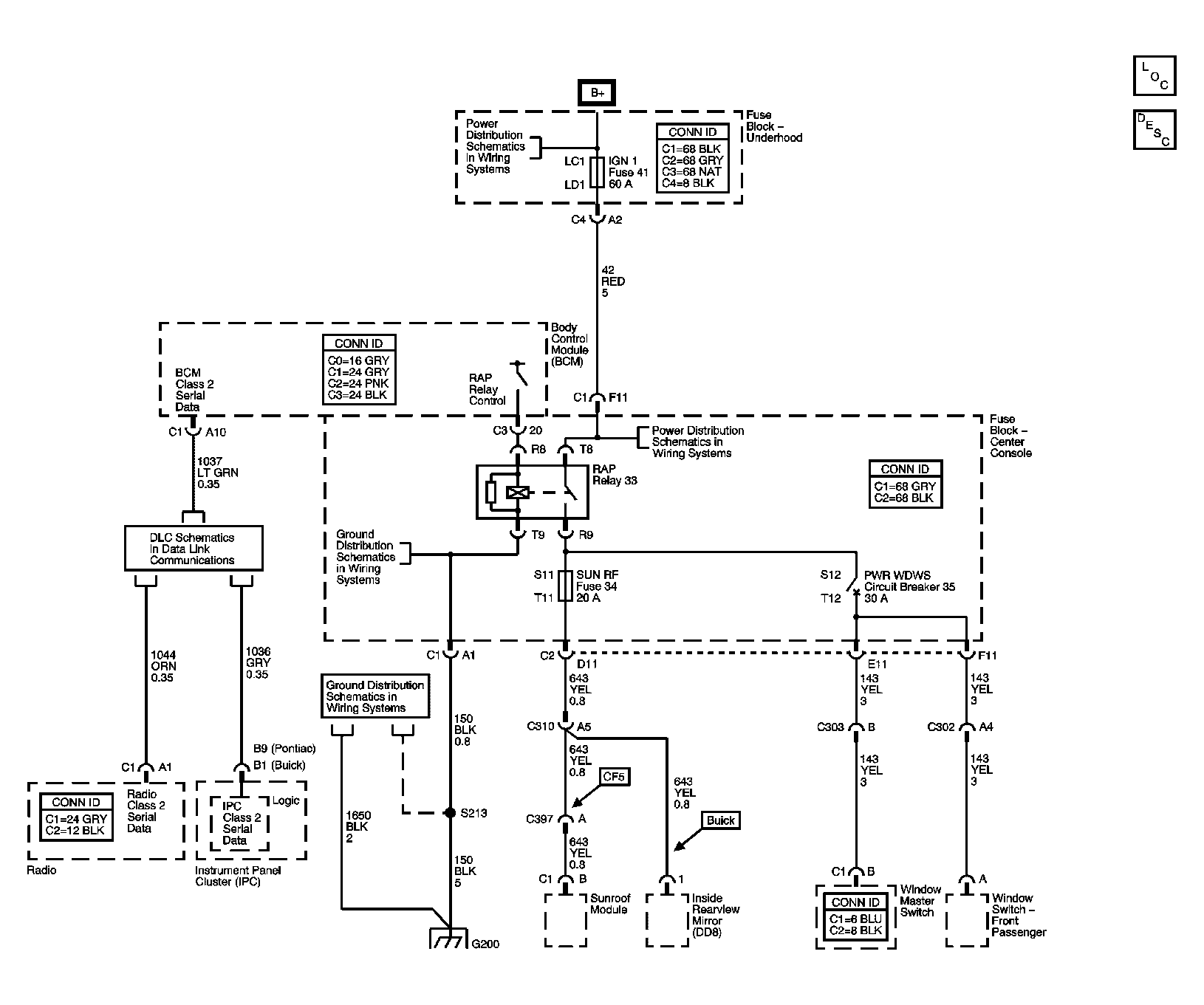

Fig 1: Retained Accessory Power (RAP) Schematic
GM629232Courtesy of GENERAL MOTORS CORP.
