Fuel Tanks (Without Feedback Fuel System): Notes
WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

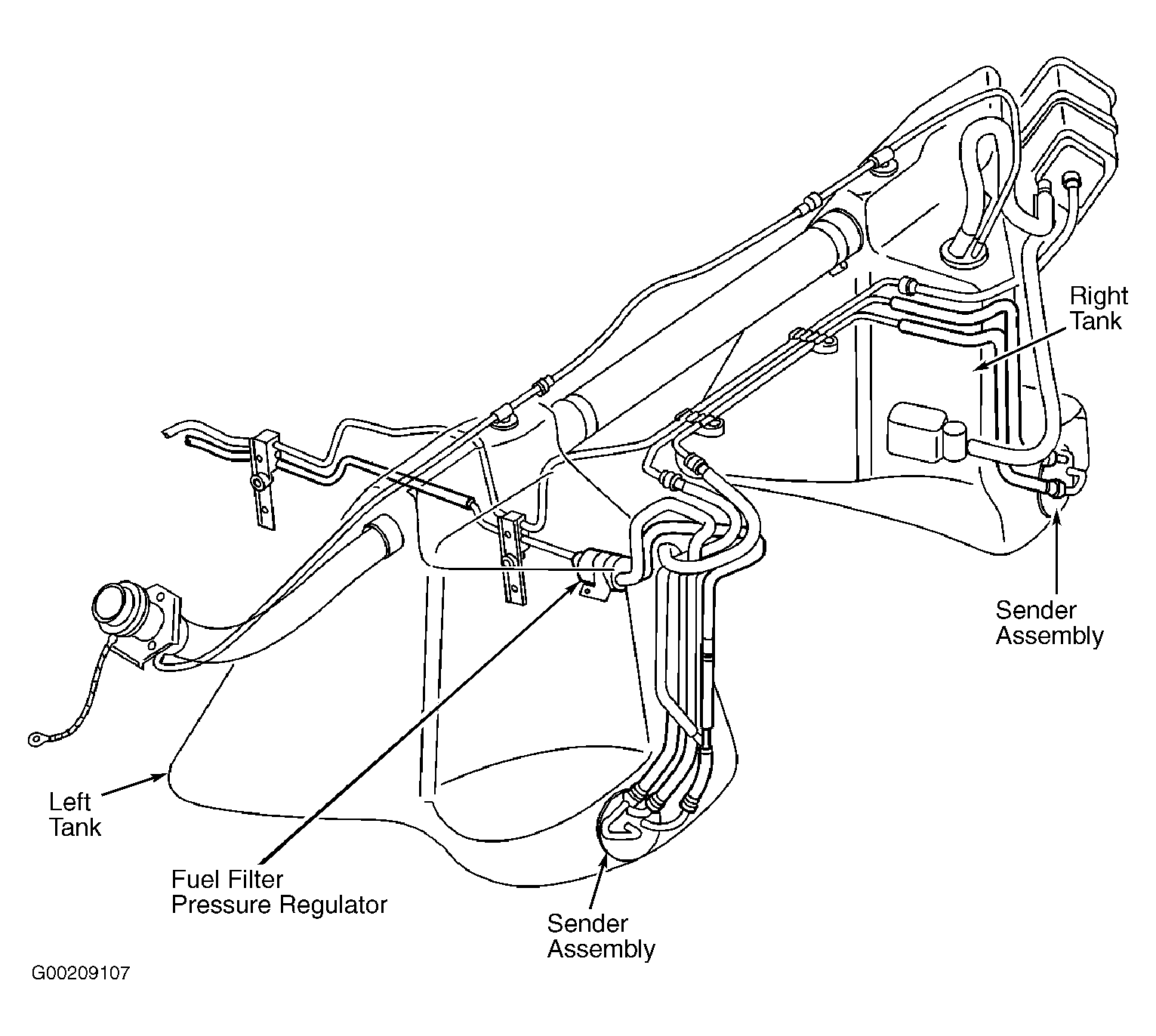

On fuel tanks without Feedback Fuel System (FFS), the fuel sender is located in the lower portion of tank. See Fig 1. On fuel tanks with FFS, the fuel sender is located on top of tank. For removal of fuel tanks with FFS, see FUEL TANKS (WITH FEEDBACK FUEL SYSTEM) .
