Entertainment Component Views

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

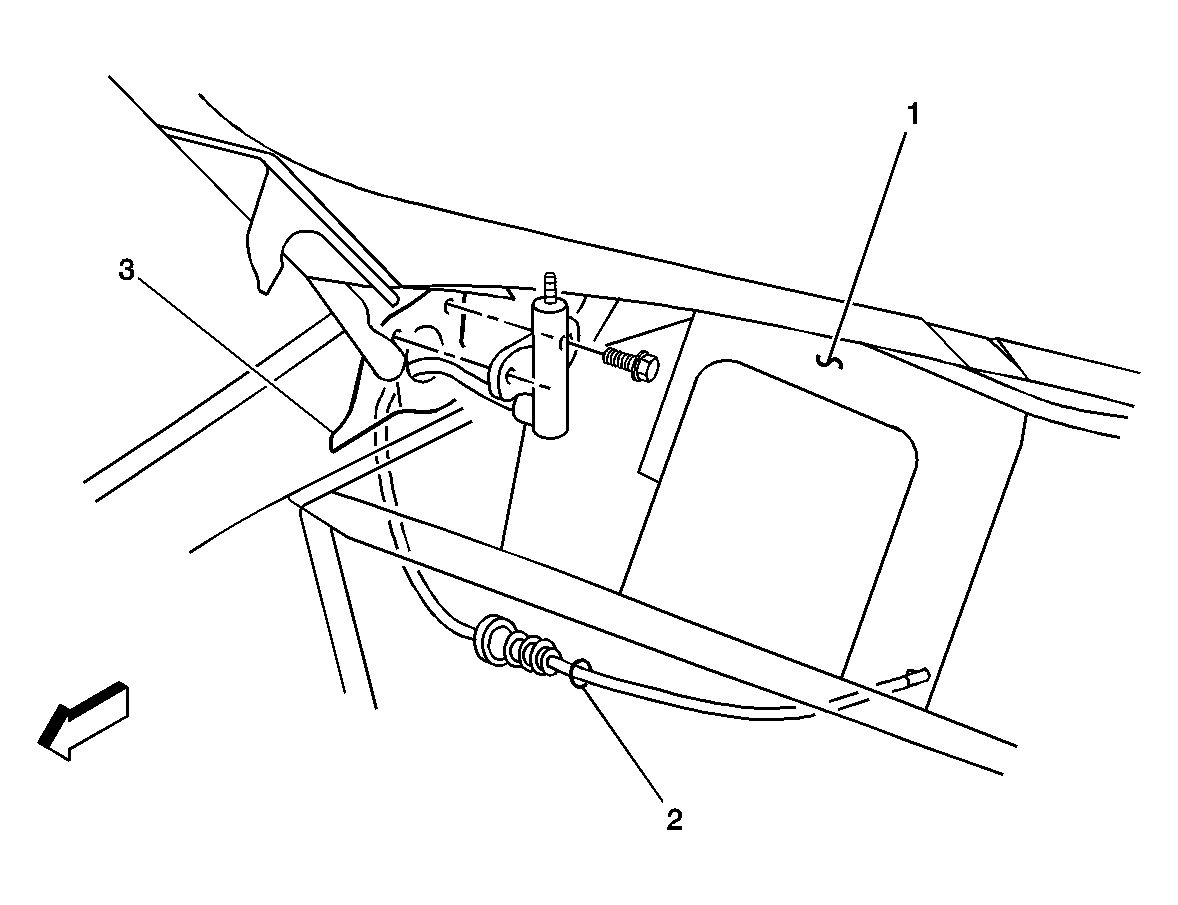

Fig 1: Radio Antenna Cable

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cowl
2	Radio Antenna Cable
3	Hood Hinge Bracket, RH Side

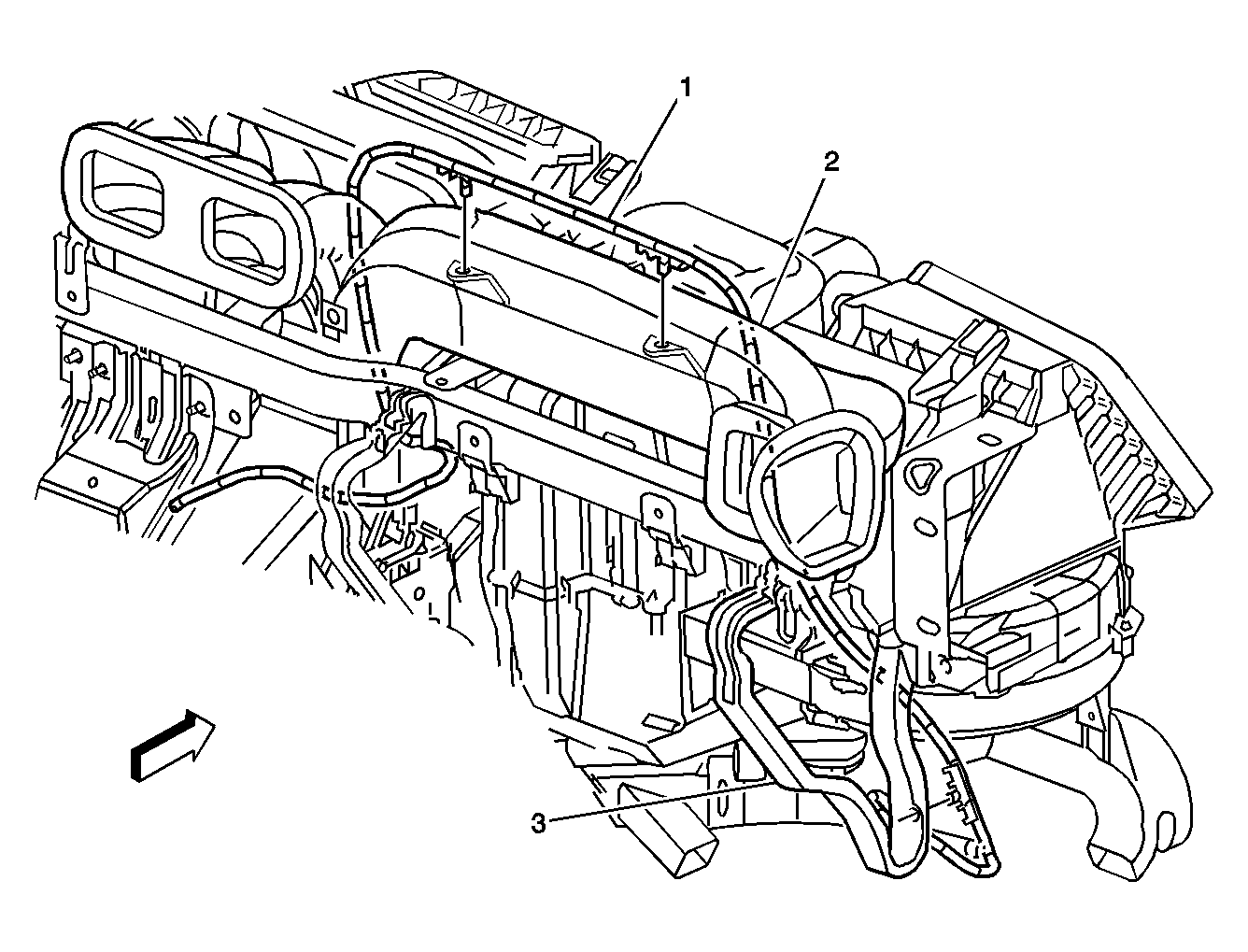

Fig 2: Radio Antenna Cable Routing

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio Antenna Cable
2	Air Distributor Duct
3	Instrument Carrier Support

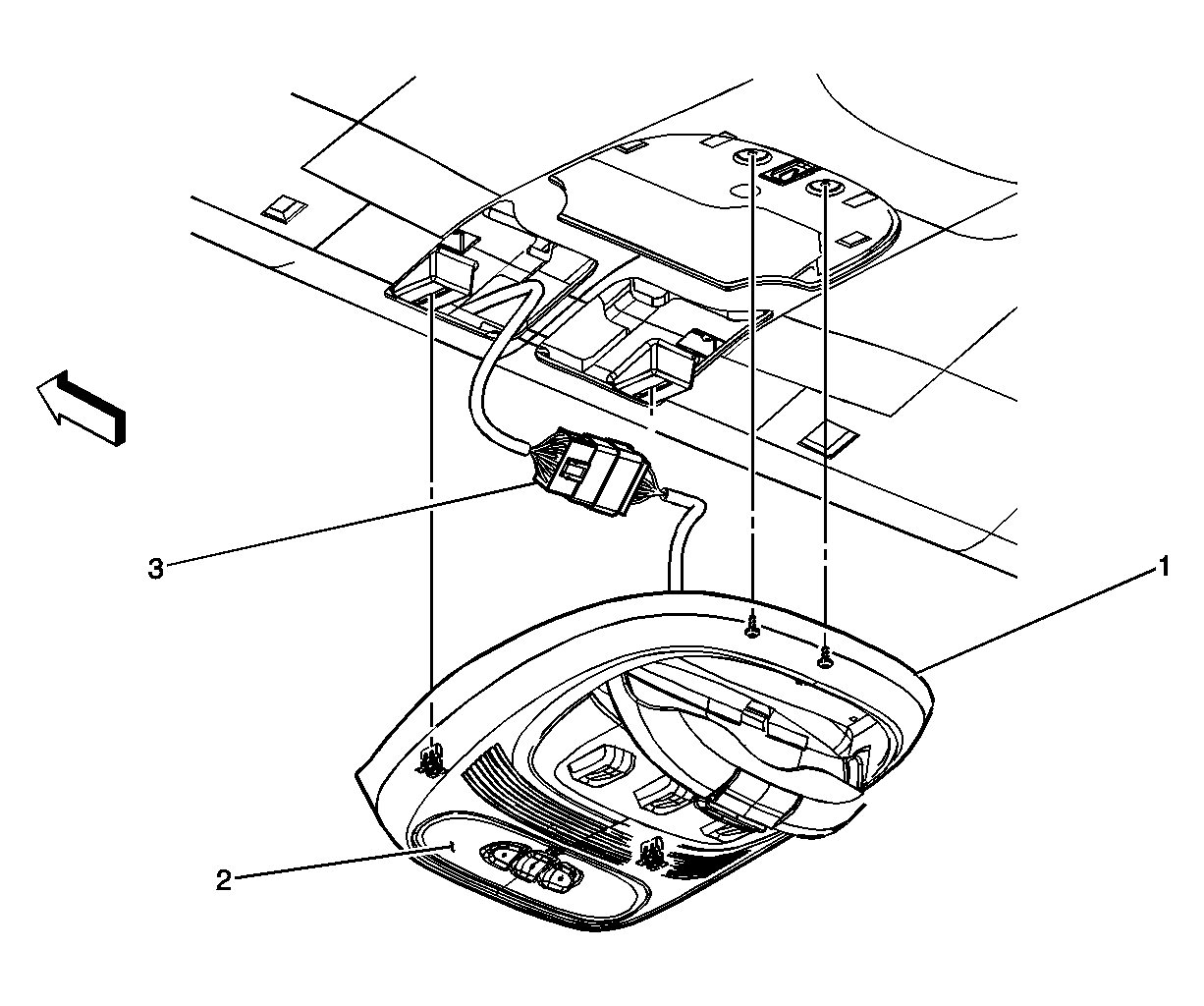

Fig 3: Voice Recorder

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Overhead Console
2	Voice Recorder
3	C305

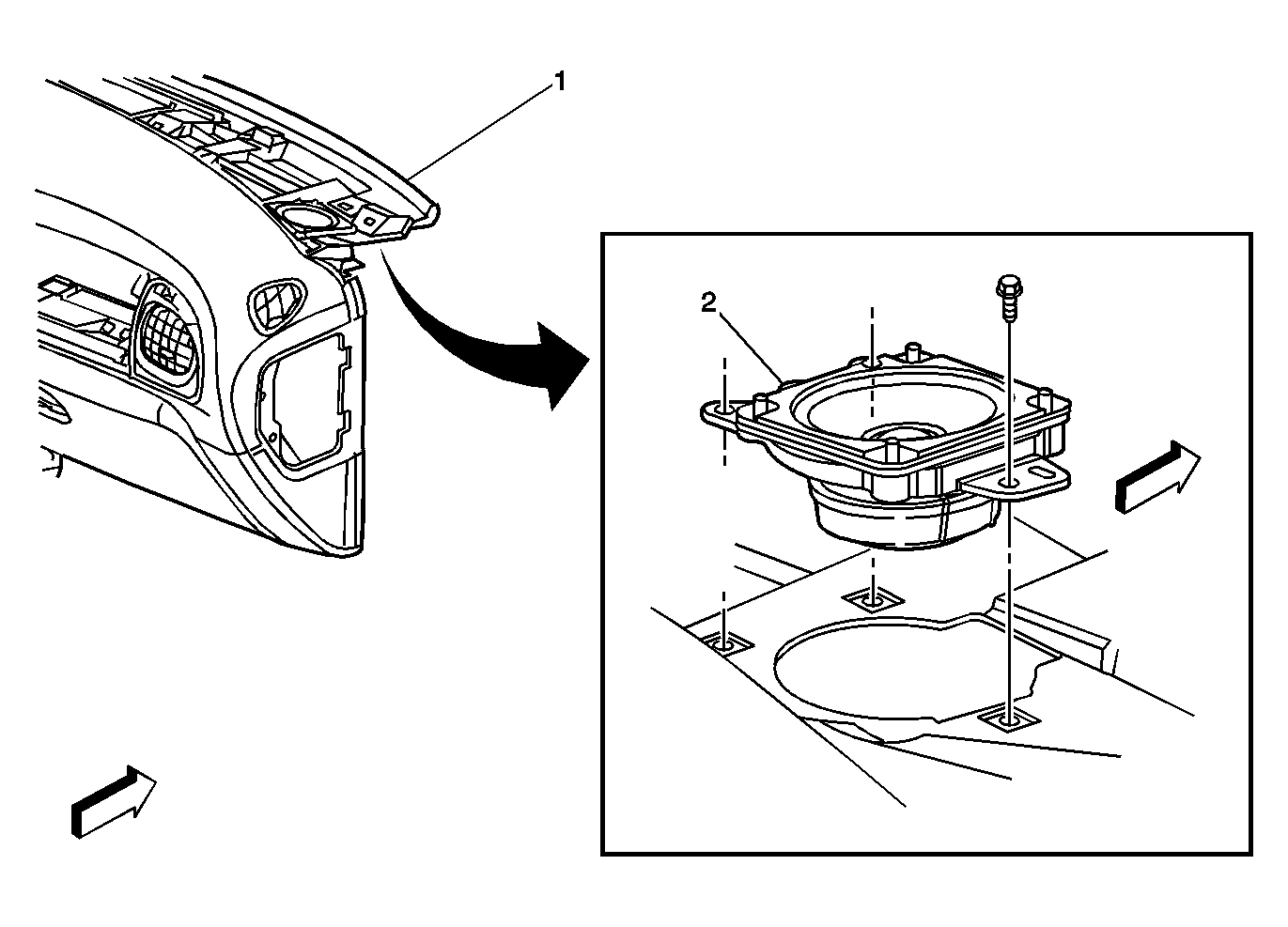

Fig 4: Speaker - RF Instrument Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel (IP)
2	Speaker-RF IP

Fig 5: Radio

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel
2	Radio Antenna
3	Radio
4	Instrument Panel Harness

Fig 6: Overhead Console

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cellular Microphone
2	Noise Reduction Microphone
3	Overhead Console

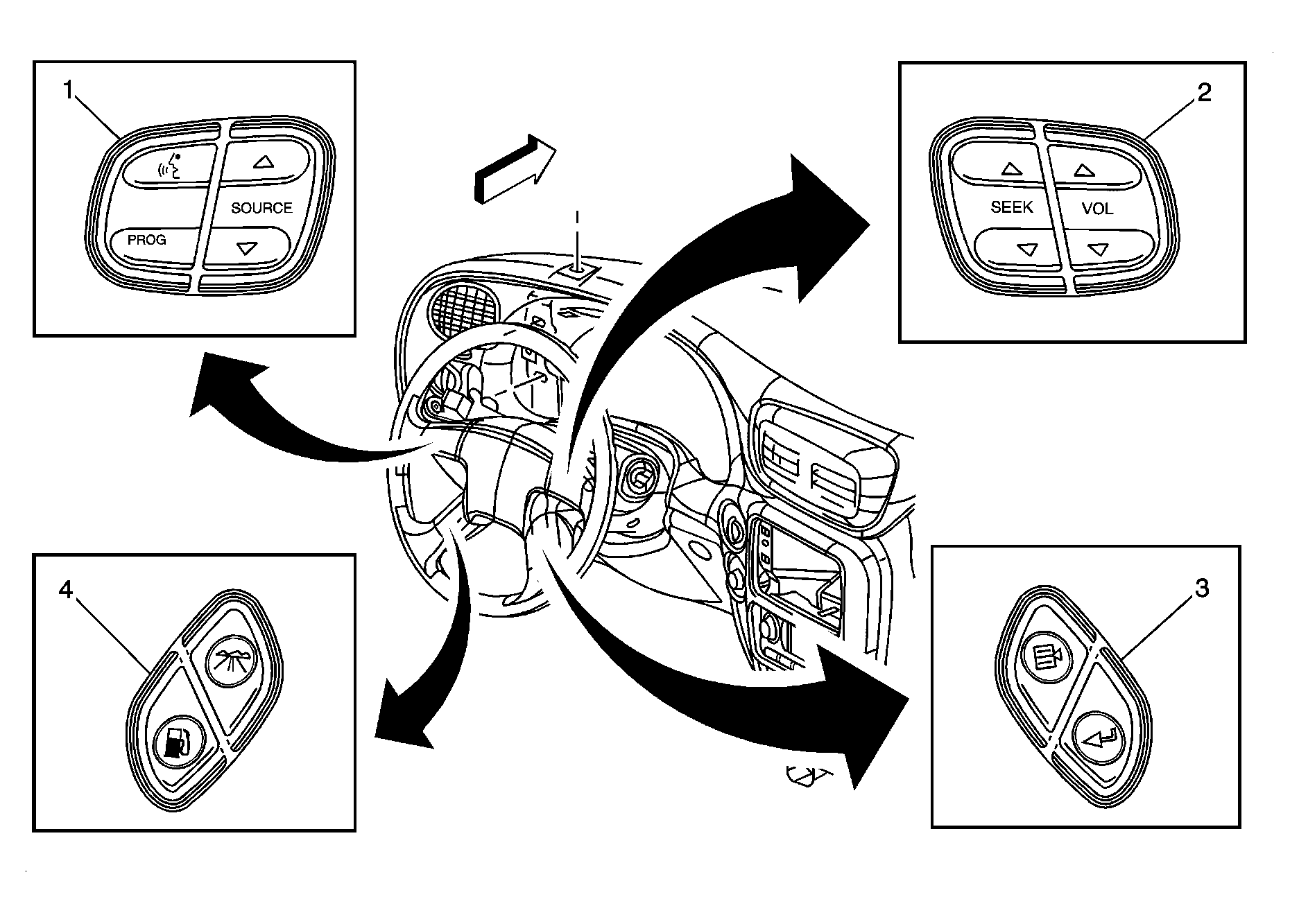

Fig 7: Steering Wheel Controls

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Wheel Control Switch Assembly - Upper Left
2	Steering Wheel Control Switch Assembly - Upper Right
3	Steering Wheel Control Switch Assembly - Lower Right
4	Steering Wheel Control Switch Assembly - Lower Left

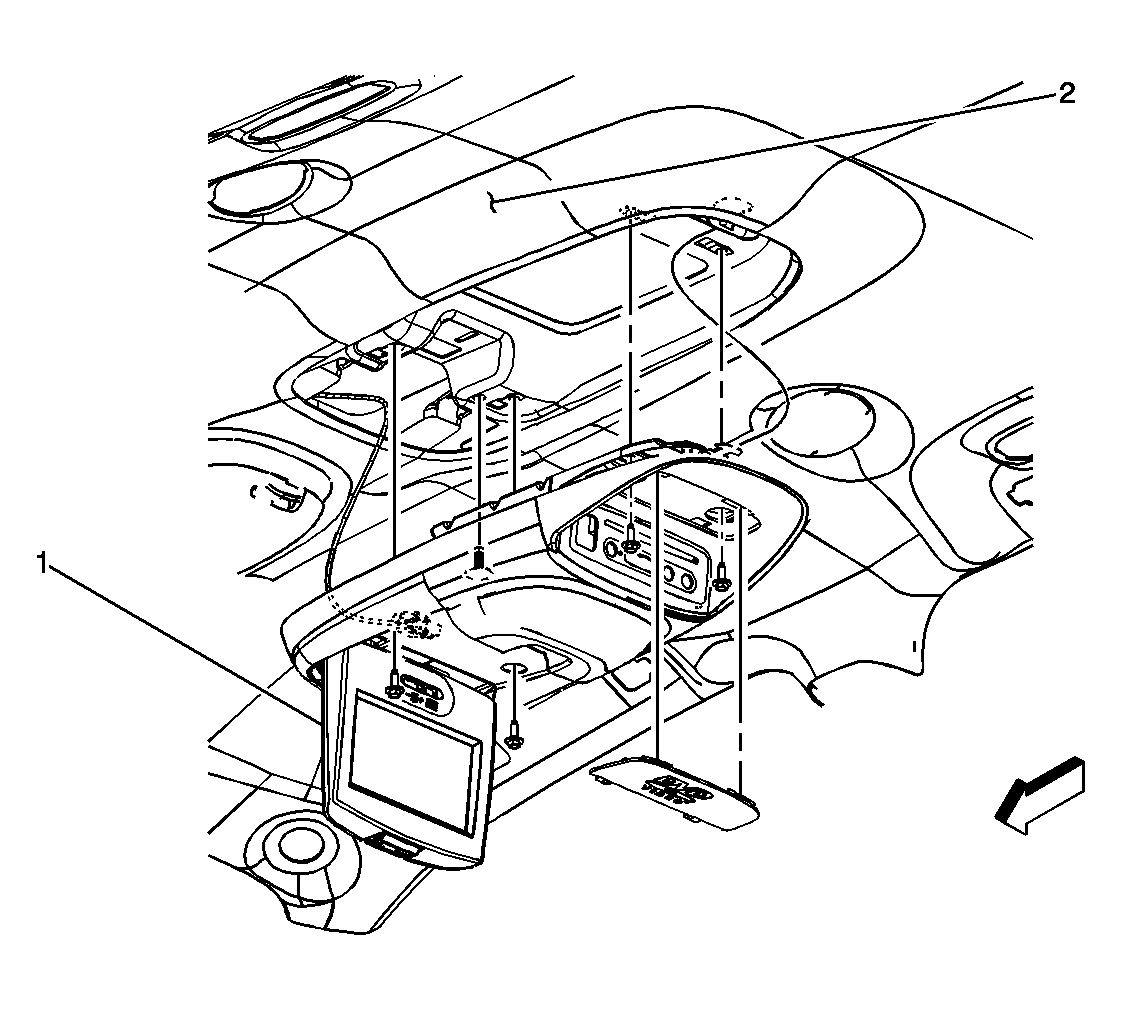

Fig 8: Digital Video Disc (DVD) Display Screen

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	DVD Display Screen
2	Overhead Console

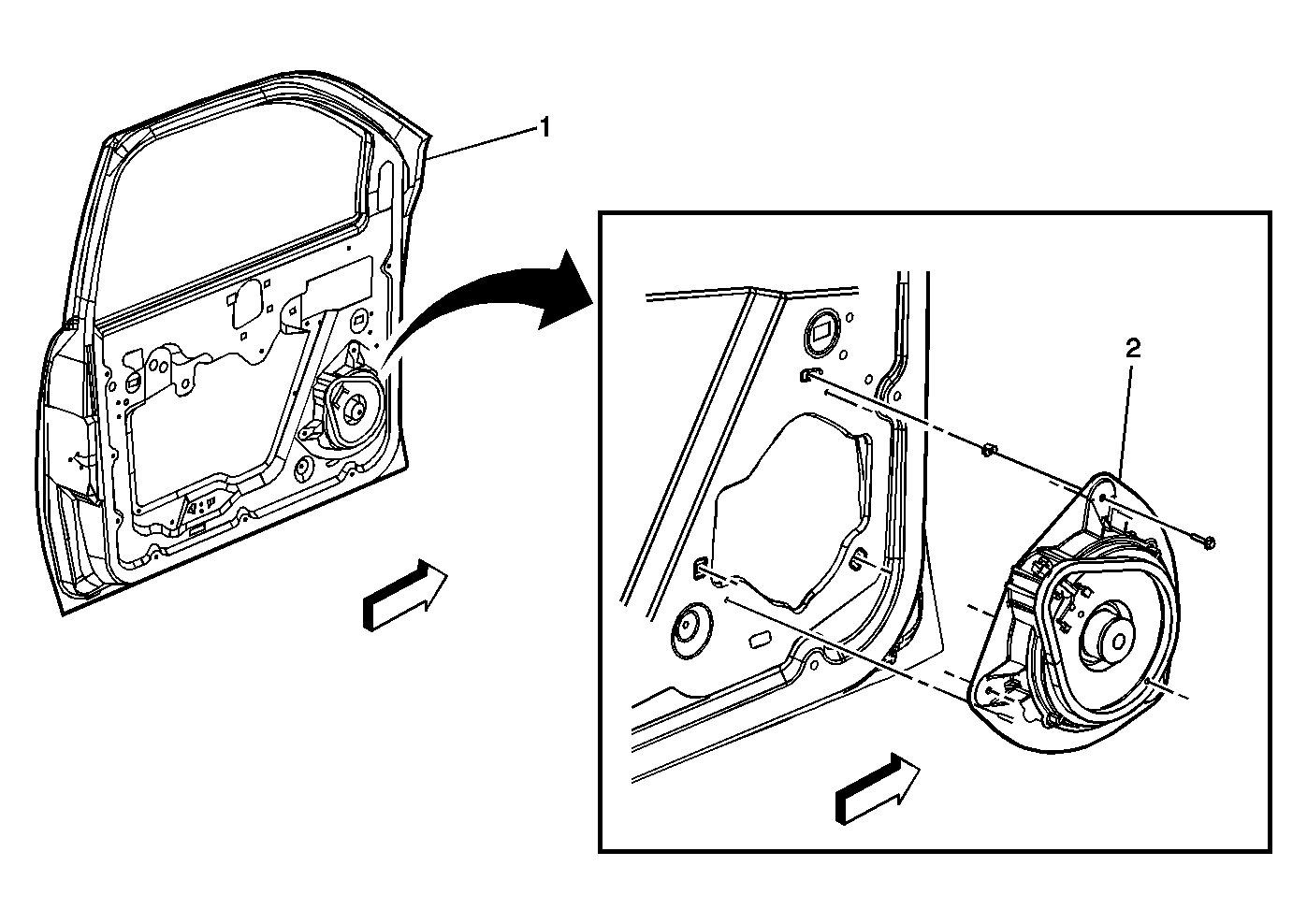

Fig 9: Speaker - LF Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door-LF
2	Speaker-LF Door

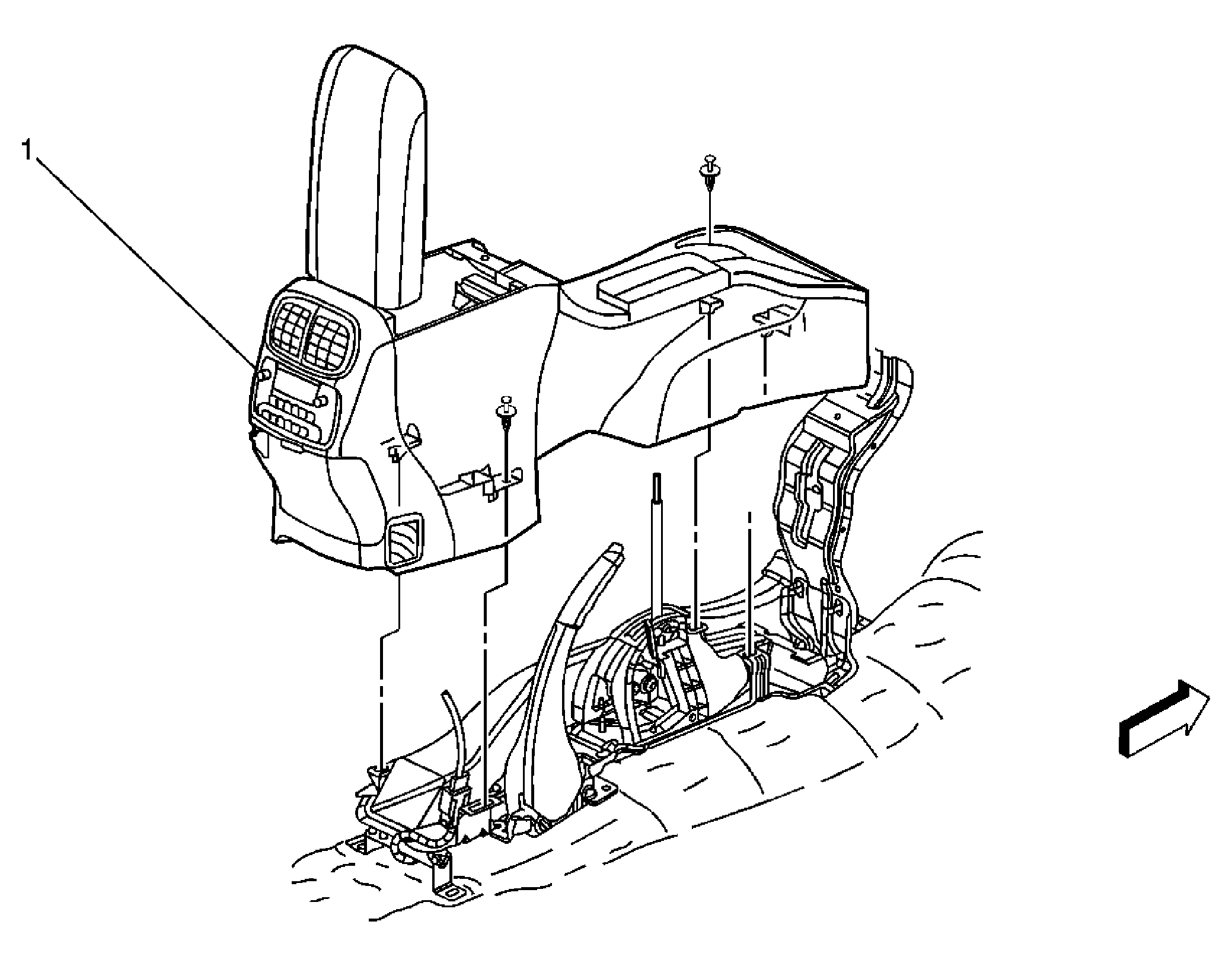

Fig 10: Rear Seat Audio (RSA)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Seat Audio (RSA)

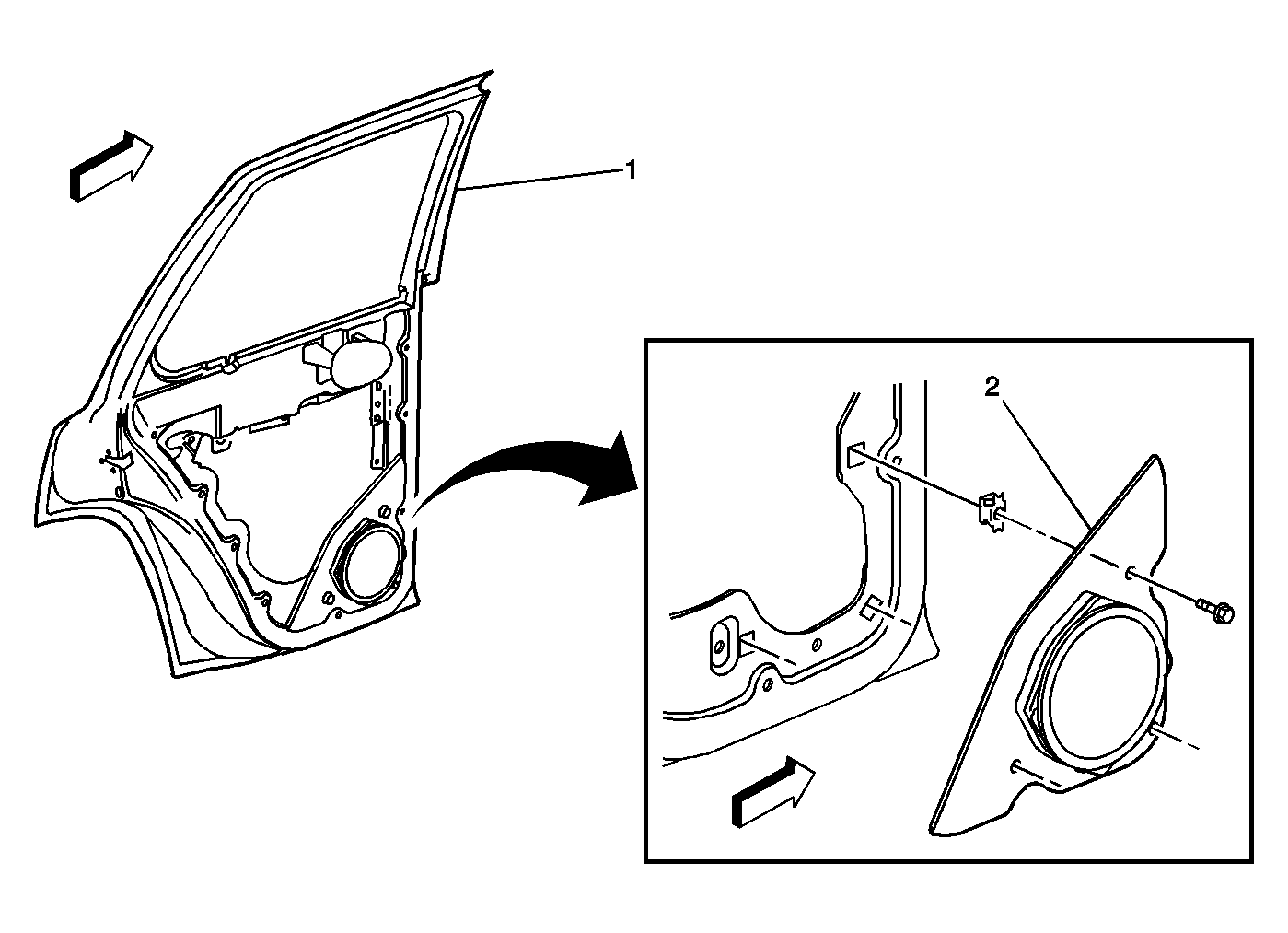

Fig 11: Speaker - LR Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door-LR
2	Speaker-LR Door

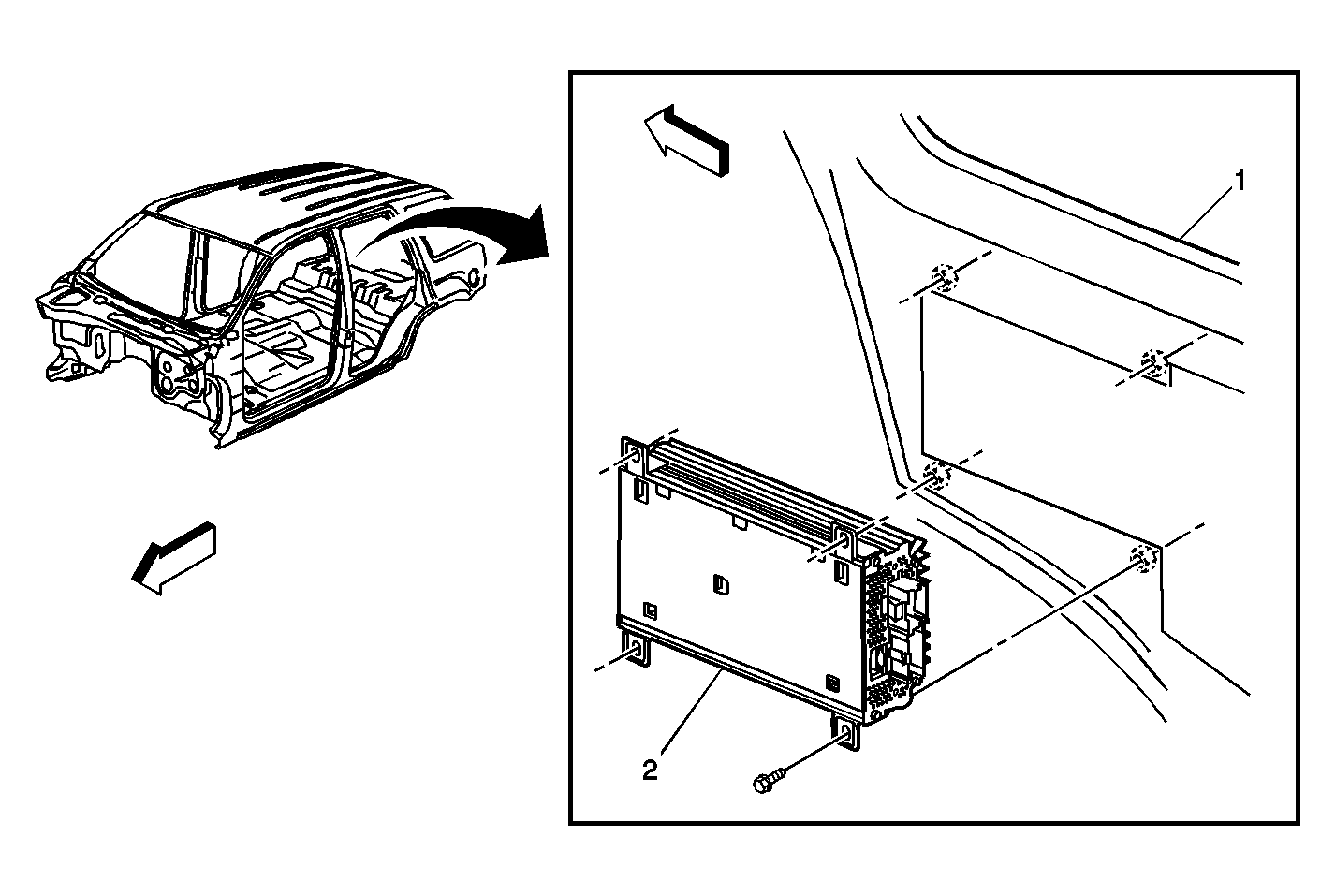

Fig 12: Audio Amplifier, Short Wheelbase Body Type VIN 3

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Side Inner Lower Panel-Right
2	Audio Amplifier

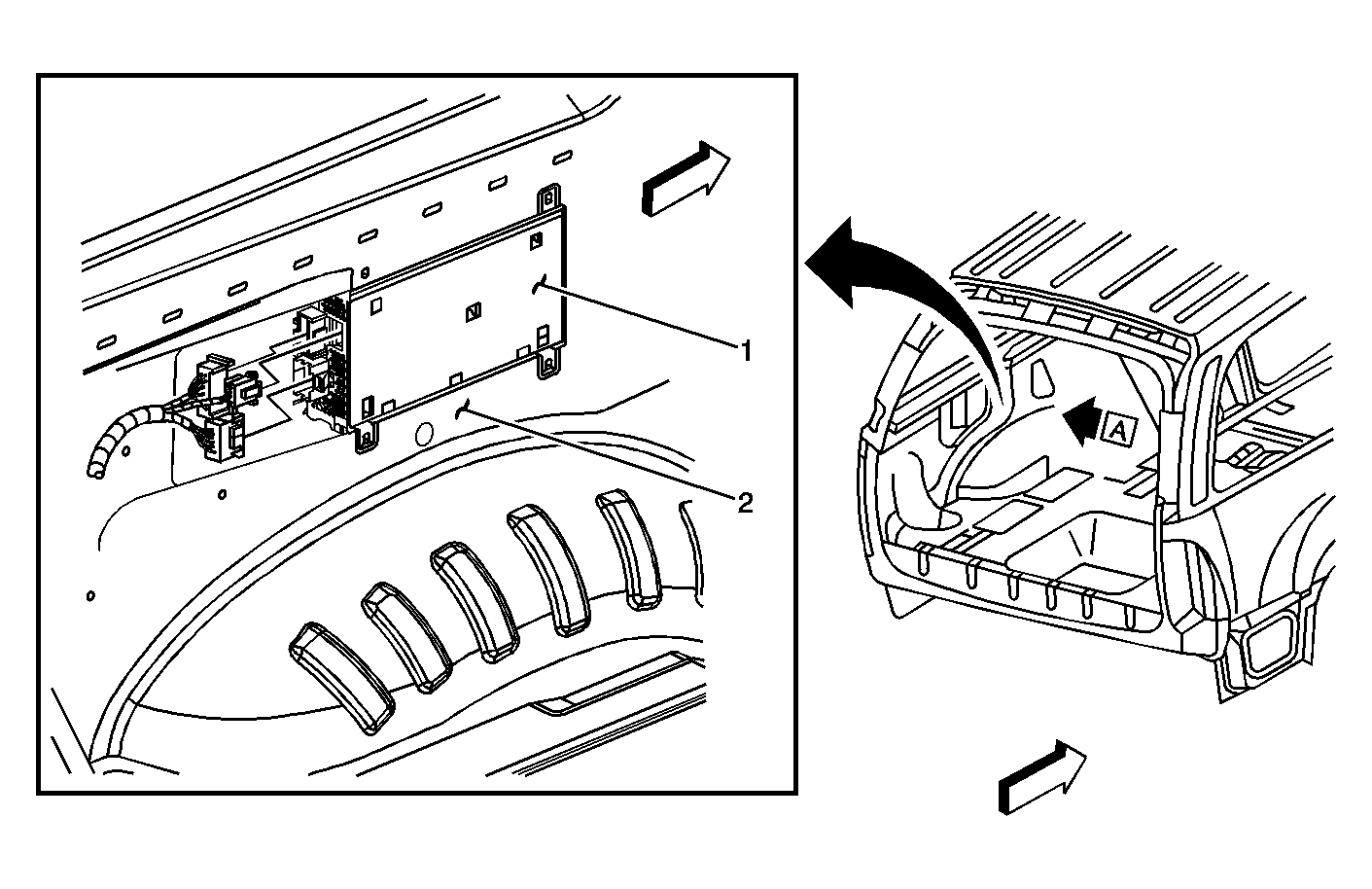

Fig 13: Audio Amplifier, Long Wheelbase Body Type VIN 6

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Audio Amplifier
2	Body Side Inner Panel-Left
