SIR Component Views

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

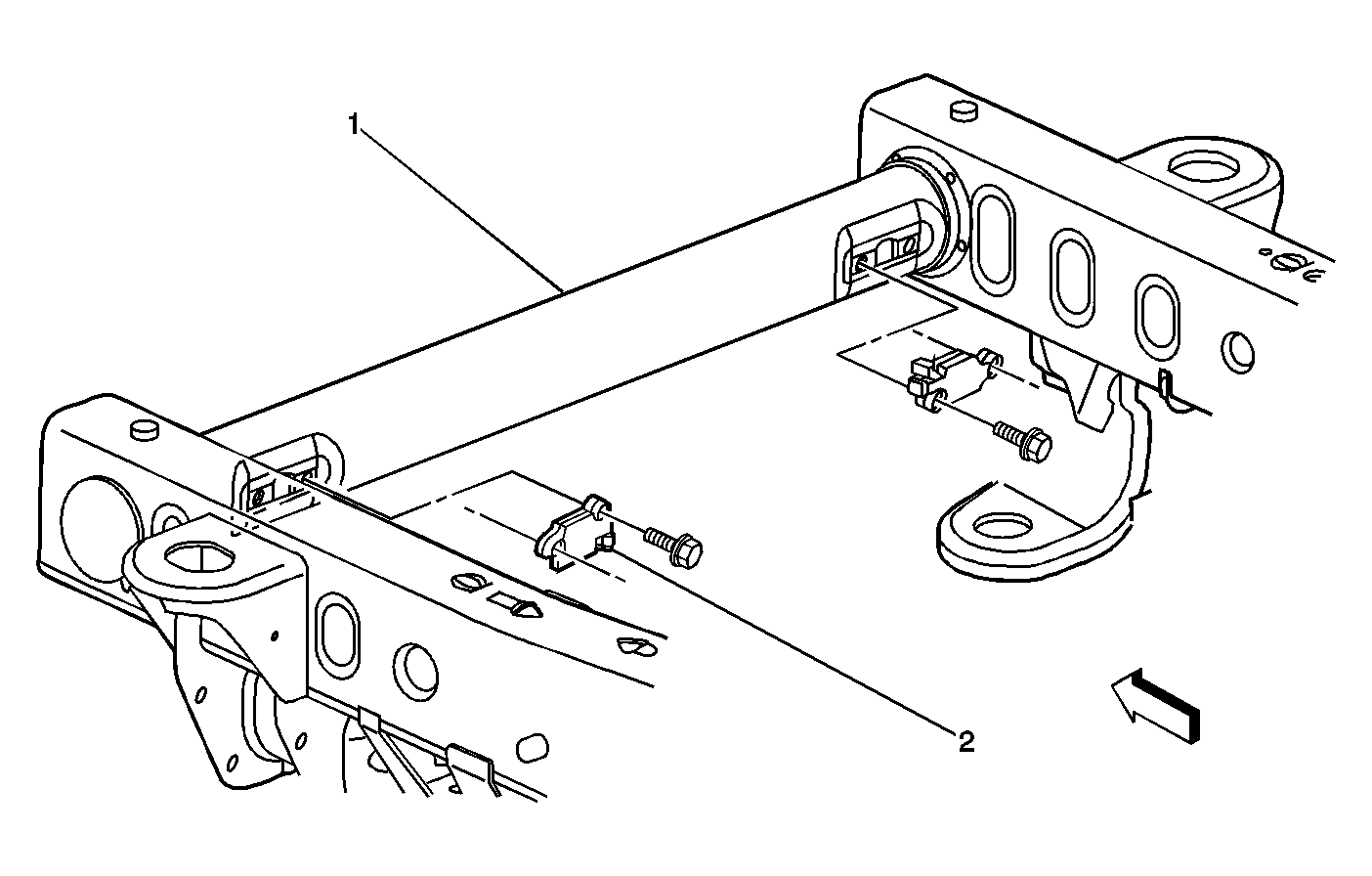

Fig 1: Inflatable Restraint Electronic Frontal Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Frame, Front
2	Inflatable Restraint Electronic Frontal Sensor

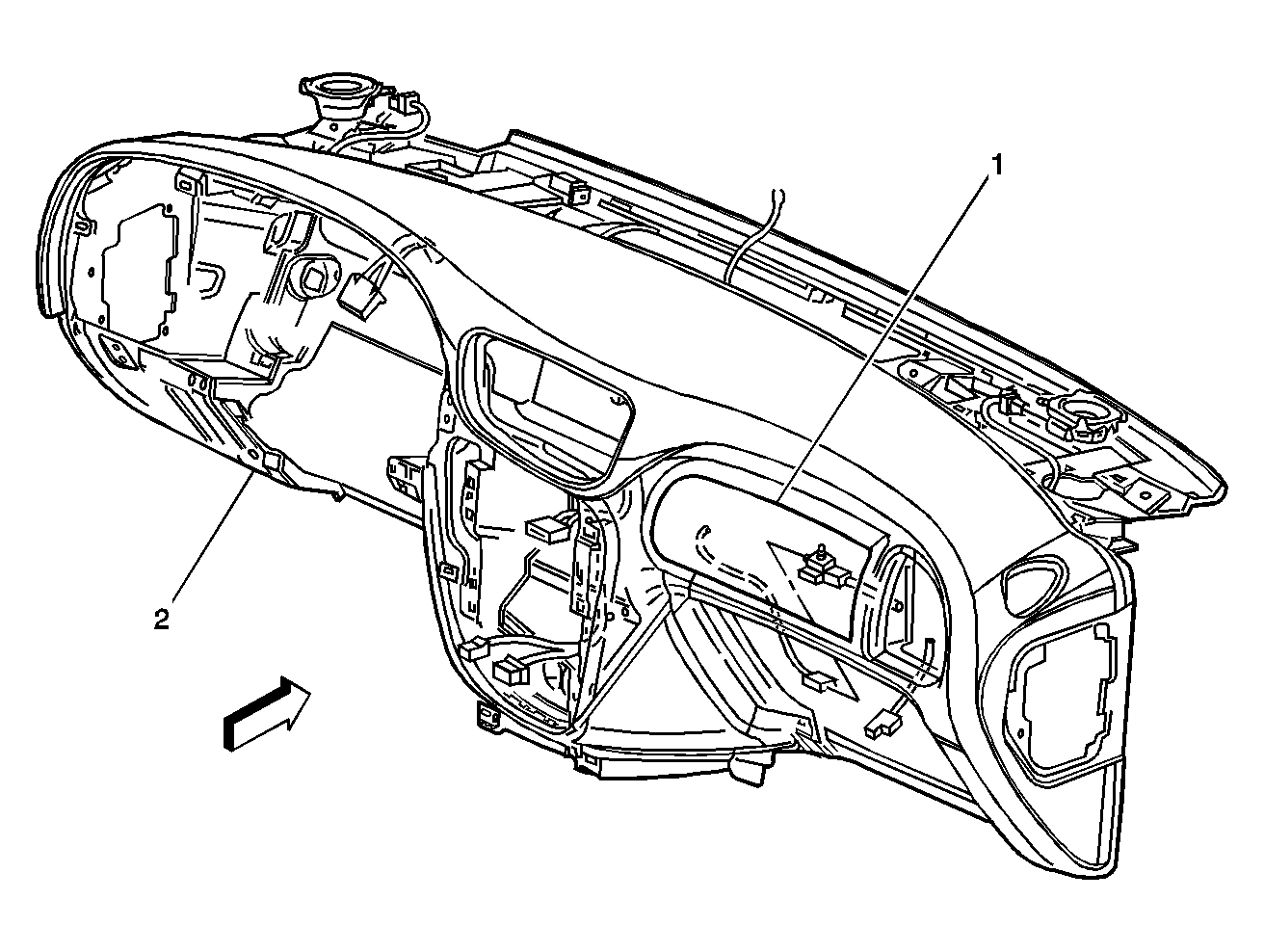

Fig 2: Inflatable Restraint I/P Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint I/P Module
2	Instrument Panel

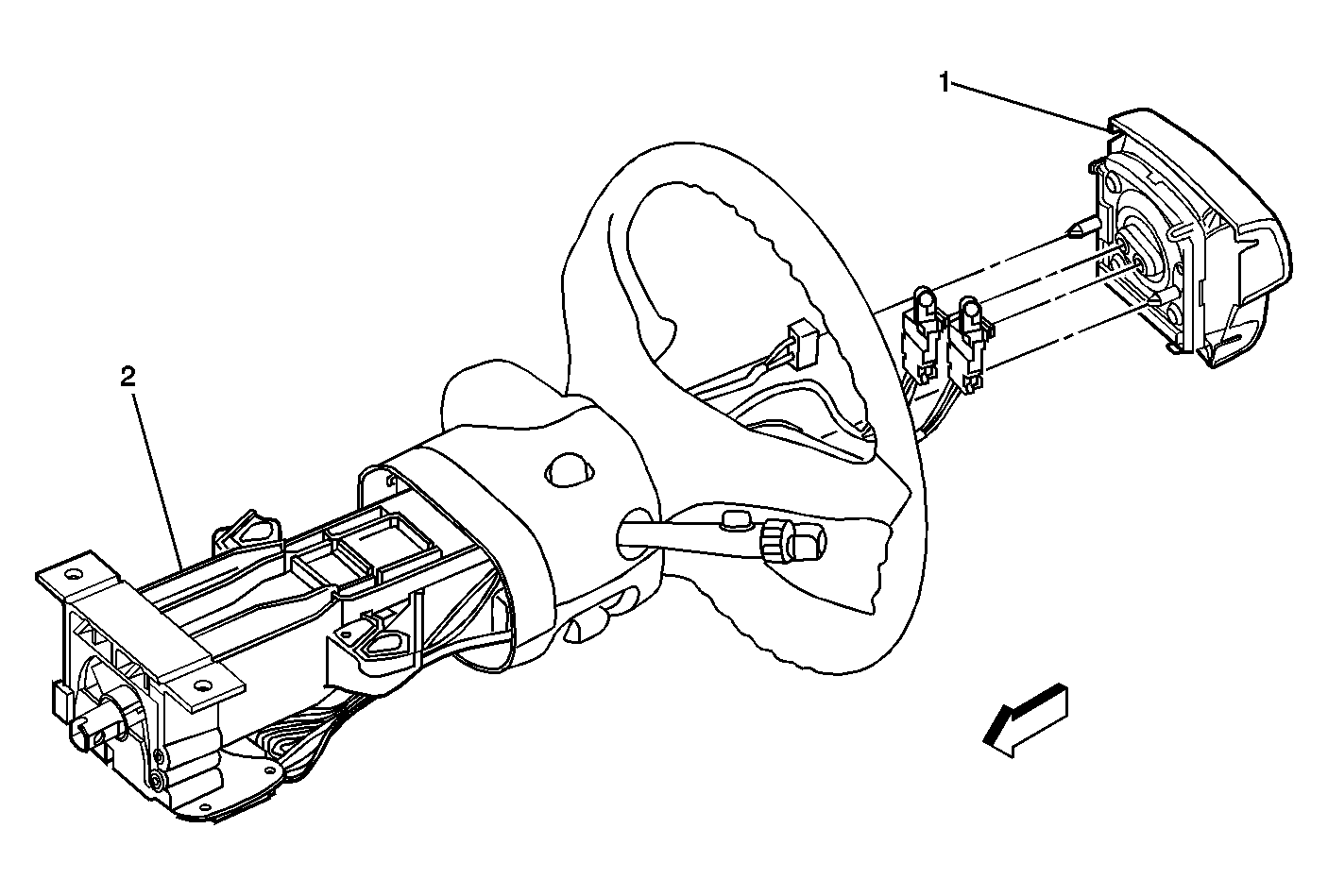

Fig 3: Inflatable Restraint Steering Wheel Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Steering Wheel Module
2	Steering Column

Fig 4: Inflatable Restraint Side Impact Module-Right

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Side Impact Module-Right
2	Passenger Seat, Driver Seat Similar
3	SIR Connector to Body Harness

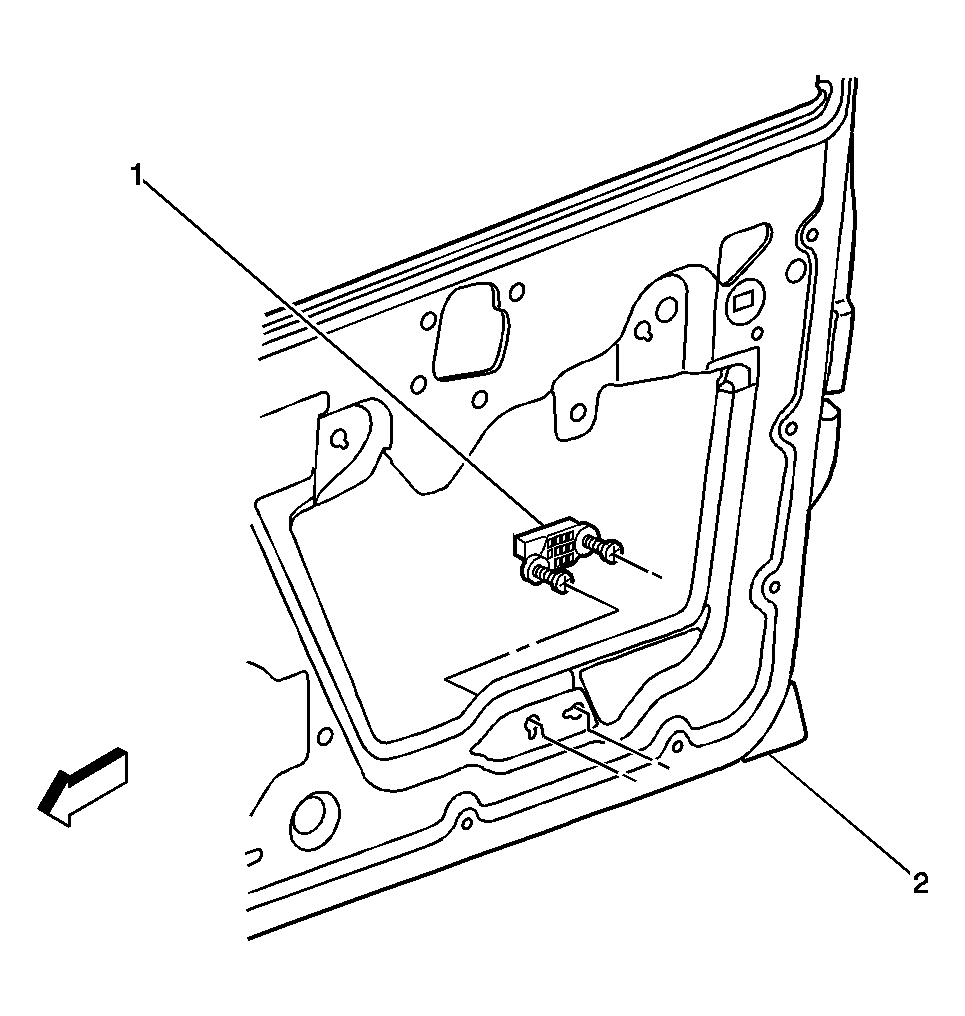

Fig 5: Inflatable Restraint Side Impact Sensor (SIS)-Right

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Side Impact Sensor (SIS)-Right
2	Passenger Door-RF

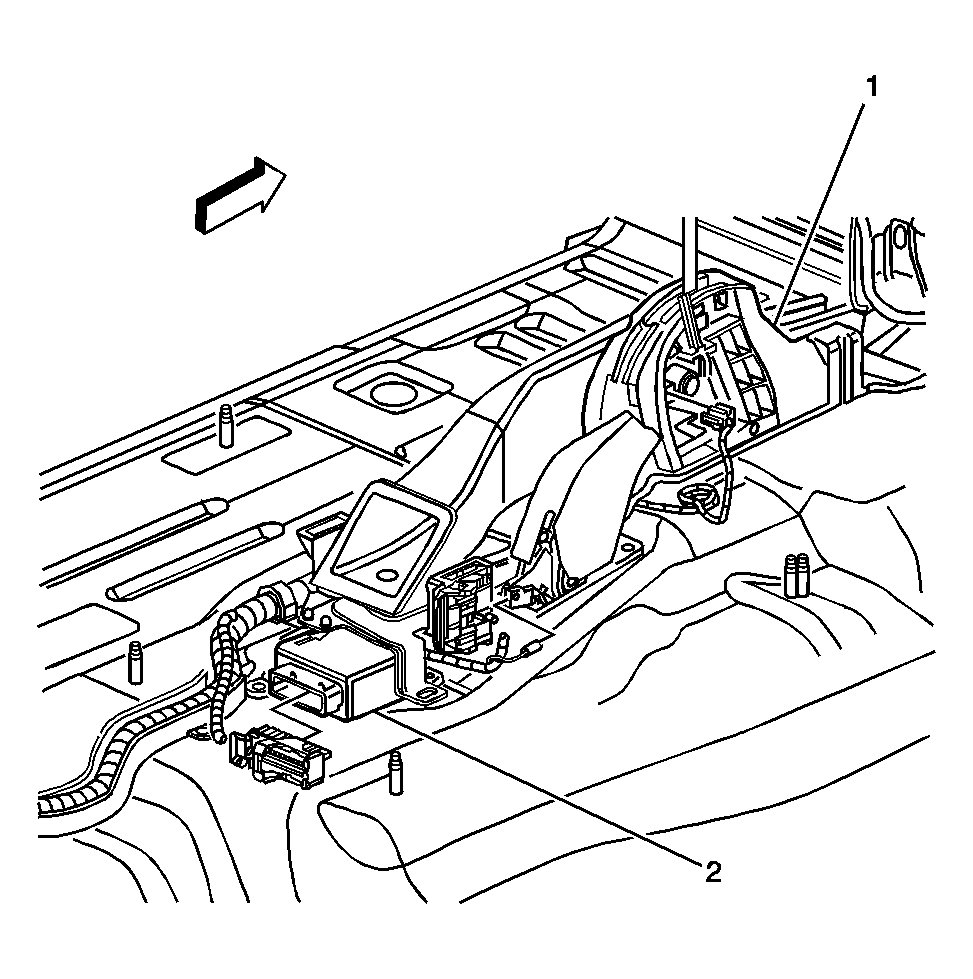

Fig 6: Inflatable Restraint Sensing and Diagnostic Module (SDM)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Lower Console
2	Inflatable Restraint Sensing and Diagnostic Module (SDM)
