SIR Zone Identification Views
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

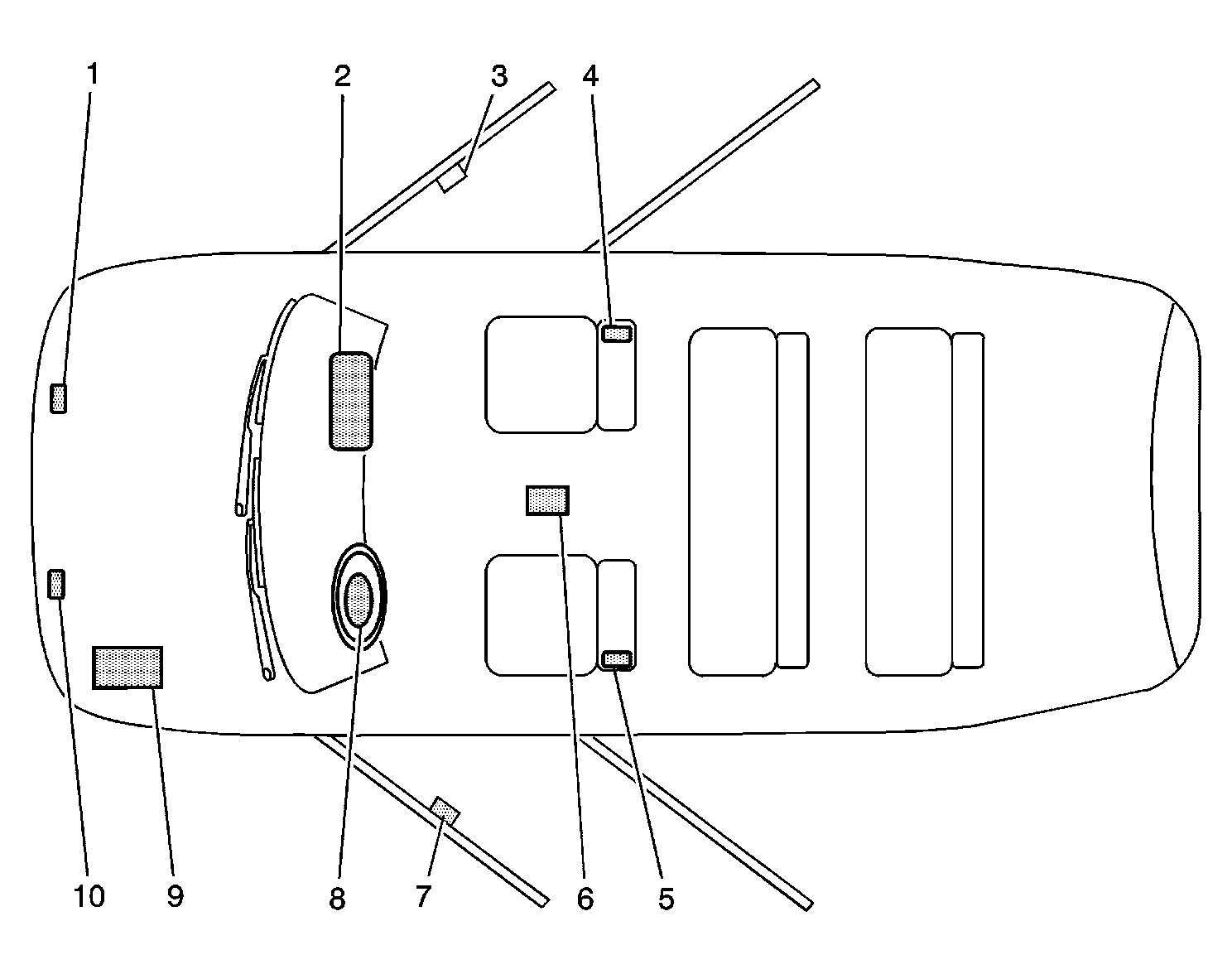

The SIR Zone Identification Views shown below illustrate the approximate location of all SIR components available for the vehicle. This will assist in determining the appropriate SIR Disabling and Enabling Zones for a given service procedure, refer to SIR Disabling and Enabling Zones .
| Callout | Component Name |
|---|---|
| 1 | Inflatable Restraint Front End Sensor-right- Right-Located on the front of the vehicle in the engine compartment |
| 2 | Inflatable Restraint IP Module-Located at the top right under the instrument panel |
| 3 | Inflatable Restraint Side Impact Sensor (SIS)-right-Located under right front door trim near the lower rear of door frame |
| 4 | Inflatable Restraint Side Impact Module-right-Located on the side of the right front seat |
| 5 | Inflatable Restraint Side Impact Module-left-Located on the side of the left front seat |
| 6 | Inflatable Restraint Sensing and Diagnostic Module (SDM)-Located under center floor console |
| 7 | Inflatable Restraint Side Impact Sensor (SIS)-left-Located under left front door trim near the lower rear of door frame |
| 8 | Inflatable Restraint Steering Wheel Module-Located on the steering wheel |
| 9 | Battery-Located under hood on the left side |
| 10 | Inflatable Restraint Front End Sensor-left-Located on the front of the vehicle in the engine compartment |
