Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Position the inflatable restraint module to the steering wheel.

Fig 1: Locating Steering Wheel Module Electrical Connectors
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connectors (1) to the inflatable restraint steering wheel module.
Connect the CPA retainers into the electrical connectors. Seat and lock the connections.

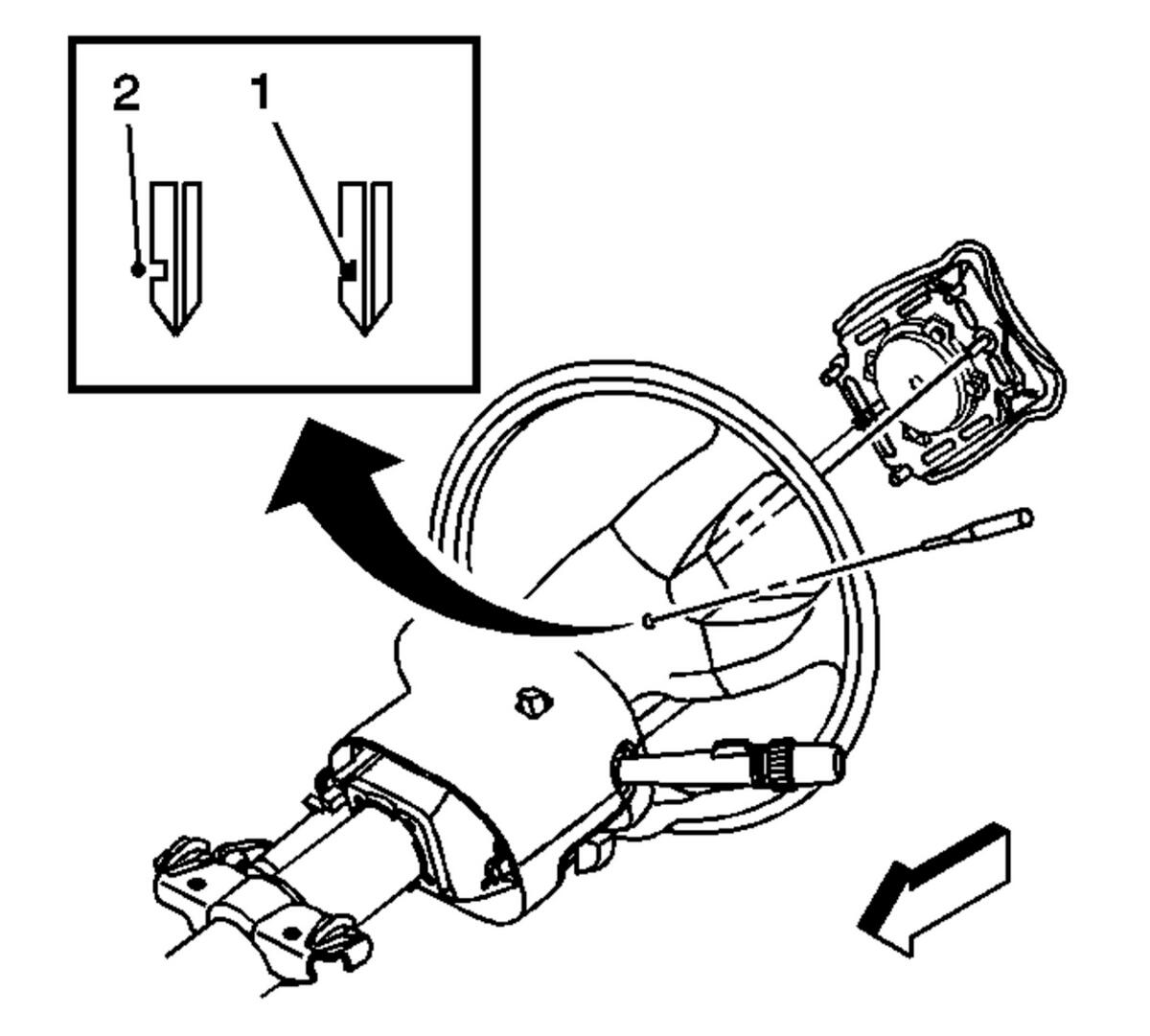

Fig 2: Removing/Installing Leaf Spring Fasteners

Courtesy of GENERAL MOTORS CORP.

Position the alignment posts of the inflatable restraint module to the holes that are located on the steering wheel housing.
Push the inflatable restraint module into the steering wheel in order to engage and in order to latch the 2 leaf spring fasteners (1).
After installation, pull the sides of the inflatable restraint module in order to ensure that both leaf spring fasteners are engaged.
Enable the inflatable restraint steering wheel module. Refer to SIR Disabling and Enabling Zone 3 .
