Power Roof Systems Component Views

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

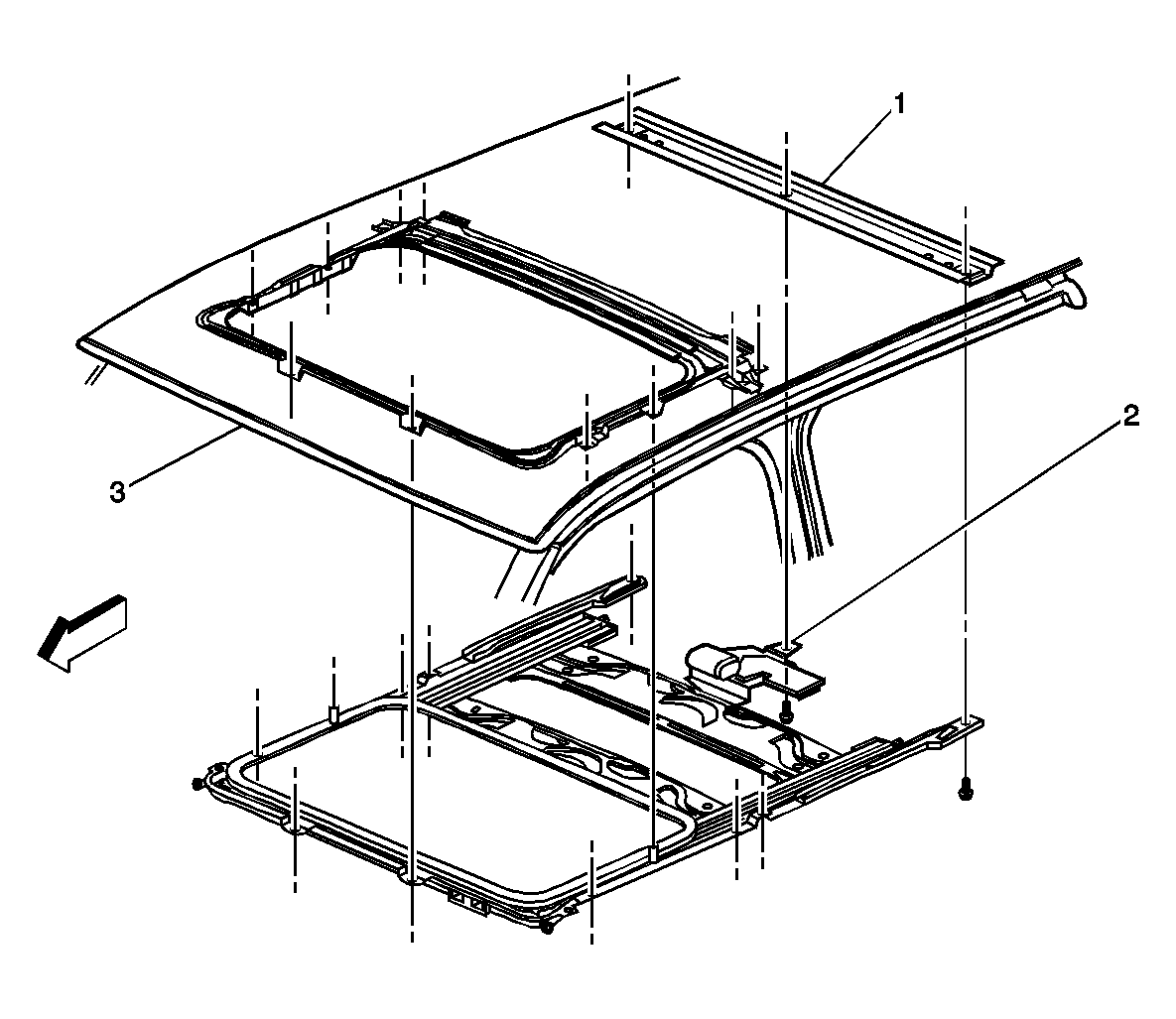

Fig 1: Sunroof Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Roof Reinforcement
2	Sunroof Module
3	Roof Panel

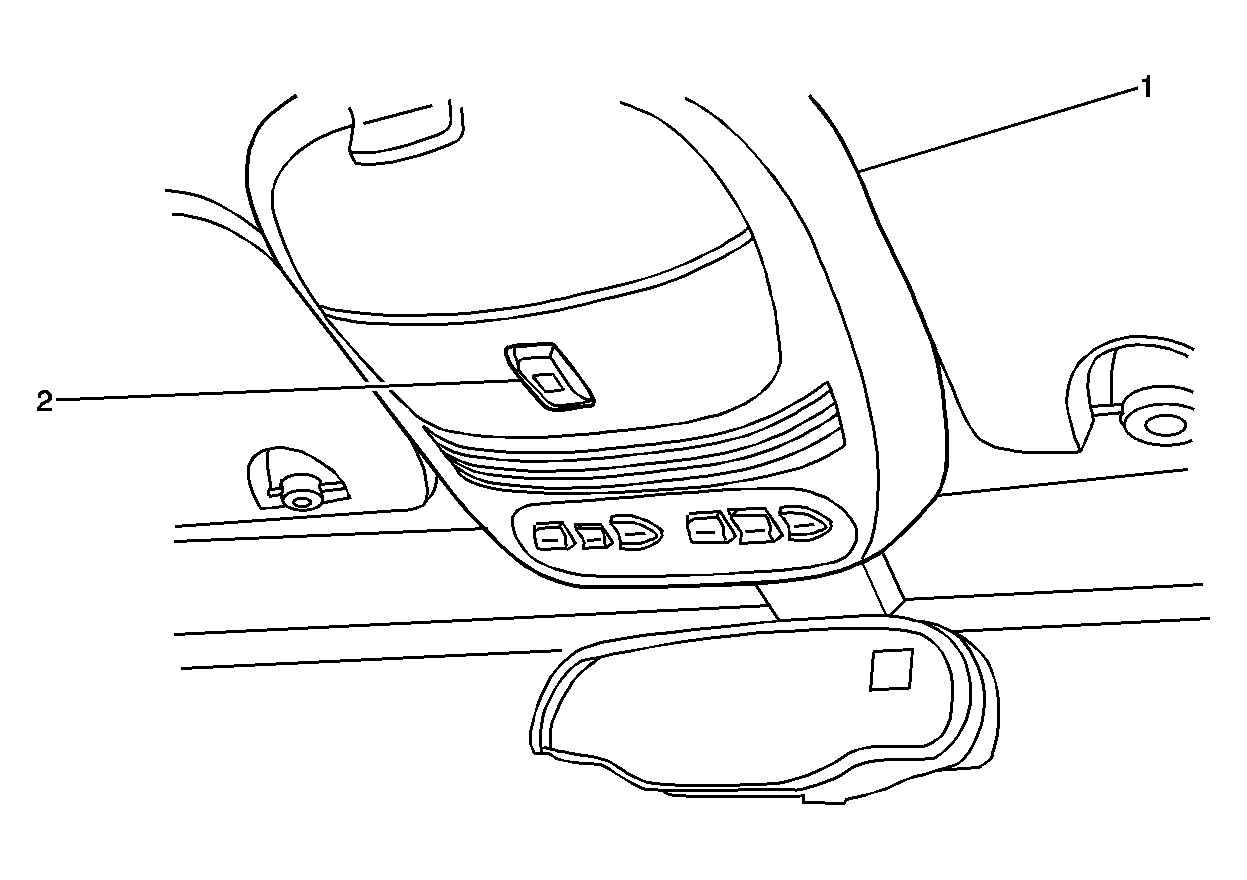

Fig 2: Upper Console Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Upper Console
2	Sunroof Switch

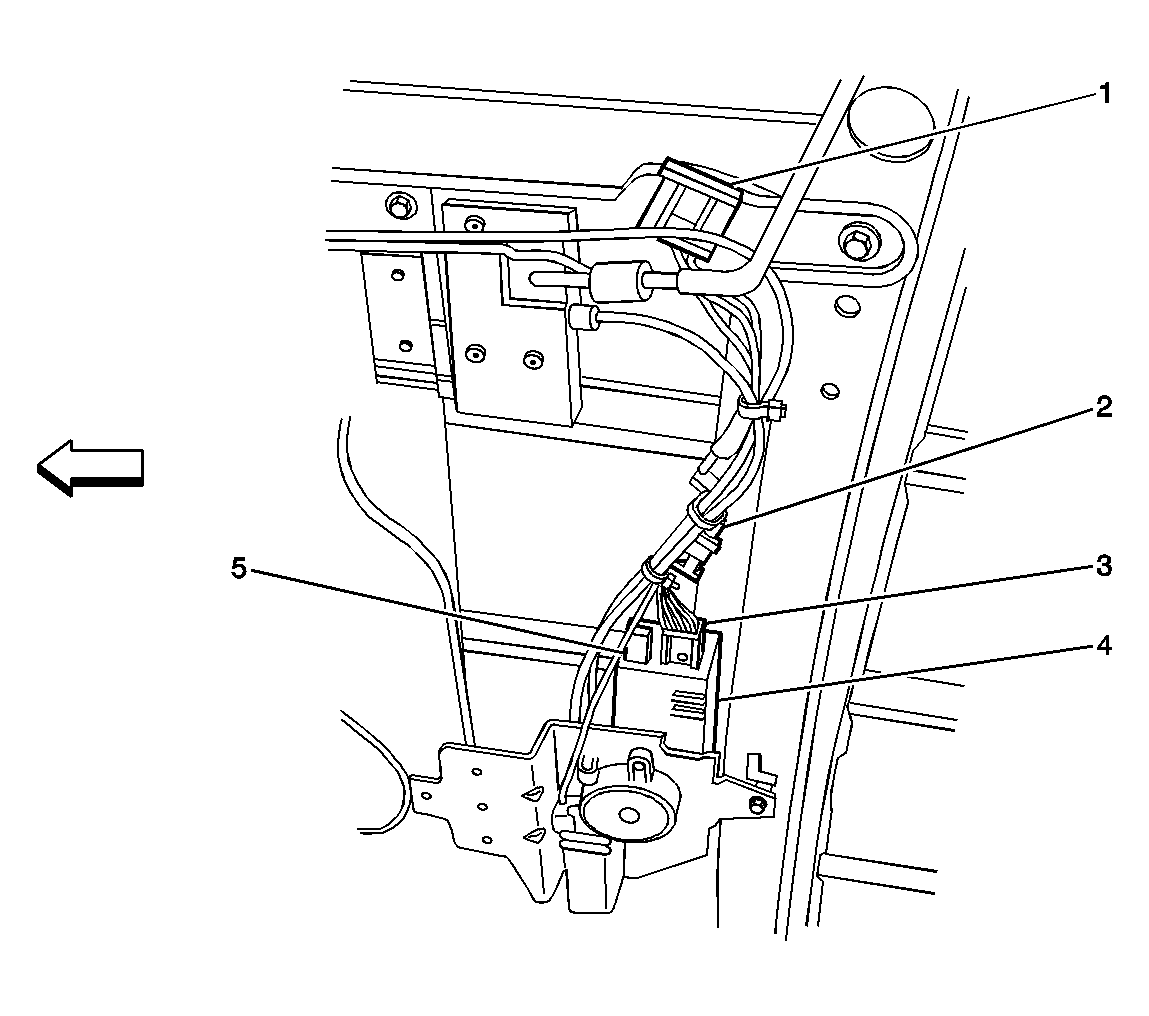

Fig 3: Roof With Headliner Removed

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C308
2	Sunroof Motor Connector
3	Connector C1
4	Sunroof Module
5	Connector C2
