Installation Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
- Install the tabs located on the bottom of the control module into the keyhole slots of the moveable roof panel assembly.
- Slide the control module away from the motor/actuator assembly, ensuring the tabs on the bottom of the control module remain in the keyhole slots.

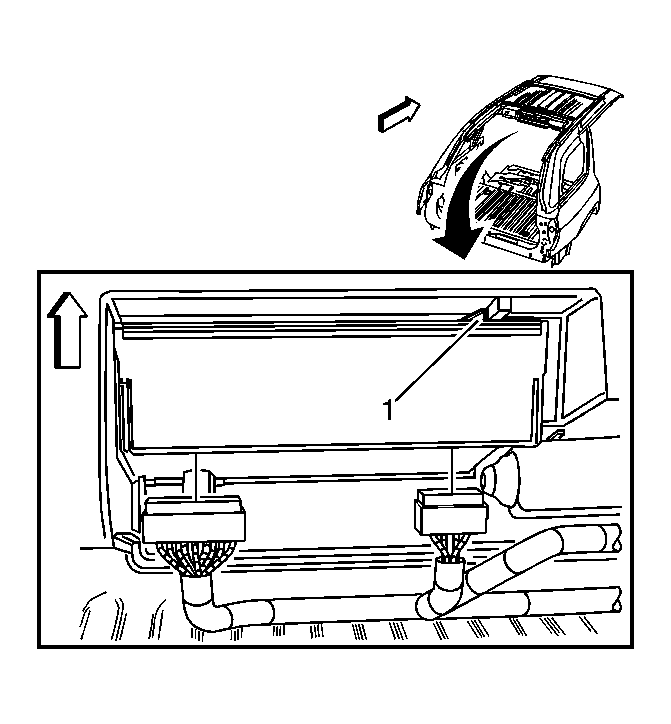

- Slide the control module away from the motor/actuator assembly until the retainer (1) is fully engaged.
- Connect the electrical connectors (2) to the control module.
- Install the moveable roof panel actuator cover. Refer to Moveable Roof Panel Actuator Cover Replacement .
- Install the moveable roof panel. Refer to Moveable Roof Panel Assembly Replacement .
- Perform a moveable roof panel learn cycle, by depressing the holding the roof switch in the forward position until the roof panel is fully opened, then depressing and holding the roof switch in the rearward position until the roof panel is fully closed.
- Ensure the proper operation of the moveable roof panel and end gate window.
