Suspension Controls Component Views

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

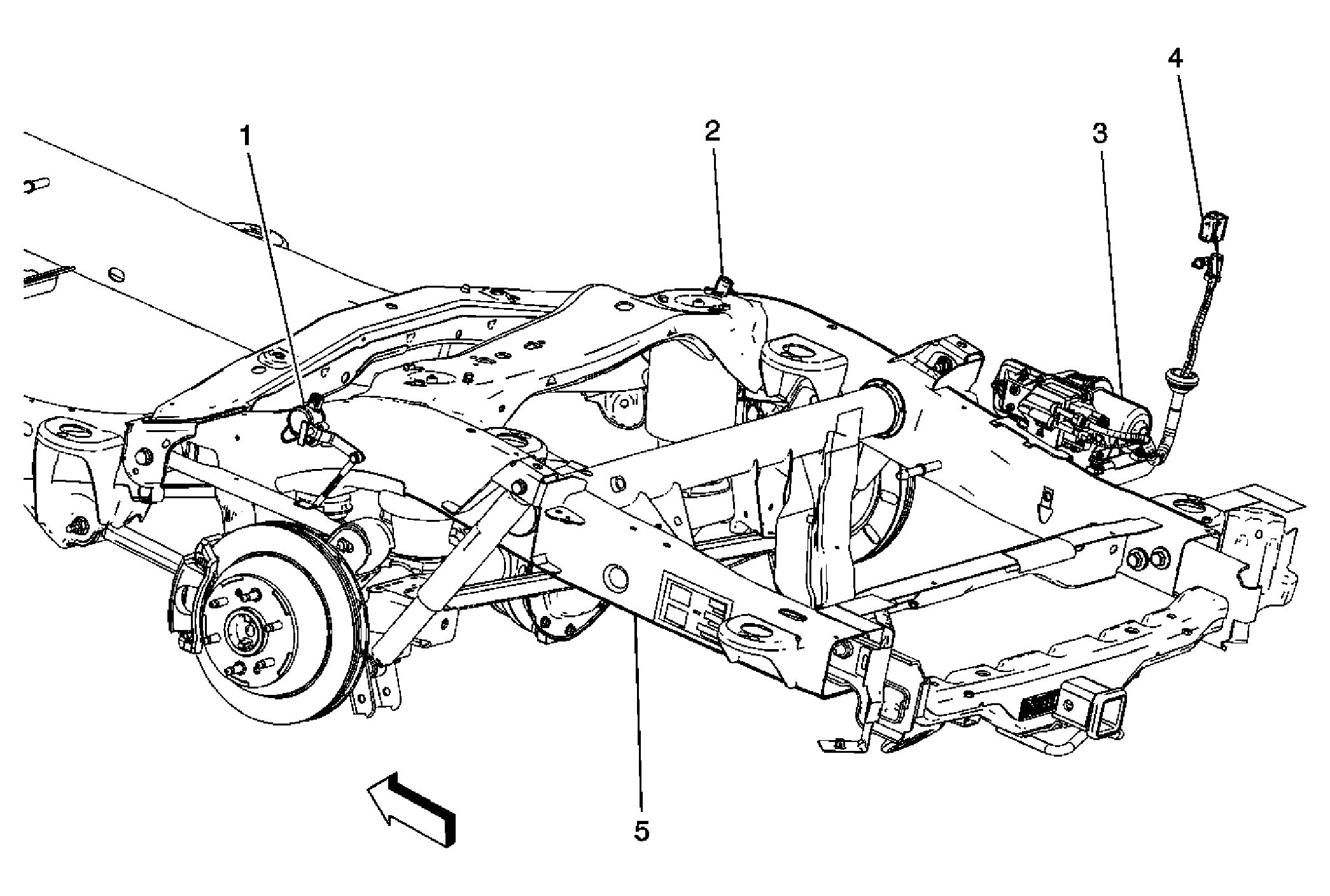

Fig 1: Rear Frame and Underbody - Short Wheelbase (SWB)
GM1380393Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Air Suspension Sensor - LR
2 Air Suspension Sensor - RR
3 Air Suspension Compressor Assembly
4 Air Suspension Inflator Switch
5 Frame

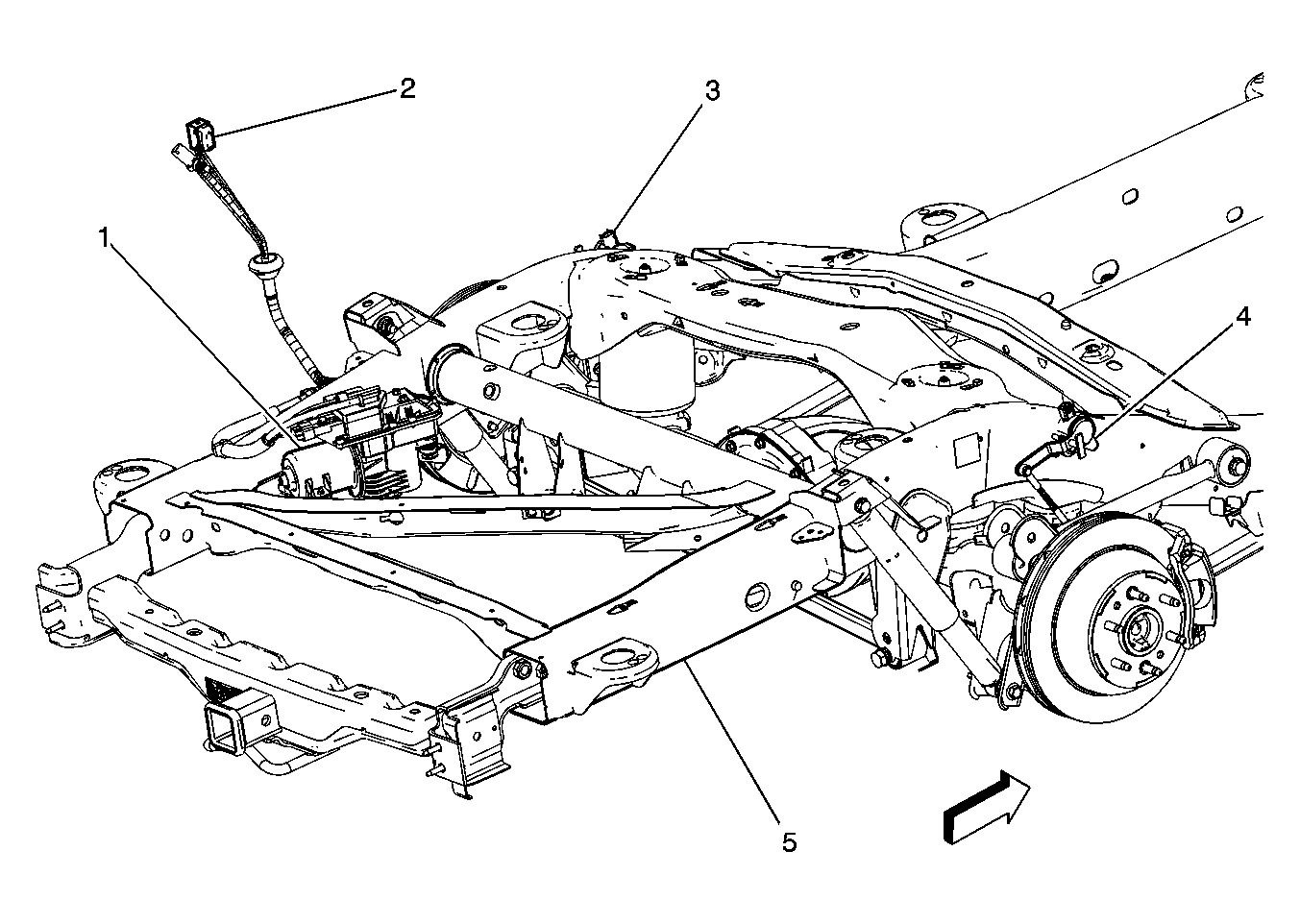

Fig 2: Rear Frame and Underbody - Long Wheelbase (LWB)
GM1380395Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Air Suspension Compressor Assembly
2 Air Suspension Inflator Switch
3 Air Suspension Sensor - LR
4 Air Suspension Sensor - RR
5 Frame
