Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Oldsmobile Bravada, 2004 GMC Envoy XUV, 2004 GMC Envoy XL, 2004 GMC Envoy, and 2004 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

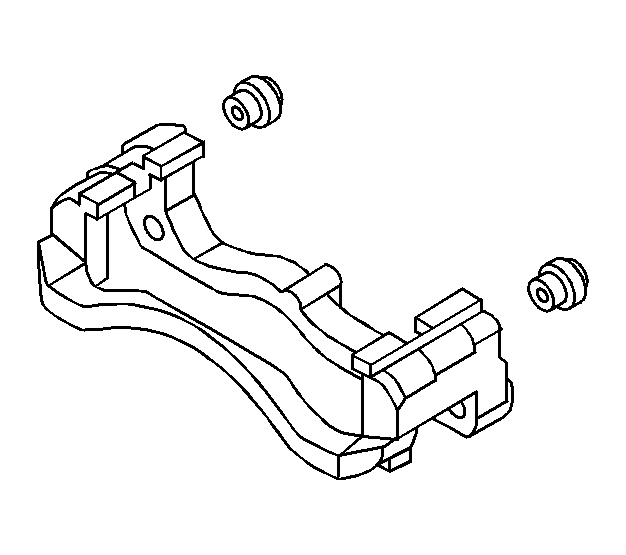

Fig 1: Removing/Installing Caliper Bracket Bushings

Courtesy of GENERAL MOTORS CORP.

Install the guide pin bushing on the brake caliper mounting bracket.

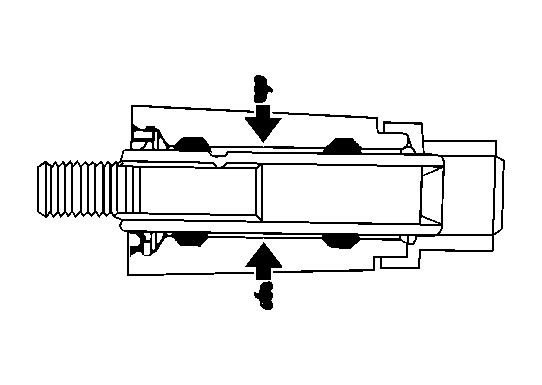

Fig 2: View Of Brake Caliper Guide Pin

Courtesy of GENERAL MOTORS CORP.

Install the guide pins in the brake caliper mounting bracket.
Apply high temperature silicone brake lubricant to the brake caliper guide pins. DO NOT apply lubricant to the brake pad hardware or retaining clips.

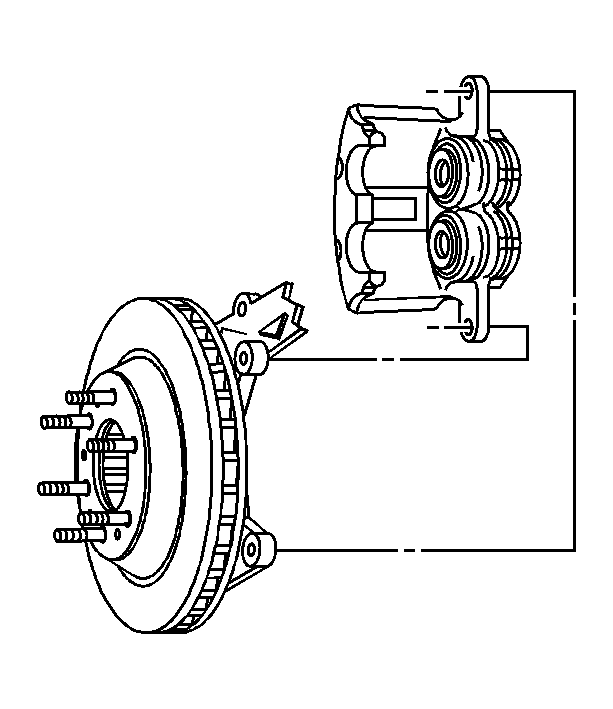

Fig 3: Identifying Brake Caliper Mounting Bracket

Courtesy of GENERAL MOTORS CORP.

Install the brake caliper mounting bracket.

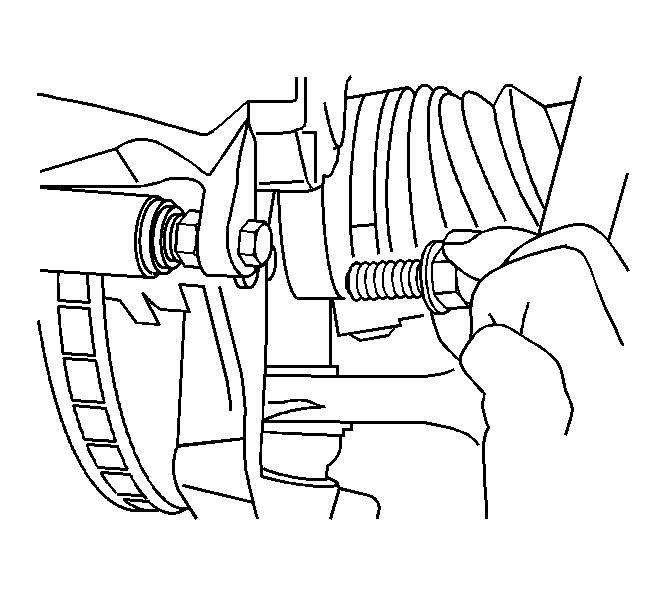

Fig 4: Caliper Mounting View

Courtesy of GENERAL MOTORS CORP.

Install the brake caliper mounting bracket bolts. lower bolt shown.
Install the brake pad retaining clips to the brake caliper mounting bracket.

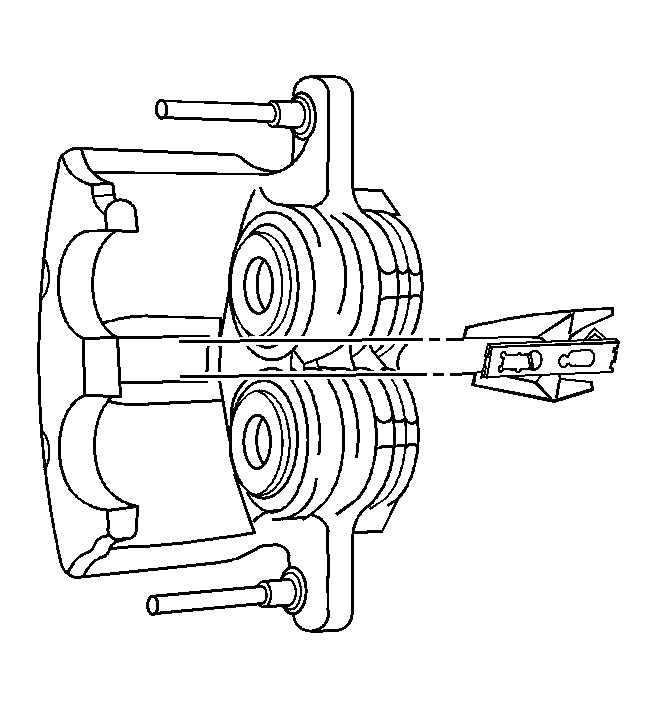

Fig 5: Removing/Installing Brake Pad Retaining Clip

Courtesy of GENERAL MOTORS CORP.

Install the brake pad retaining clip to the brake caliper.

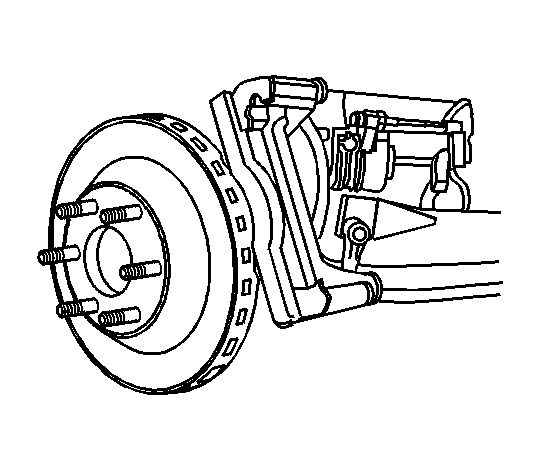

Fig 6: View Of Rotor & Caliper

Courtesy of GENERAL MOTORS CORP.

Install the brake caliper assembly. Refer to Brake Caliper Replacement - Front .
Install the tire and wheel assembly. Refer toTire and Wheel Removal and Installation in Suspension.
Lower the vehicle. Refer toLifting and Jacking the Vehicle in General Information
