Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean the surface of the rear shelf in the (GPS) antenna mounting location, using an isopropyl alcohol pad and a clean lint-free cloth.
  2. Connect the GPS antenna cable connector.
    3. IMPORTANT: Do not touch the adhesive backing.
  3. Remove the protective backing from the adhesive on the GPS antenna.
  4. Install the GPS antenna to the rear shelf surface.

    Press the GPS antenna into place until fully seated for approximately 30 seconds.

  5. Secure the antenna assembly to the rear shelf with tape.
  6. Install the acoustical barrier.
  7. Install the rear shelf trim panel. Refer to Trim Panel Replacement - Rear Window Shelf (Impala) or Trim Panel Replacement - Rear Window Shelf (Monte Carlo) in Interior Trim.

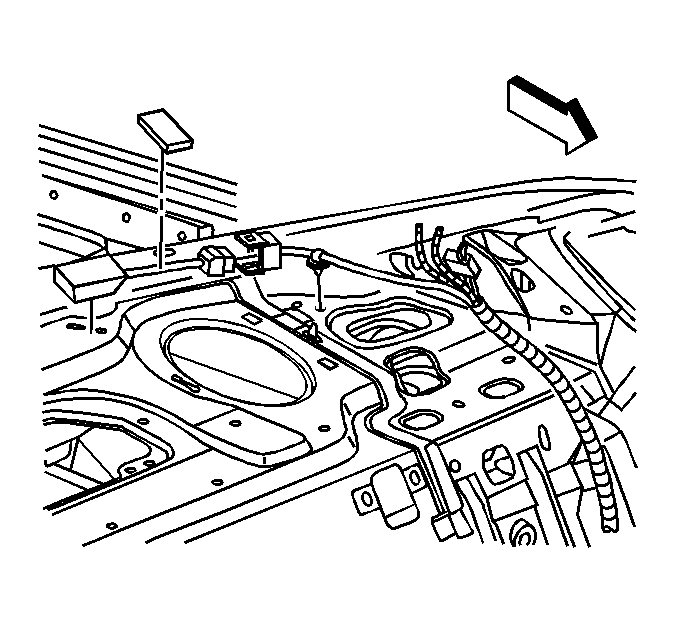

    8. Fig 1: Rear Shelf Trim Panel
    GM852736Courtesy of GENERAL MOTORS CORP.
