Cruise Control Component Views

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Cruise Control Module (CCM),Left Center of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C101
2	G151
3	A/C Refrigerant Pressure Sensor
4	C113
5	Electronic Brake Control Module (EBCM)
6	Cruise Control Module (CCM)

Fig 2: Cruise Control System Components, Lower Center of Instrument Panel (w/o 9C1/9C3)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G203
2	Inflatable Restraint Steering Wheel Module Coil Connector C1
3	Data Link Connector (DLC)
4	C201
5	Stop Lamp Switch Connectors
6	Cruise Control Release Switch Connector
7	Cruise Control Release Switch
8	G201

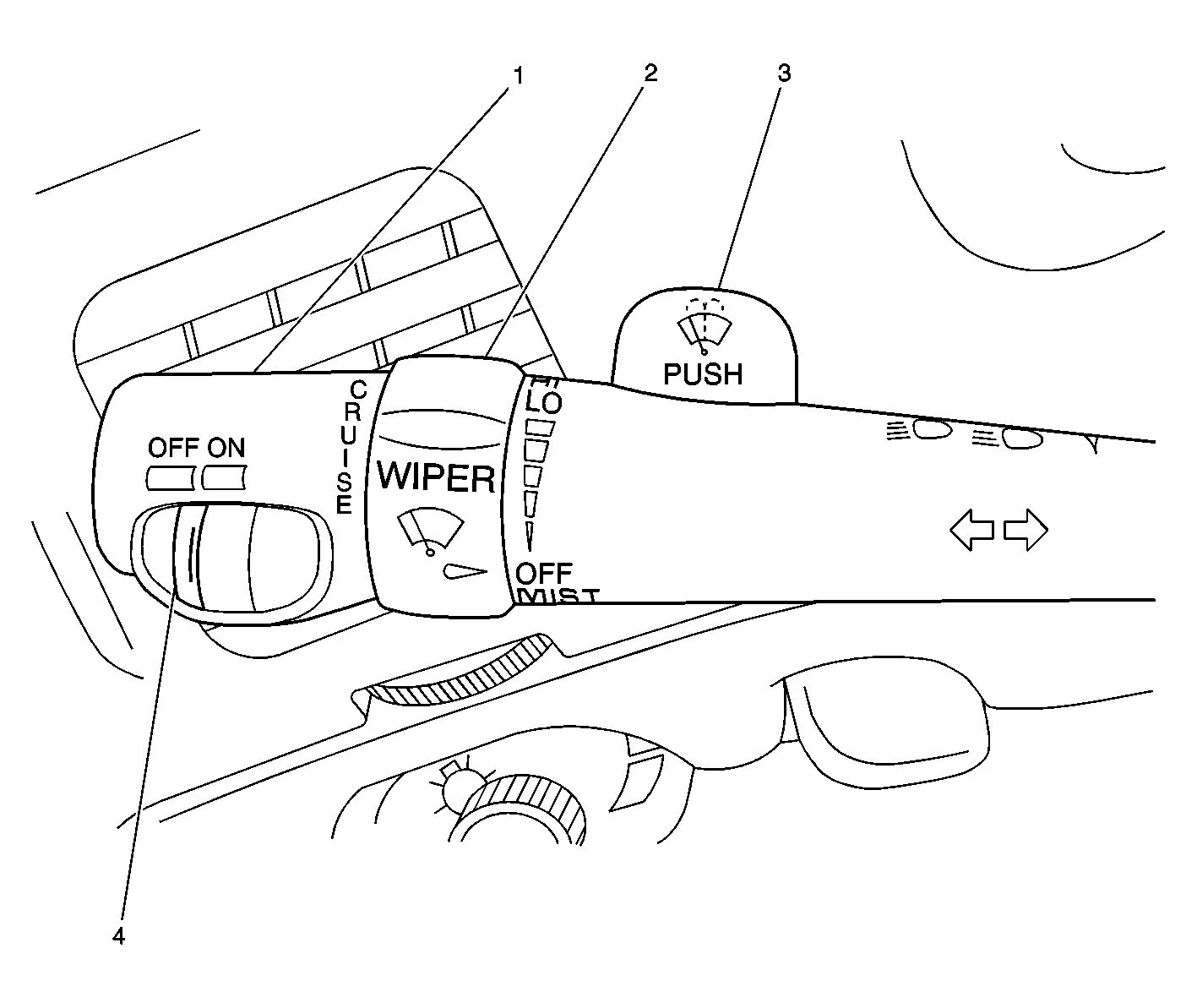

Fig 3: Turn Signal/Multifunction Switch (Impala)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Malfunction Switch
2	Wiper Switch
3	Washer Switch
4	Cruise Control ON/OFF Switch

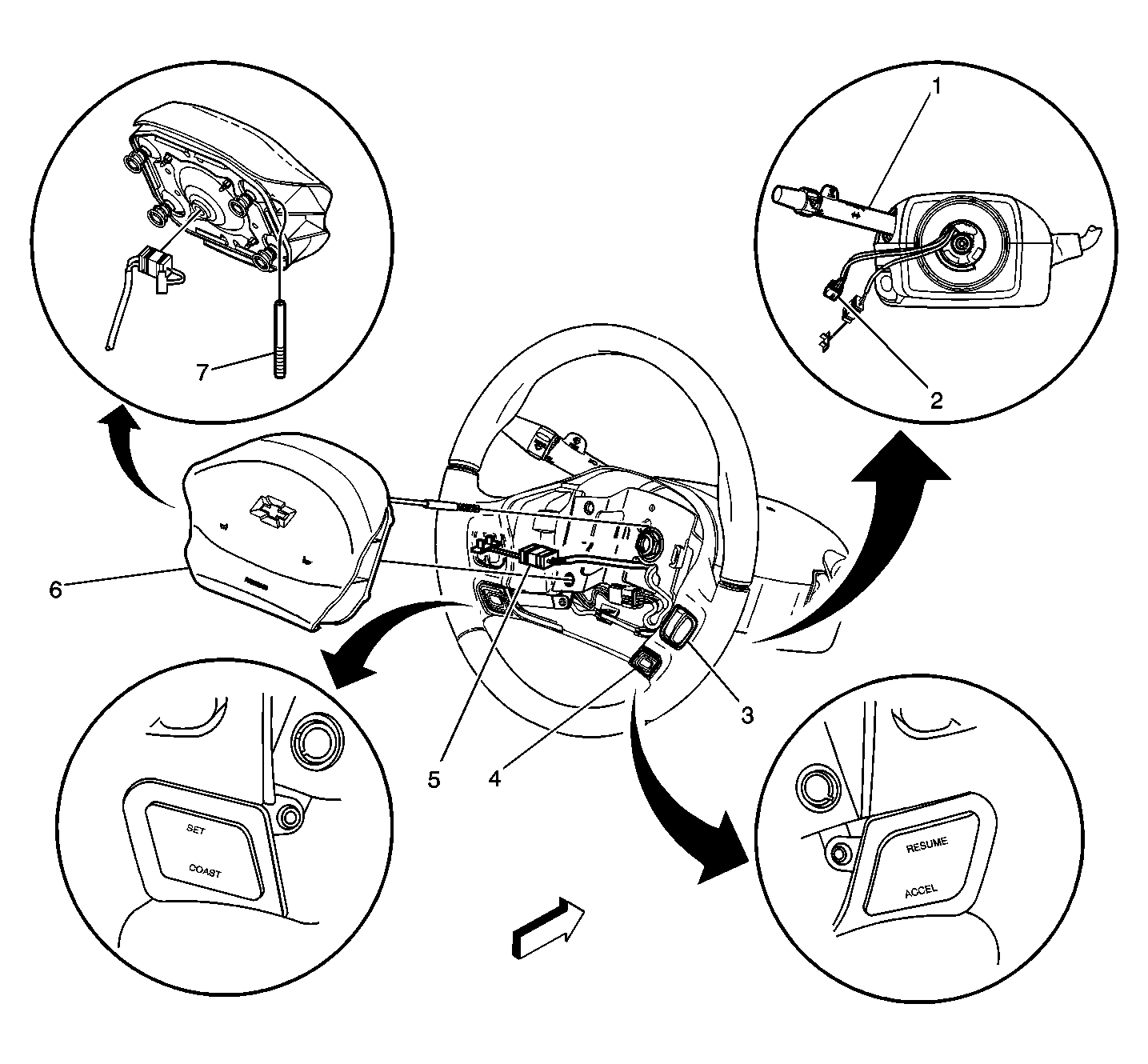

Fig 4: Steering Wheel (Impala)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Inflatable Restraint Steering Wheel Module Coil Connector C5
3	Steering Wheel Controls-Right (Radio)
4	Steering Wheel Controls-Right (Cruise Control)
5	Inflatable Restraint Steering Wheel Module Coil Connector
6	Inflatable Restraint Steering Wheel Module
7	Horn Switch Spring Loaded Contact

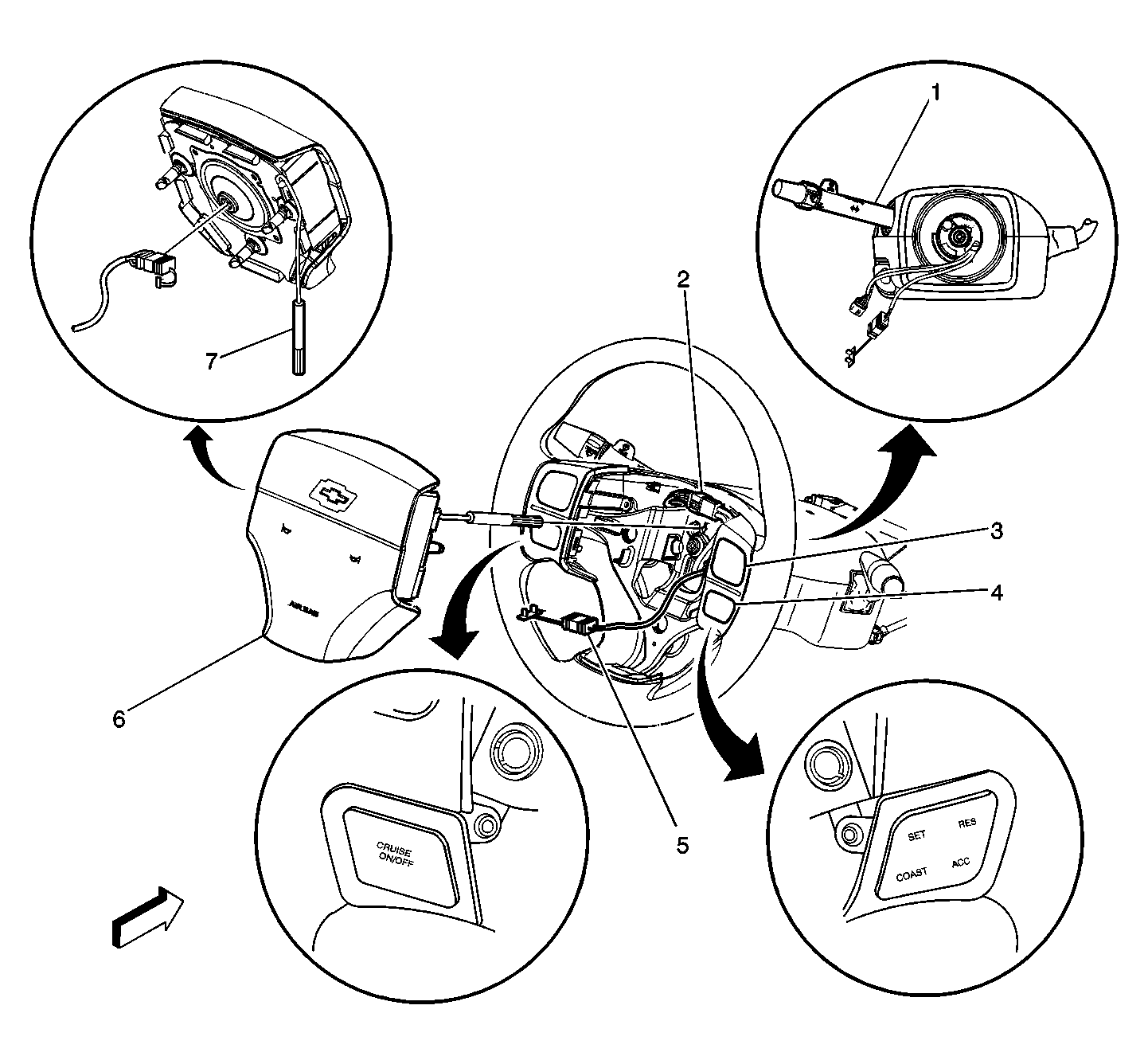

Fig 5: Steering Wheel (Monte Carlo)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Inflatable Restraint Steering Wheel Module Coil Connector C5
3	Steering Wheel Controls-Right (Radio)
4	Steering Wheel Controls-Right (Cruise Control)
5	Inflatable Restraint Steering Wheel Module Coil Connector
6	Inflatable Restraint Steering Wheel Module
7	Horn Switch Spring Loaded Contact
