Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the cruise control cable to the engine.

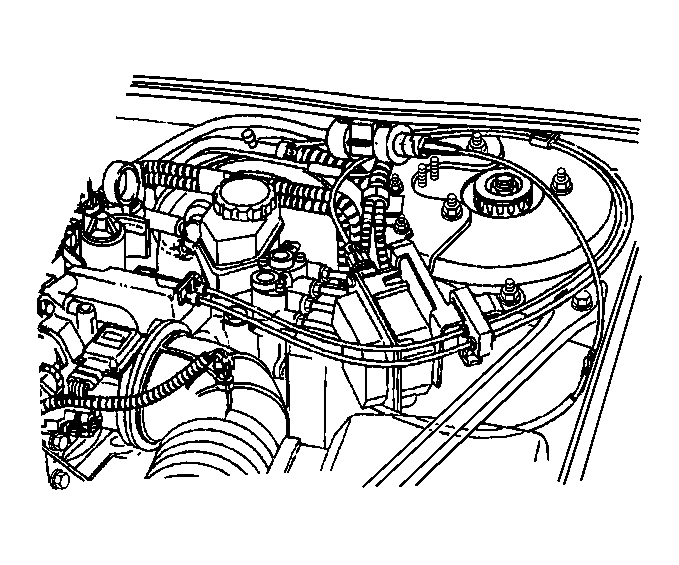

    Fig 1: Cruise Control Cable Routing
    GM301682Courtesy of GENERAL MOTORS CORP.
  2. Install the cruise control cable to the module by rotating the cruise control cable clockwise.
    3. Fig 2: Cruise Control Module & Cable
    GM301671Courtesy of GENERAL MOTORS CORP.
  3. Install the cruise control cable to the cruise control cable retainers.
    4. IMPORTANT: Ensure the module strap is not twisted during installation of the cable.
    IMPORTANT: The cruise control cable does not require mechanical adjusting after the replacement. The cruise control module internally adjusts the cable.
  4. Install the cruise control cable to the cruise control module cable strap.
    5. Fig 3: Cruise Control Cable & Module Strap
    GM301717Courtesy of GENERAL MOTORS CORP.
  5. Install the cruise control cable to the throttle body lever and the accelerator control cable bracket.
    6. Fig 4: Cruise Control & Accelerator Control Cable Bracket (3.8L)
    GM301687Courtesy of GENERAL MOTORS CORP.
