Installation Procedure
WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

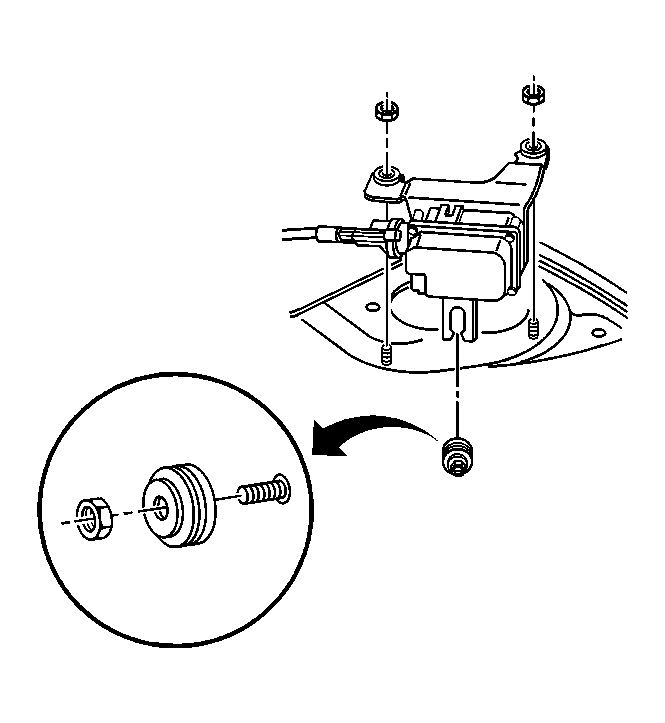

- Install the cruise control module on the mounting studs located on the shock tower.
- Install the cruise control module mounting nuts.
Tighten: Tighten the cruise control module to shock tower nuts to 2 N.m (18 lb in).

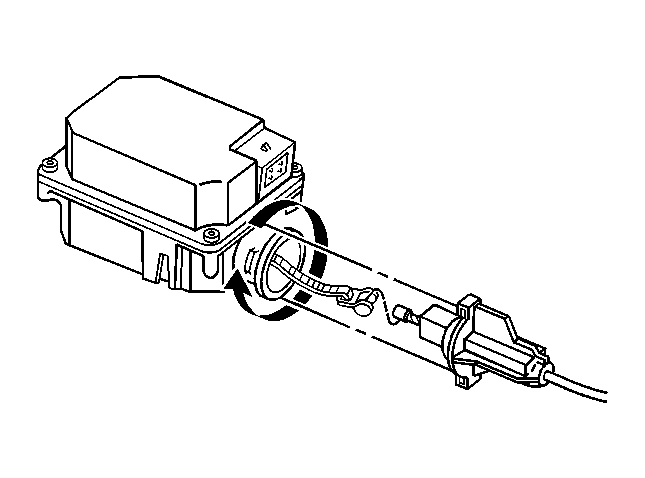

- Connect the cruise control module electrical connector.
- Install the cruise control cable to the cruise control module. Refer to Cruise Control Cable Replacement (3.4L) Cruise Control Cable Replacement (3.8L) .
NOTE:
Refer to Fastener Notice in Cautions and Notices.
IMPORTANT:
The cruise control cable does not require mechanical adjusting after the replacement. The cruise control module internally adjusts the cable.
