Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the heater module to the front seat.
  2. Connect the electrical harness connector (1) to the heater module (2).

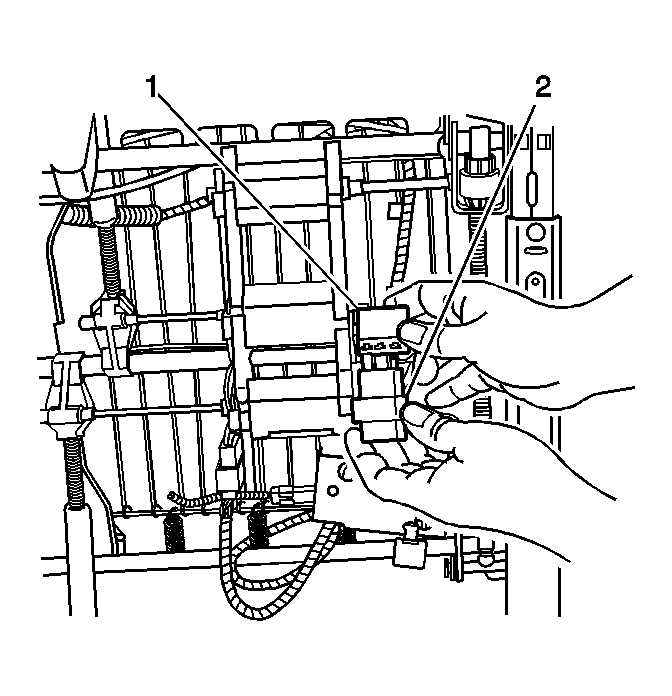

    3. Fig 1: Electrical Harness Connector & Heater Module
    GM816209Courtesy of GENERAL MOTORS CORP.
  3. Position the module on the frame and slide the module rearward until the module locks into place.
  4. Lower the seat.
  5. Connect the seat electrical harness connector.
    6. NOTE: Refer to Fastener Notice in Cautions and Notices.
  6. Install the bolts that secure the front bucket seat adjuster to the floor pan.

    Tighten:  Tighten the bolts to 42 N.m (31 lb ft).

  7. Reposition the front seat to the original position.
