Assembly Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the coil spring and upper strut mount to the J 45400  . See Special Tools and Equipment .
  2. Turn the spring compressor forcing screw (1) until the coil spring is compressed.

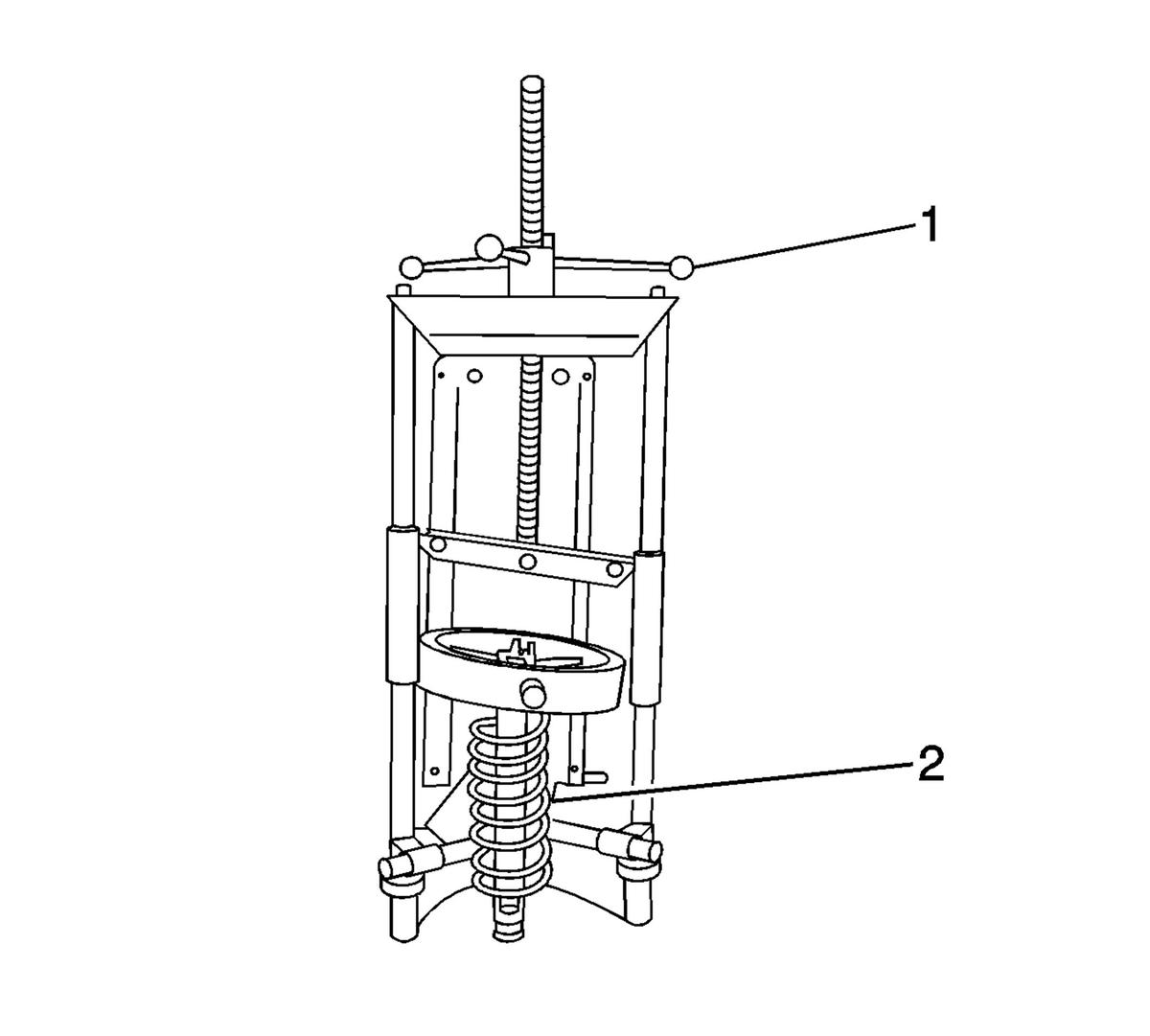

    3. Fig 1: View Of Compressor Forcing Screw & Coil Spring
    GM743241Courtesy of GENERAL MOTORS CORP.
  3. Install the strut to the coil spring and upper strut mount.
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the strut retaining nut.

    Using the J 42991  and a 45 TORX® socket, install the strut mount nut. See Special Tools and Equipment .

    Tighten:  Tighten the strut mount nut to 85 N.m (63 lb ft).

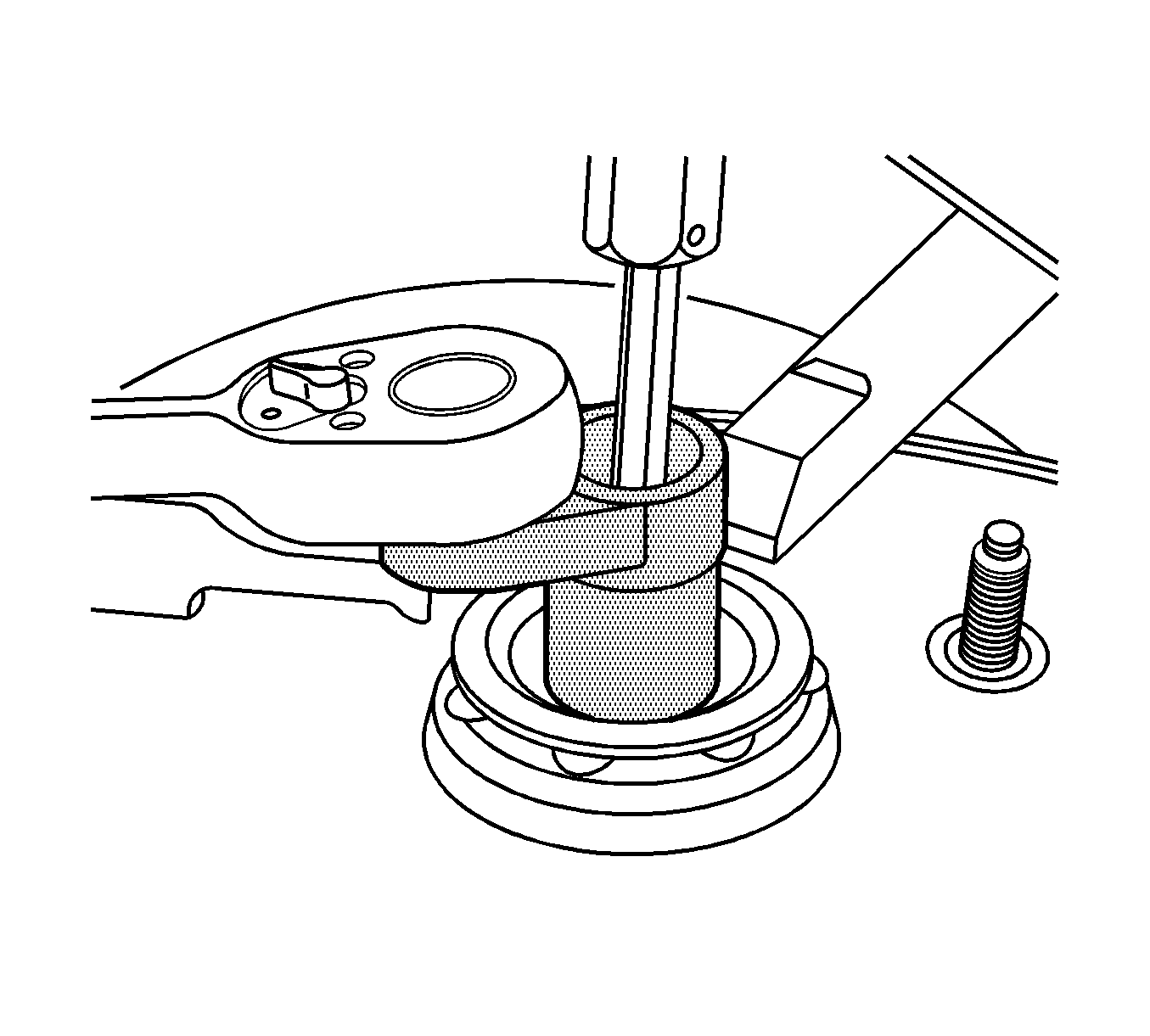

    5. Fig 2: Removing/Installing Strut Retaining Nut
    GM1079158Courtesy of GENERAL MOTORS CORP.
  5. Remove the strut from the J 45400  . See Special Tools and Equipment .
  6. Install the strut to the vehicle. Refer to Strut Assembly Replacement .
