Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Monte Carlo and 2004 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

Position the control module to the sunroof module.
Connect the electrical connectors to the ends of the control module.

Fig 1: Identifying Sunroof Control Module

Courtesy of GENERAL MOTORS CORP.

Install the control module to the sunroof module by sliding it to the right to engage the retainers.

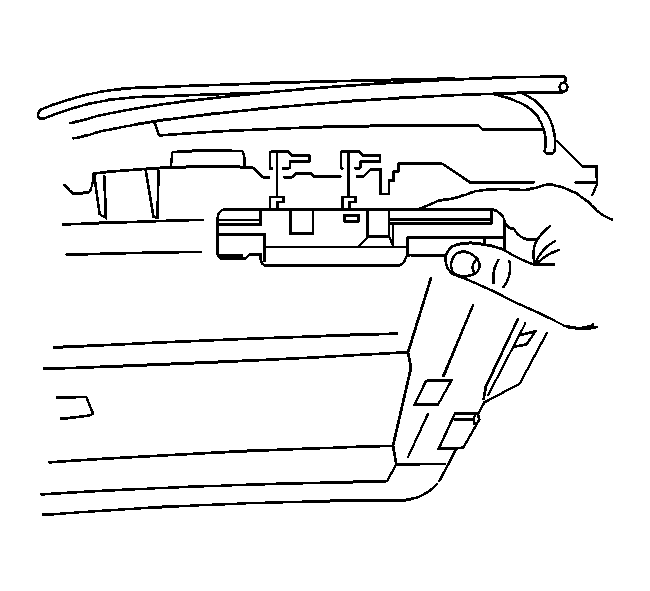

Fig 2: Engaging Sunroof Control Module Retainers

Courtesy of GENERAL MOTORS CORP.

Install the nylon tie straps at both ends of the control module (2).

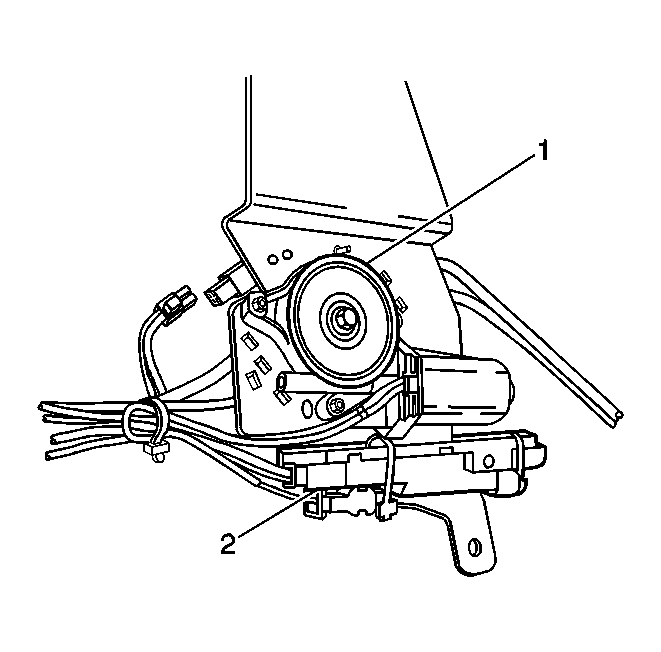

Fig 3: Sunroof Motor & Control Module

Courtesy of GENERAL MOTORS CORP.

Check the operation of the sunroof module.
Install the headliner. Refer to Headliner Replacement (Impala) or Headliner Replacement (Monte Carlo) in Interior Trim.
