Power and Grounding Component Views

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Right Front of Engine Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Battery
2	Fuse Block - Underhood

Fig 2: Left Side of the I/P Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ignition Cylinder Housing
2	Ignition Lock Cylinder
3	Theft Deterrent Exciter Module

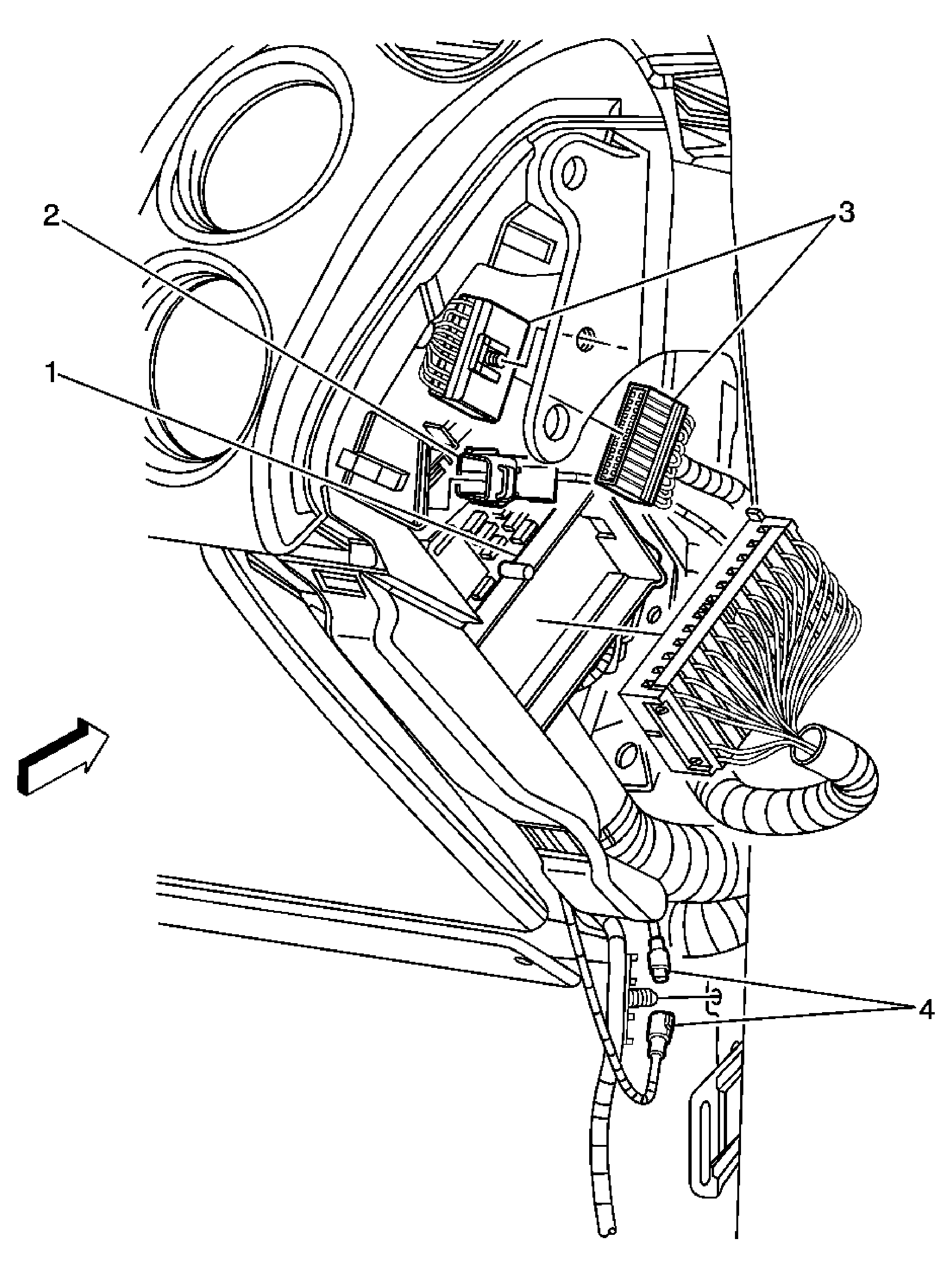

Fig 3: Right Side of the I/P Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - I/P
2	Inflatable Restraint I/P Module, Connector
3	C200
4	C202
