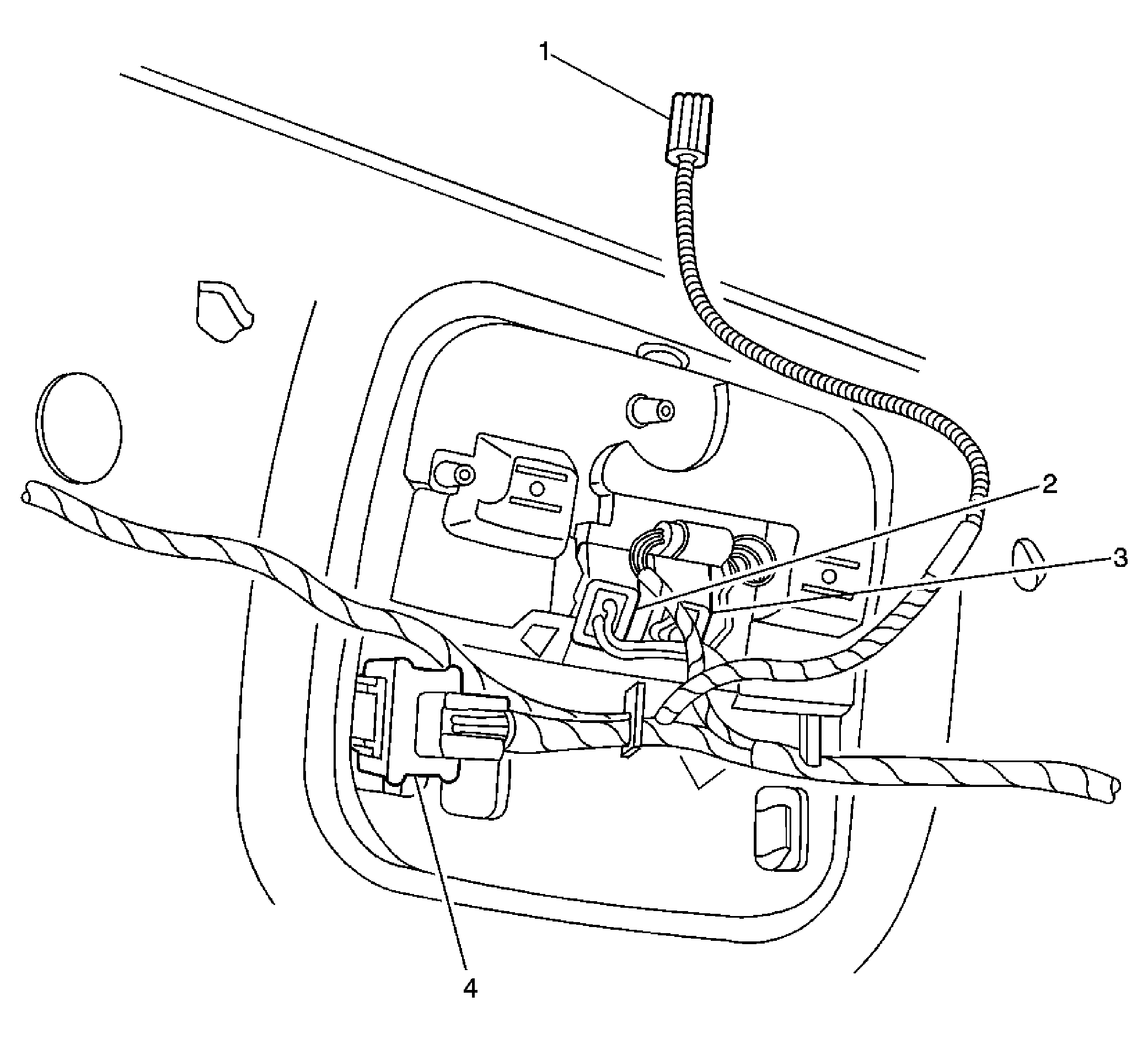

Lighting Systems Component Views

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

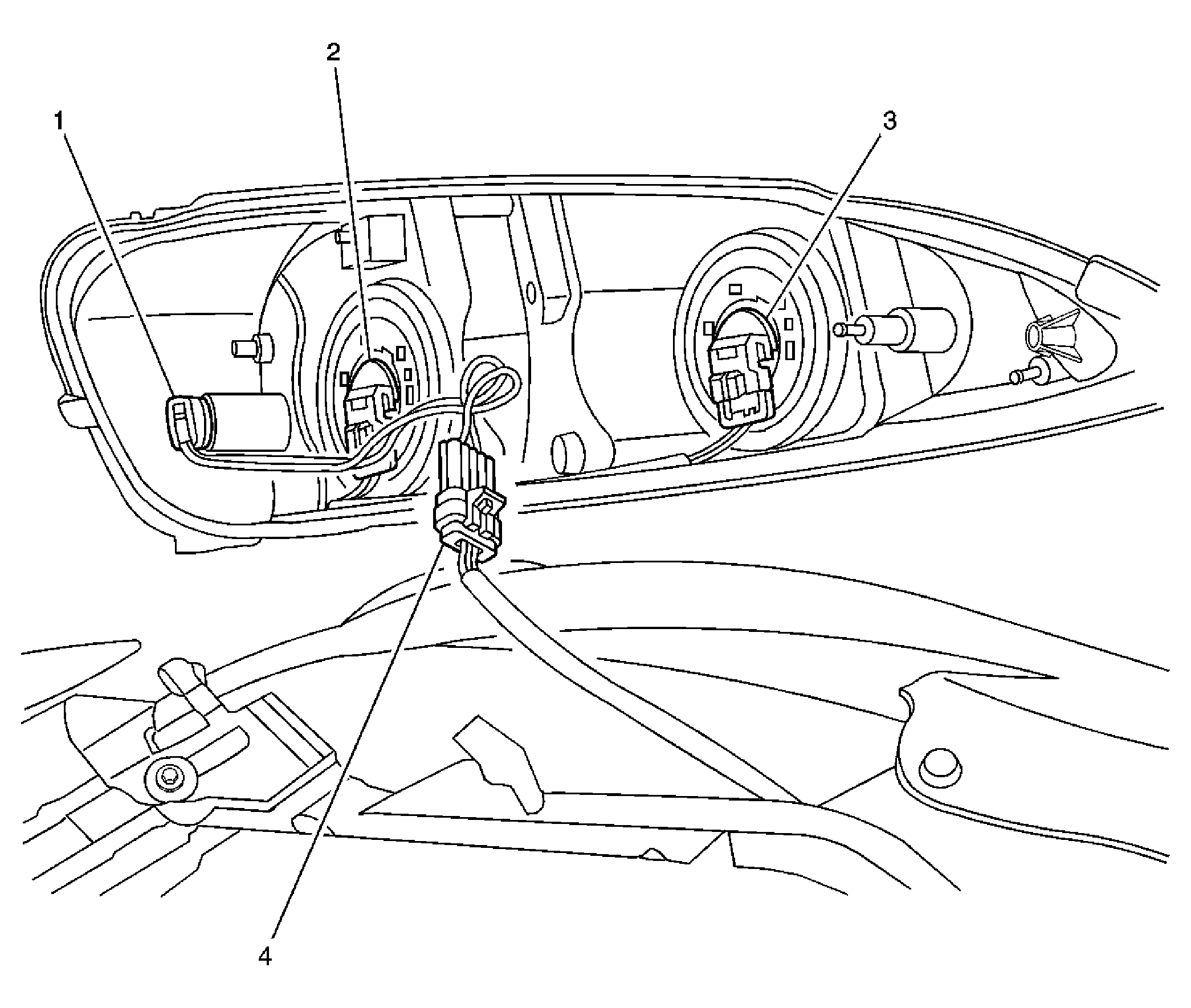

Fig 1: Left Front Of The Vehicle Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Marker Lamp - LF
2	Headlamp - Low Beam - Left
3	Headlamp - High Beam - Left
4	C141

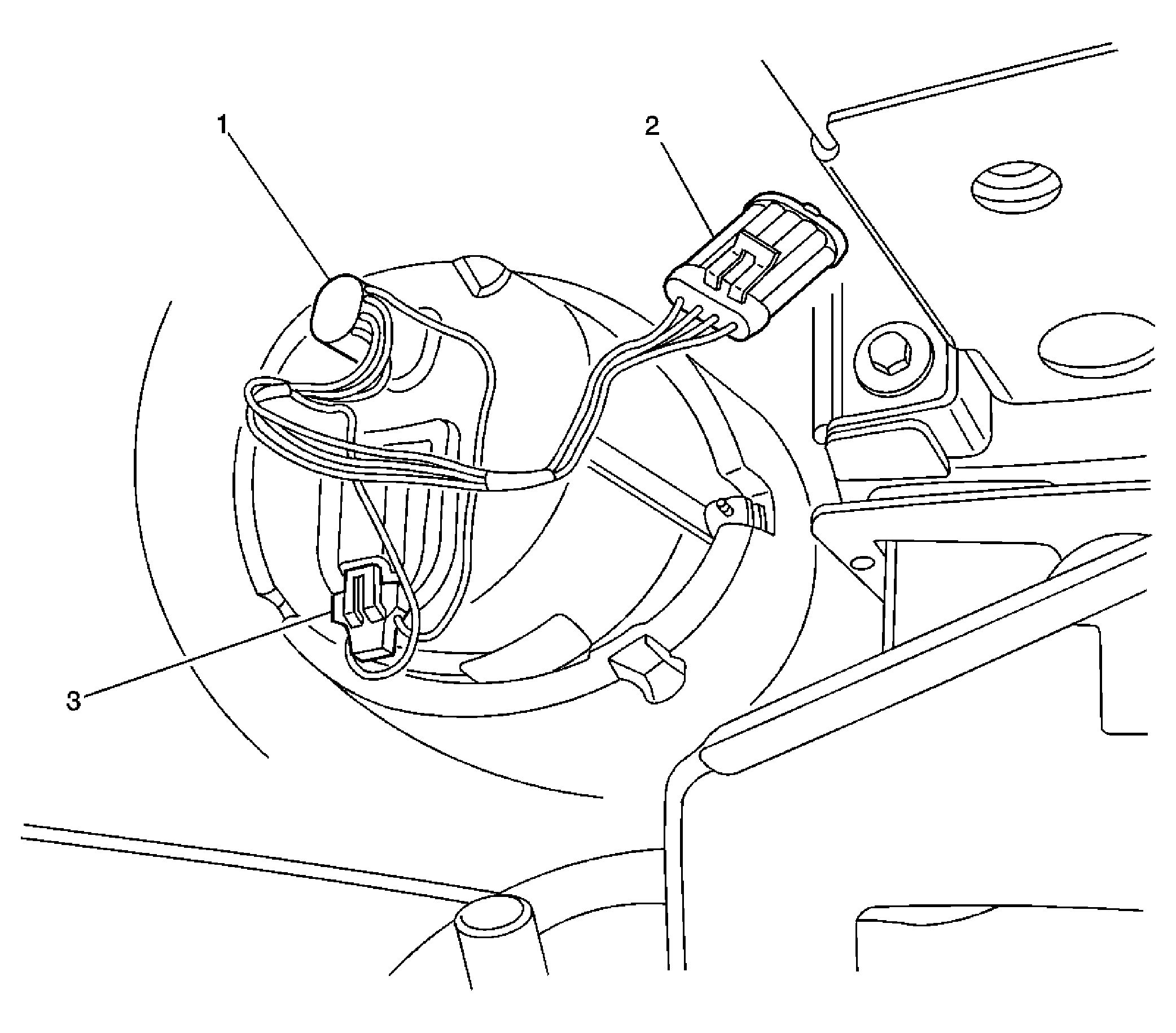

Fig 2: Right Front Of The Vehicle Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp - High Beam - Right
2	Headlamp - Low Beam - Right
3	Marker Lamp - RF
4	C142

Fig 3: Left Front Frame And Underbody Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park/Turn Signal Lamp - LF
2	C143
3	Fog Lamp - LF

Fig 4: Right Front Frame and Underbody Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C144
2	Park/Turn Signal Lamp - RF
3	Fog Lamp - RF

Fig 5: Top Of I/P Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - Center (U87)
2	Remote Control Door Lock Receiver (RCDLR)
3	Ambient Light Sensor
4	Theft LED

Fig 6: Left Side Of The I/P Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Multifunction Turn Signal Lever
2	TAP Shift Switch - Left
3	Hazard Warning Switch
4	Instrument Panel Cluster (IPC)
5	TAP Shift Switch - Right
6	Windshield Wiper/Washer Switch
7	Ignition Switch
8	Driver Information Center (DIC)
9	Radio
10	HVAC Control Module
11	Heated Seat Switch - Front Passenger
12	Rear Defogger Switch
13	Heated Seat Switch - Driver
14	Steering Wheel Controls - Right
15	Cruise Control Switch
16	Inflatable Restraint Steering Wheel Module
17	Tilt Steering Wheel Lever
18	Steering Wheel Controls - Left
19	Interior Lamp Switch

Fig 7: Left Footwell Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Accelerator Pedal Position (APP) Sensor
2	Brake Pedal Position Sensor

Fig 8: Lower Right Of The I/P Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Blower Motor Control Processor
2	I/P Courtesy Lamp - Right

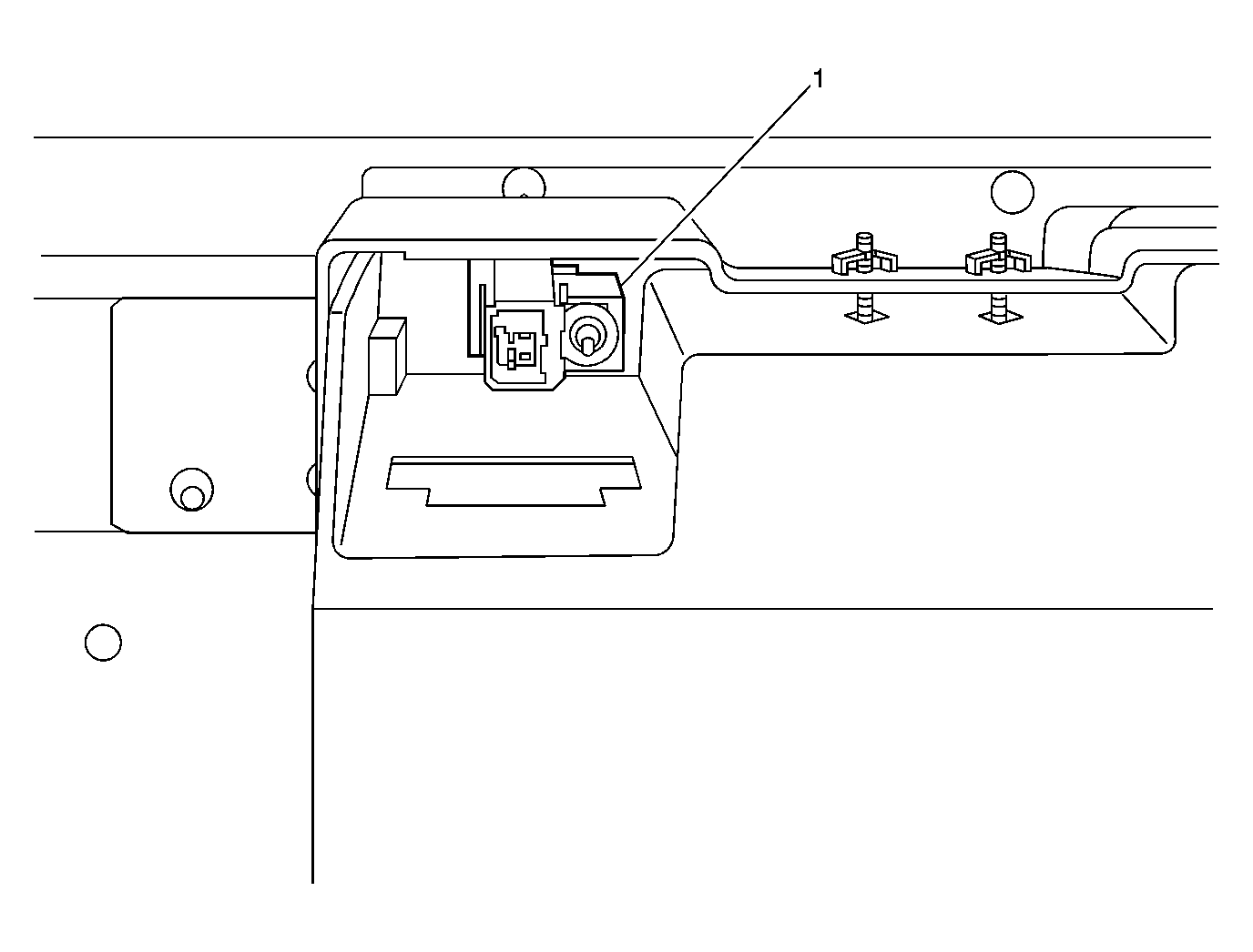

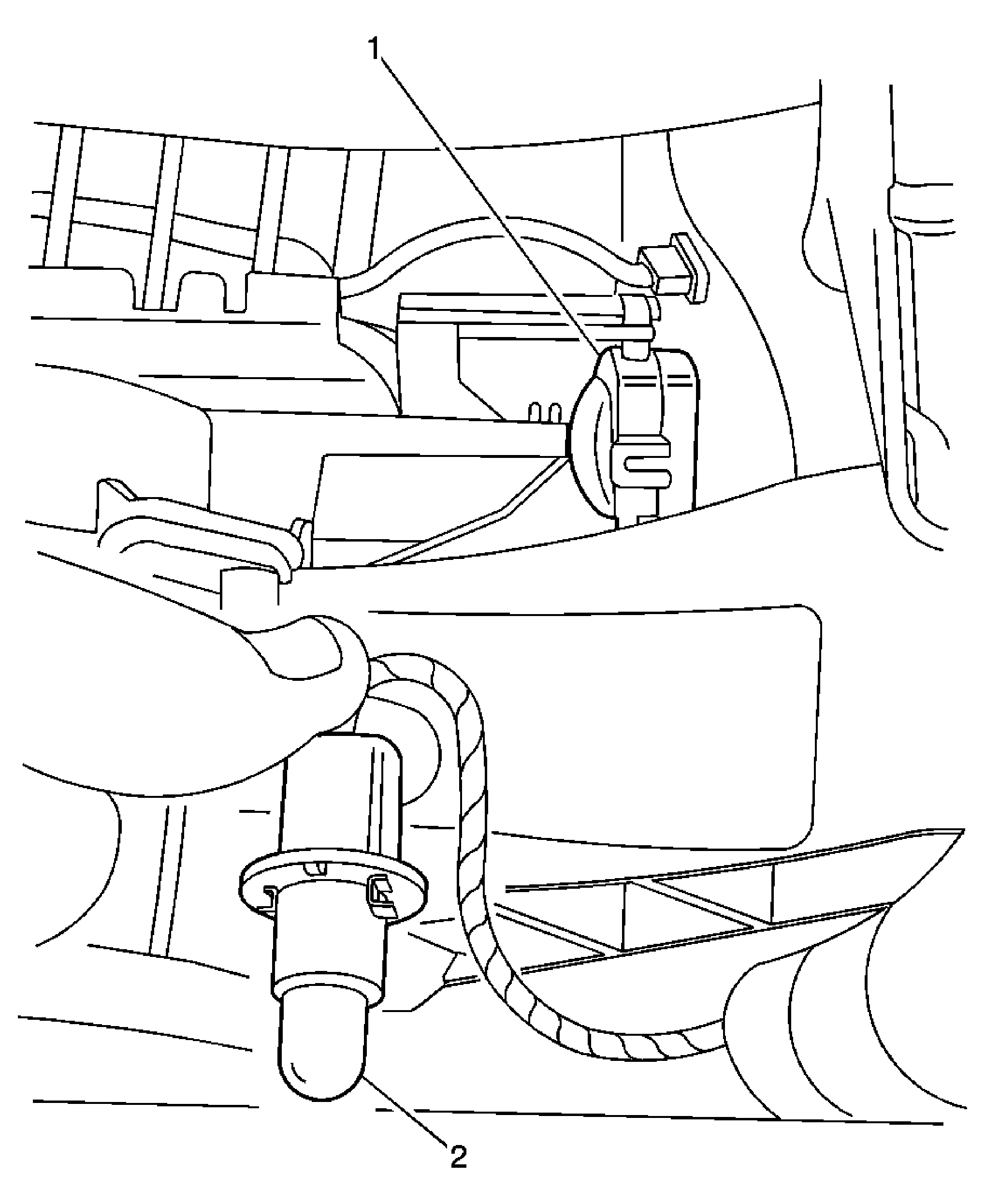

Fig 9: Behind I/P Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Compartment Lamp and Switch

Fig 10: Inside Center Console Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/T Shift Lock Control Solenoid
2	PRNDL Lamp
3	C241
4	C240

Fig 11: Above Front Windshield Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vanity Mirror Lamp - Left Connector
2	Left Sunshade
3	Right Sunshade
4	Vanity Mirror Lamp - Right Connector
5	Vanity Mirror Lamp - Right
6	Inside Rearview Mirror
7	Vanity Mirror Lamp - Left

Fig 12: Roof Headliner, Front Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inside Rearview Mirror Connector
2	LH Courtesy/Reading Lamp (TR9)
3	RH Courtesy/Reading Lamp (TR9)
4	Sunroof Switch

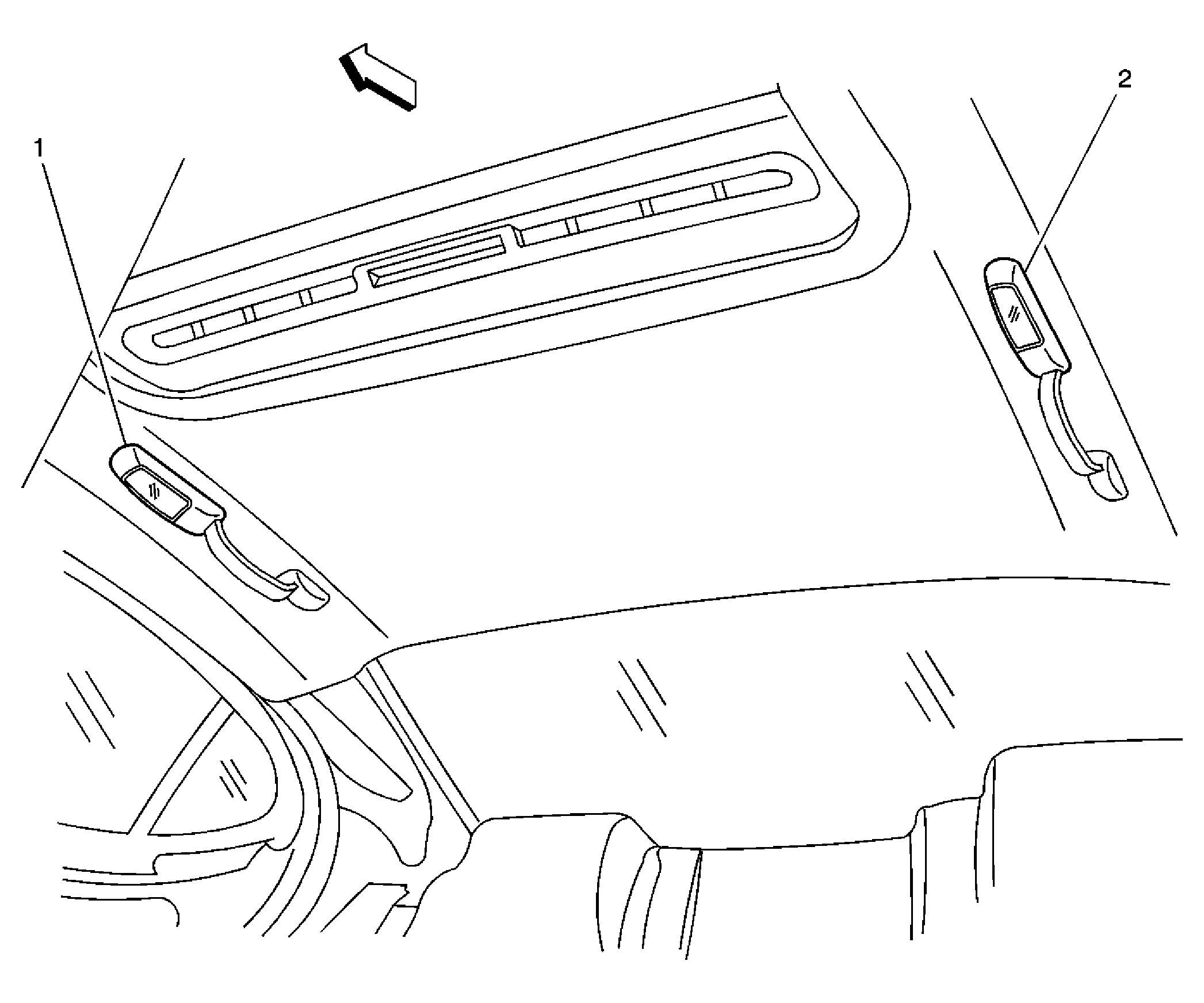

Fig 13: Roof Headliner Rear Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Courtesy/Reading Lamp - Left
2	Courtesy/Reading Lamp - Right

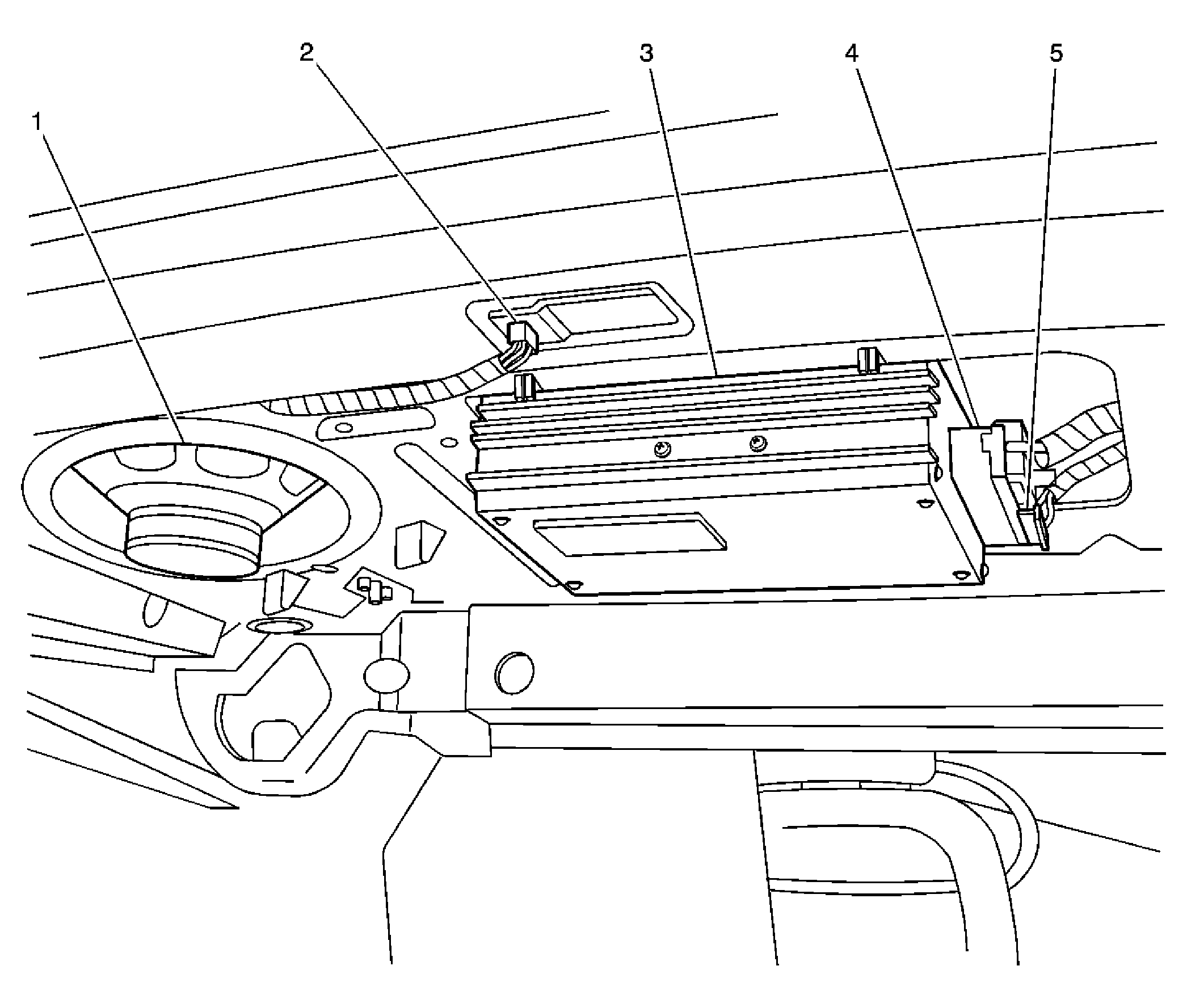

Fig 14: Left Side Of The Rear Window Shelf Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - LR (Speaker - RR Similar)
2	Rear Compartment Courtesy Lamp
3	Audio Amplifier (U87)
4	Audio Amplifier - C2 (U87)
5	Audio Amplifier - C1 (U87)

Fig 15: Left Rear Lamp Assembly Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tail Lamp - Left
2	Tail/Stop and Turn Signal Lamp - Left
3	Marker Lamp - LR
4	C401

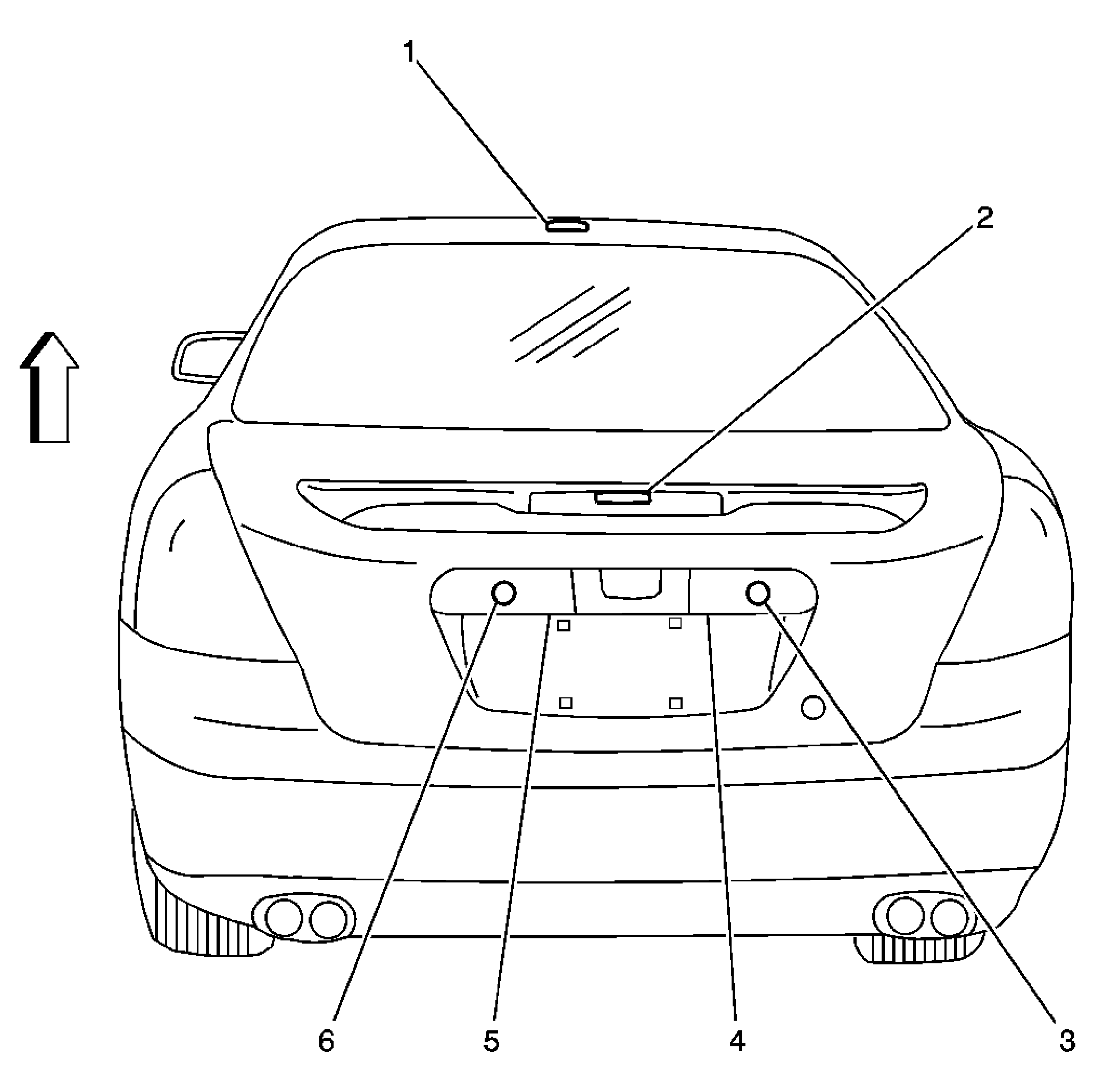

Fig 16: Rear Of Vehicle Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Digital Radio Antenna
2	Center High Mounted Stop Lamp (CHMSL)
3	Backup Lamp - Right
4	License Lamp - Right
5	License Lamp - Left
6	Backup Lamp - Left

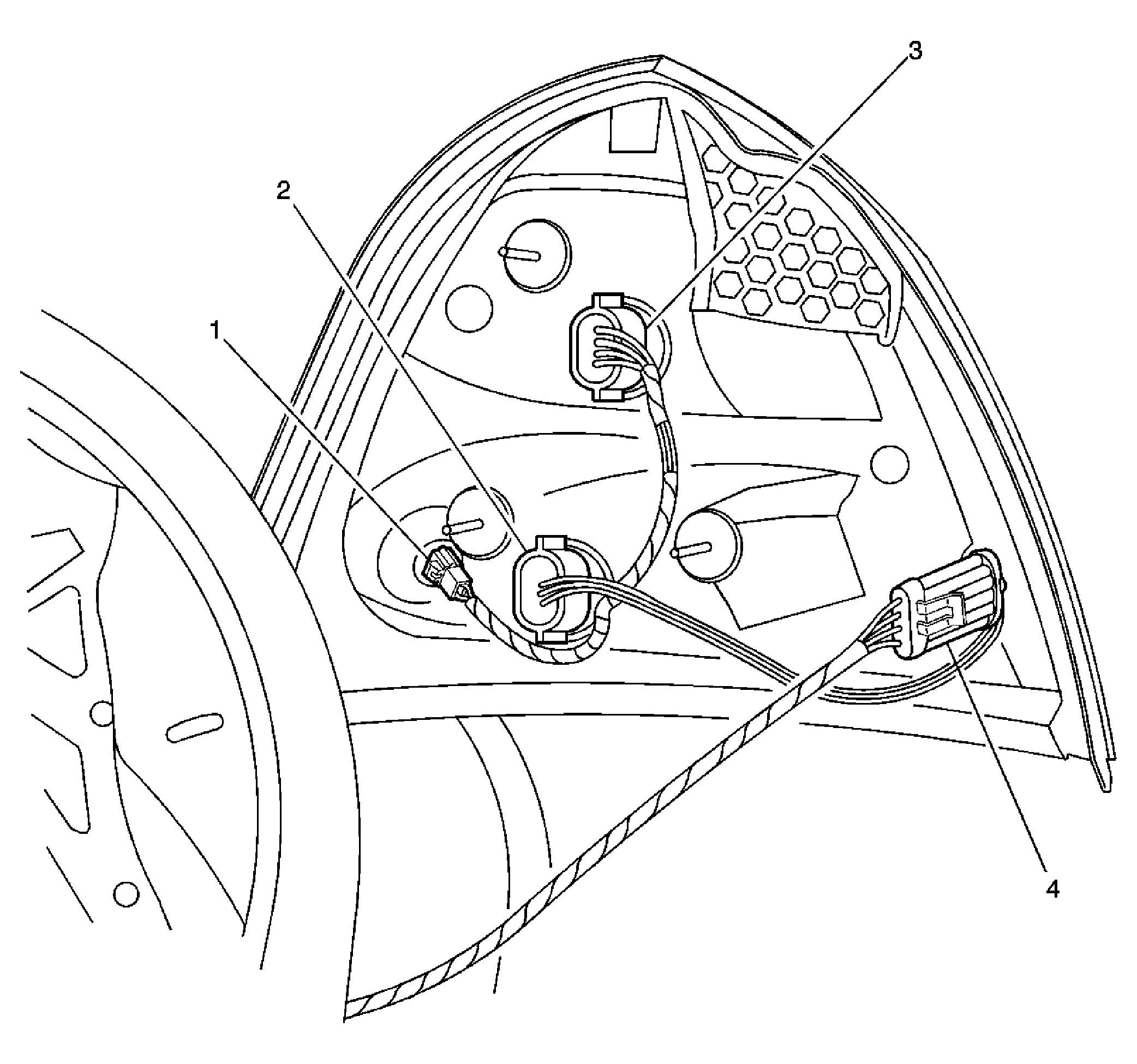

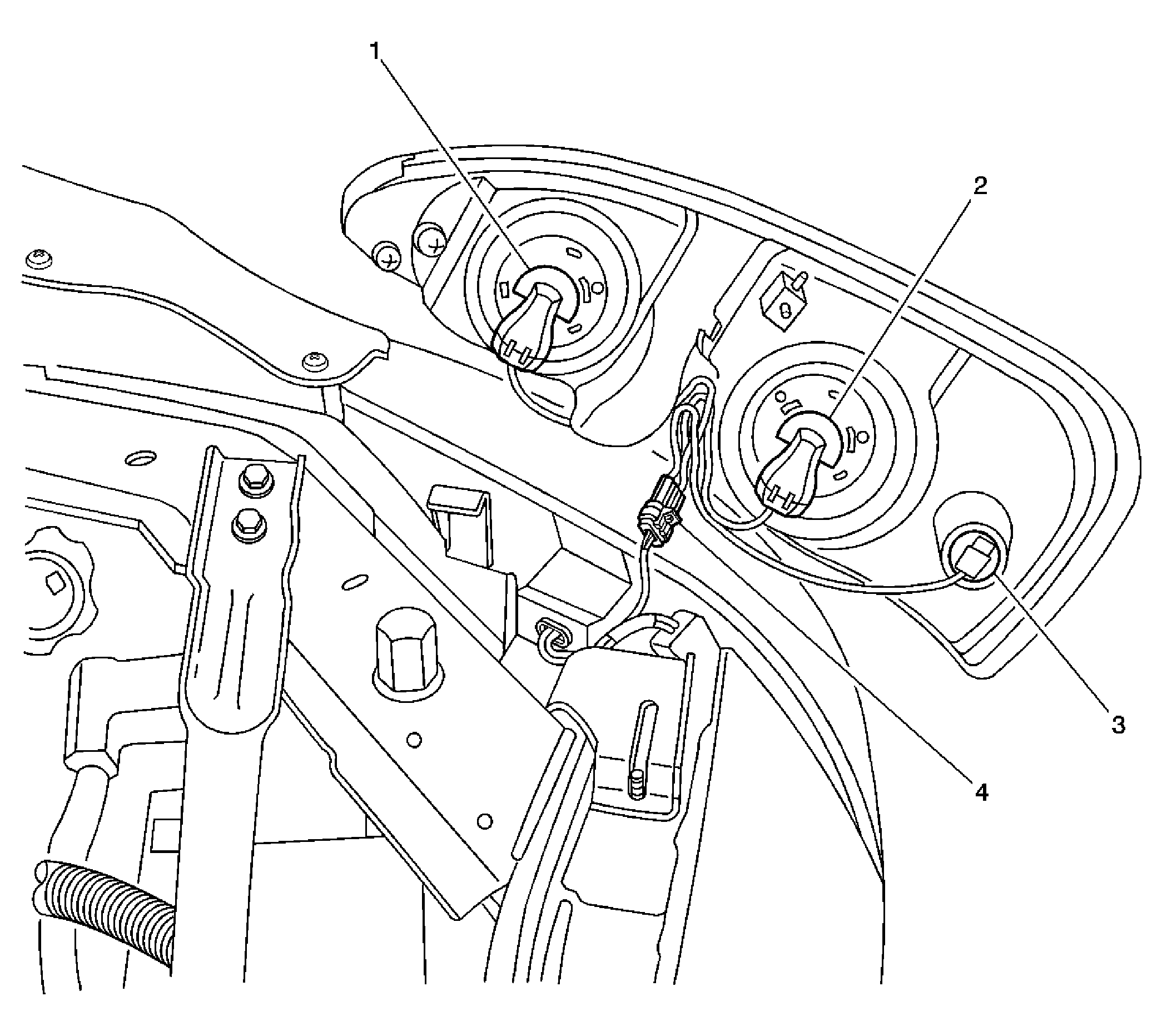

Fig 17: Right Rear Lamp Assembly Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Marker Lamp - RR
2	Tail/Stop and Turn Signal Lamp - Right
3	Tail Lamp - Right
4	C402
