Power Seat Systems Component Views

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Left Side Of The I/P Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Multifunction Turn Signal Lever
2	TAP Shift Switch - Left
3	Hazard Warning Switch
4	Instrument Panel Cluster (IPC)
5	TAP Shift Switch - Right
6	Windshield Wiper/Washer Switch
7	Ignition Switch
8	Driver Information Center (DIC)
9	Radio
10	HVAC Control Module
11	Heated Seat Switch - Front Passenger
12	Rear Defogger Switch
13	Heated Seat Switch - Driver
14	Steering Wheel Controls - Right
15	Cruise Control Switch
16	Inflatable Restraint Steering Wheel Module
17	Tilt Steering Wheel Lever
18	Steering Wheel Controls - Left
19	Interior Lamp Switch

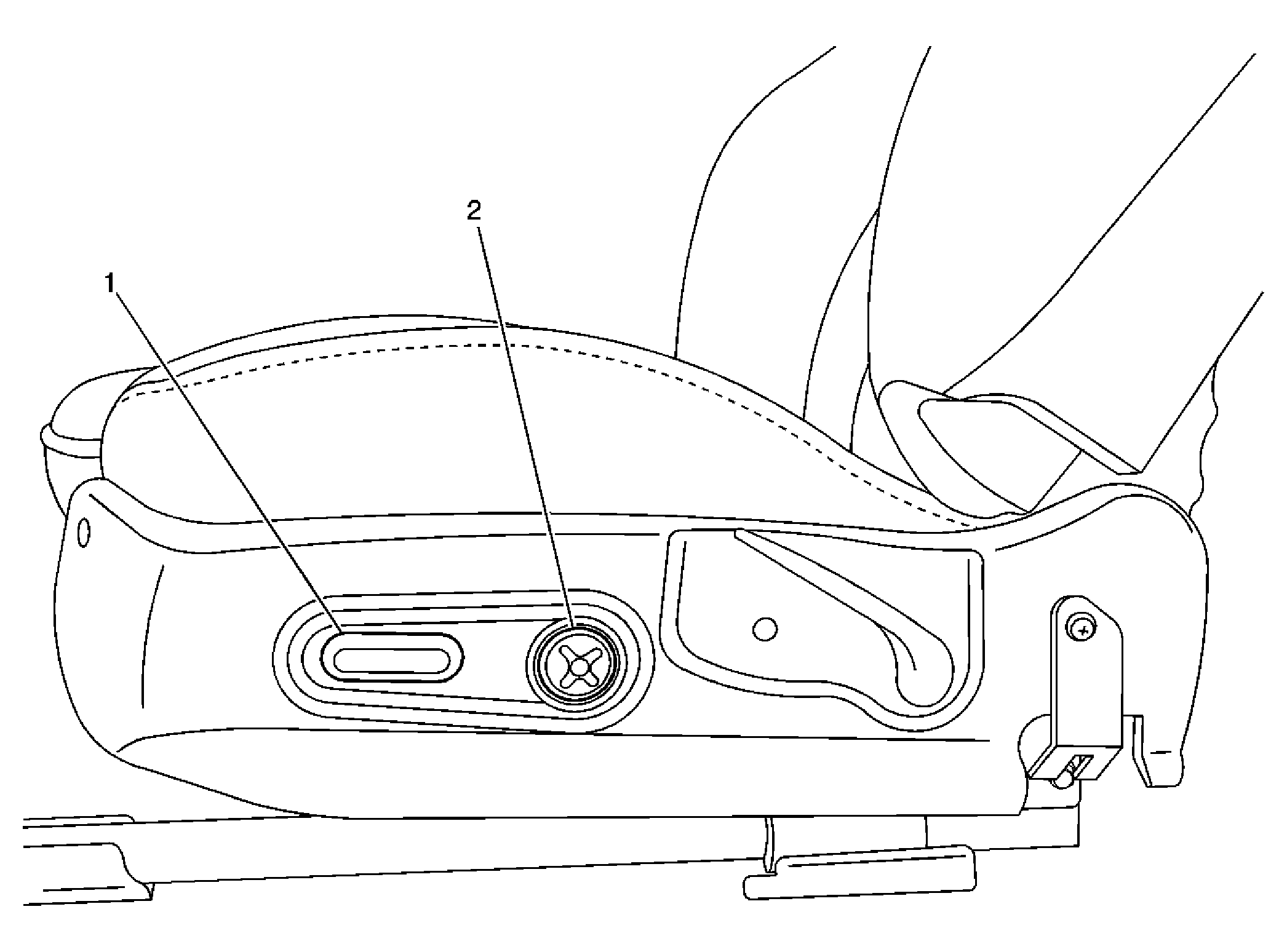

Fig 2: Side Of The Driver Seat Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Adjuster Switch - Driver
2	Seat Lumbar Switch - Driver

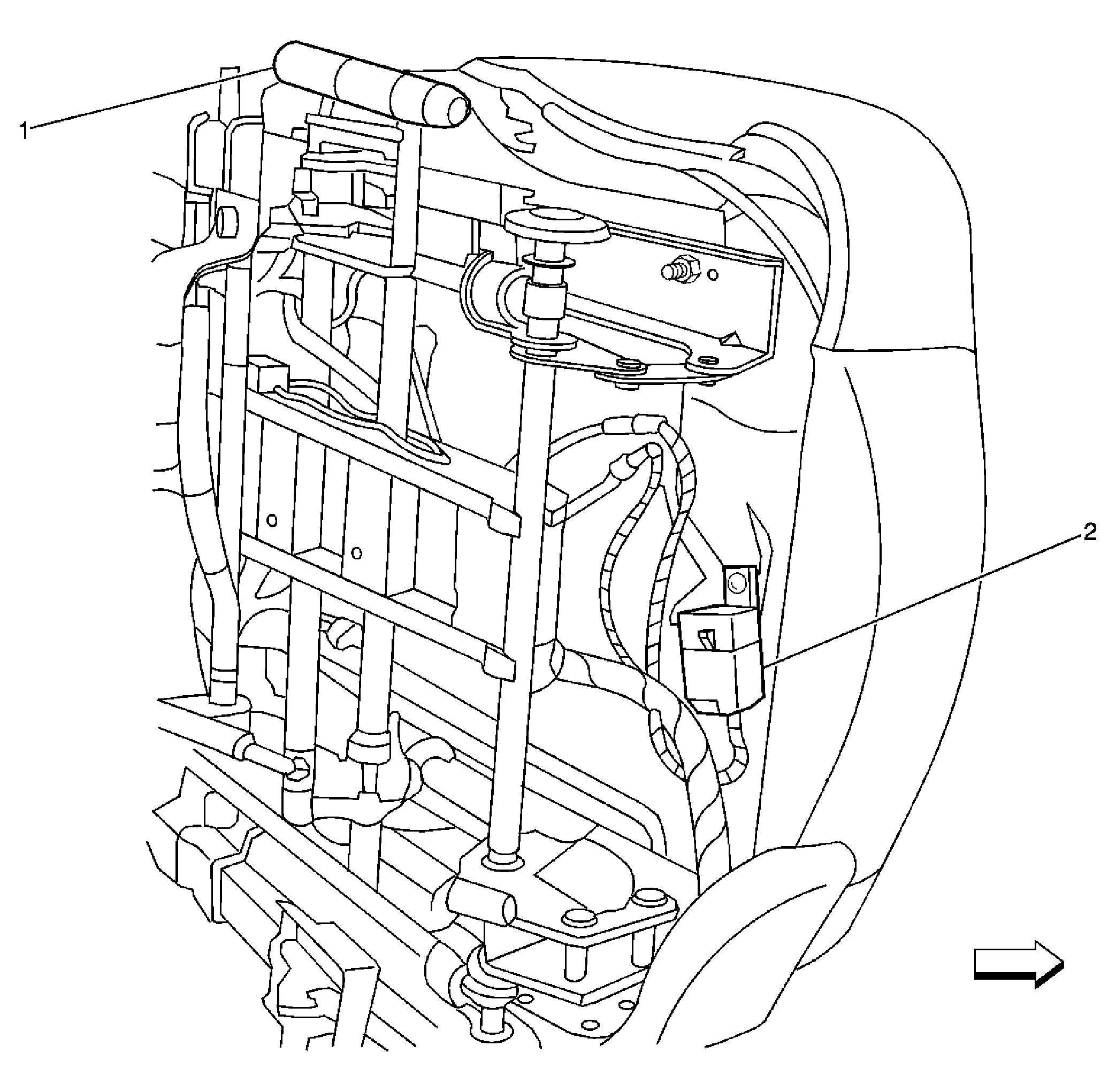

Fig 3: Under Front Of Driver Seat Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Pretensioner - Left (Seat Belt Pretensioner - Right, Similar)
2	Heated Seat Relay - Driver (Heated Seat Relay - Front Passenger, Similar)

Fig 4: Under The Driver Seat Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Adjuster Motor Assembly - Driver Connector
2	Seat Belt Switch, Connector
3	Front Vertical Motor
4	Horizontal Motor
5	Heated Seat Element - Driver Back
6	C311
7	Hinge
8	C316
9	C312

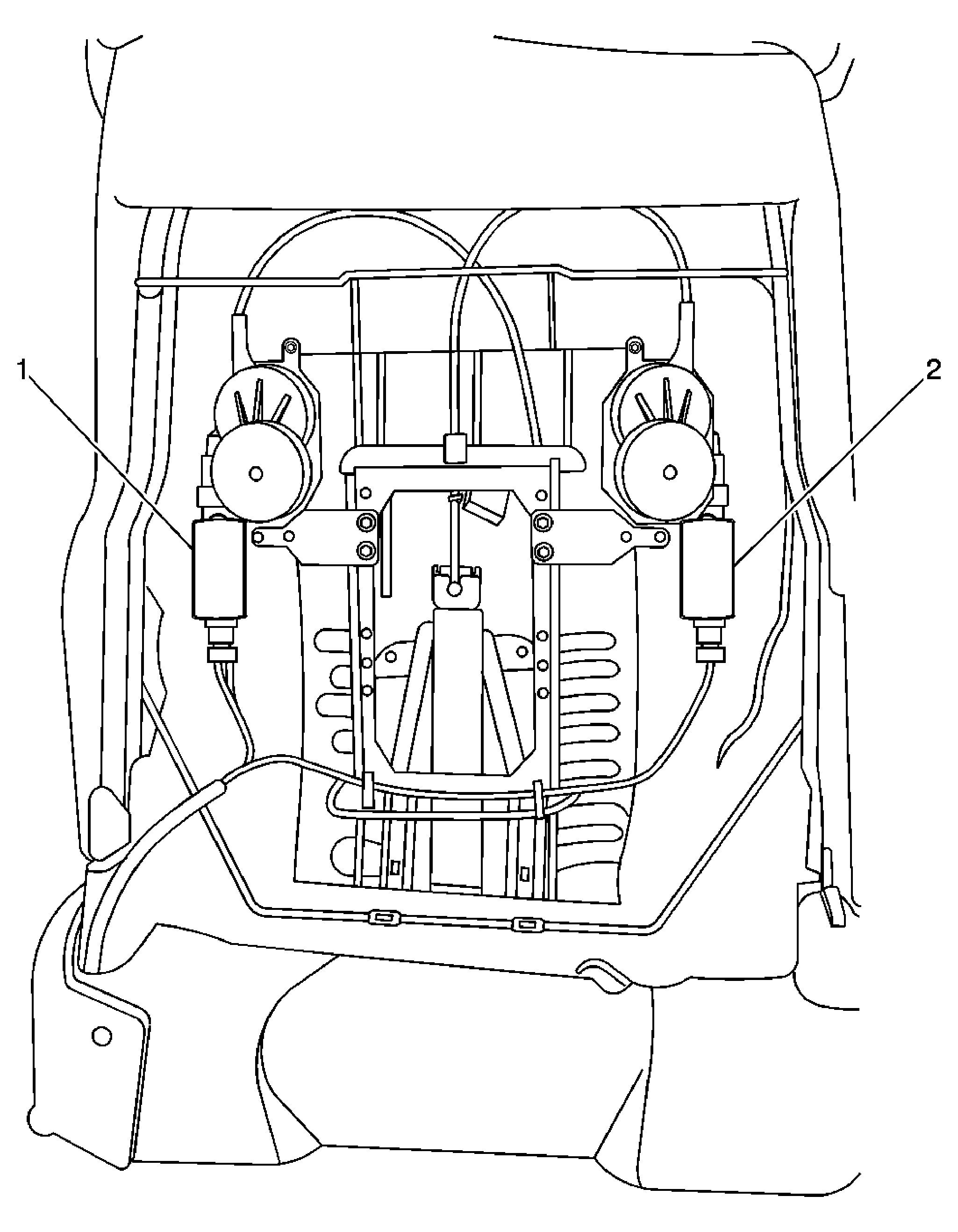

Fig 5: Rear Of The Driver Seat Back Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Lumbar Vertical Motor
2	Seat Horizontal Motor - Driver

Fig 6: Passenger Heated Seat Elements, Driver Seat Similar Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Seat Element - Front Passenger Back
2	Heated Seat Element - Front Passenger Cushion (Under Seat Cover)
3	Seat Cover, Partially Removed
