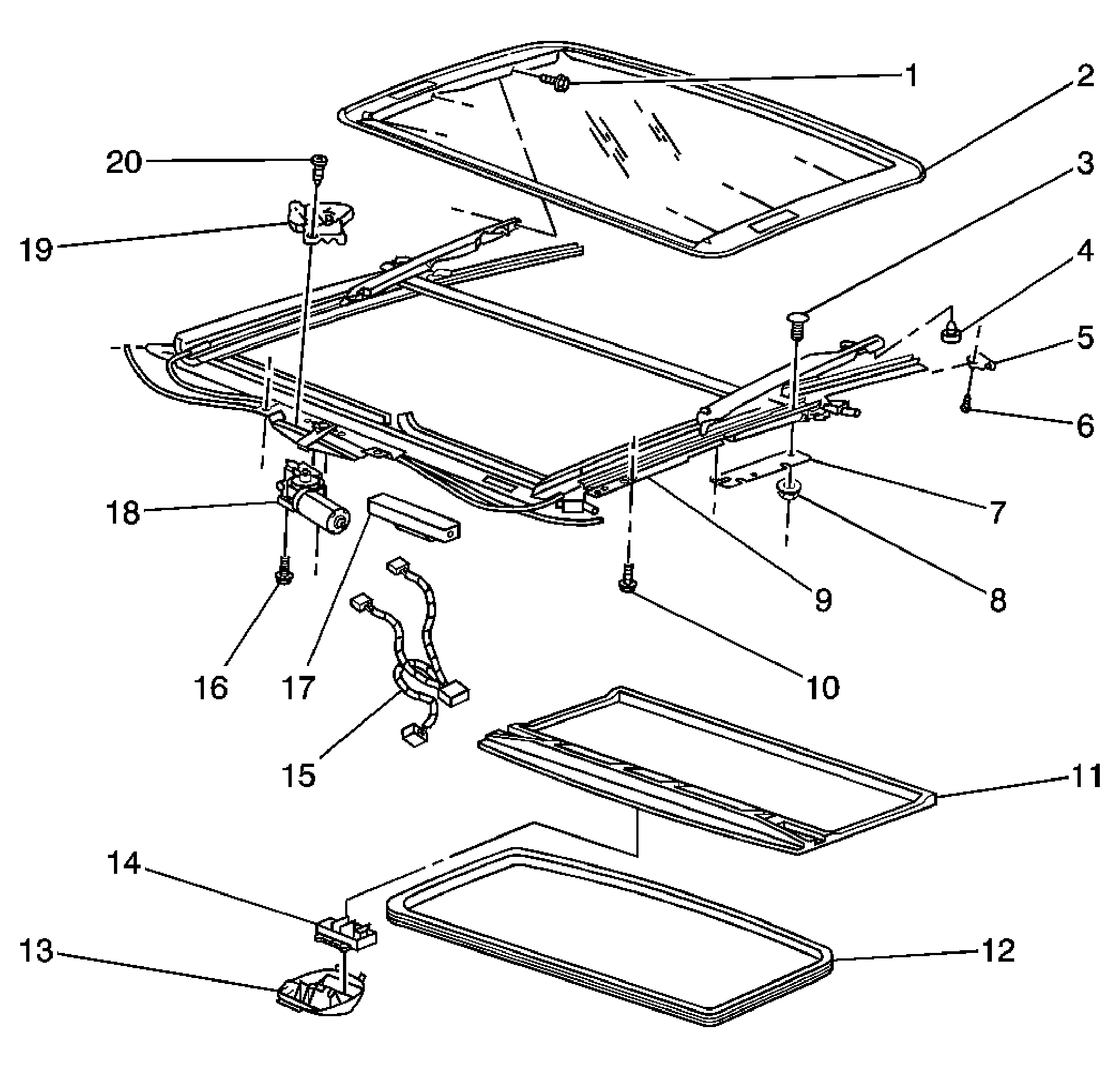

Power Sunroof Disassembled View
WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Sunroof Window Bolt/Screw |
| 2 | Sunroof Window Panel |
| 3 | Sunroof Module Assembly Bracket Bolt |
| 4 | Sunroof Window Guide Bumper |
| 5 | Sunroof Sunshade Stop |
| 6 | Sunroof Sunshade Stop Screw |
| 7 | Sunroof Module Assembly Bracket |
| 8 | Sunroof Module Assembly Bracket Nut |
| 9 | Sunroof Module Assembly |
| 10 | Sunroof Module Assembly Bolt |
| 11 | Sunroof Sunshade |
| 12 | Sunroof Opening Bezel/Lace |
| 13 | Sunroof Switch Bezel |
| 14 | Sunroof Switch |
| 15 | Sunroof Wiring Harness |
| 16 | Sunroof Actuator/Motor Bolt/Screw |
| 17 | Sunroof Control Module |
| 18 | Sunroof Actuator/Motor |
| 19 | Sunroof Opening Position Switch |
