SIR Component Views

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Front Of Engine Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Front End Sensor

Fig 2: Steering Column Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Wiper/Washer Switch
2	Inflatable Restraint Steering Wheel Module Coil
3	Inflatable Restraint Steering Wheel Module Coil, C3
4	Inflatable Restraint Steering Wheel Module Coil, C2
5	Inflatable Restraint Steering Wheel Module Coil, C5
6	Inflatable Restraint Steering Wheel Module Coil, C4
7	Inflatable Restraint Steering Wheel Module Coil, C1
8	Multifunction Turn Signal Lever
9	Body Control Module, C3
10	Windshield Wiper/Washer Switch, Connector
11	Multifunction Turn Signal Lever, C1
12	Multifunction Turn Signal Lever, C2
13	Multifunction Turn Signal Lever, C3
14	Inflatable Restraint Steering Wheel Module Coil, C4
15	C201
16	Steering Angle Sensor (JL4)

Fig 3: Left Side Of I/P Compartment Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Multifunction Turn Signal Lever
2	TAP Shift Switch - Left
3	Hazard Warning Switch
4	Instrument Panel Cluster (IPC)
5	TAP Shift Switch - Right
6	Windshield Wiper/Washer Switch
7	Ignition Switch
8	Driver Information Center (DIC)
9	Radio
10	HVAC Control Module
11	Heated Seat Switch - Front Passenger
12	Rear Defogger Switch
13	Heated Seat Switch - Driver
14	Steering Wheel Controls - Right
15	Cruise Control Switch
16	Inflatable Restraint Steering Wheel Module
17	Tilt Steering Wheel Lever
18	Steering Wheel Controls - Left
19	Interior Lamp Switch

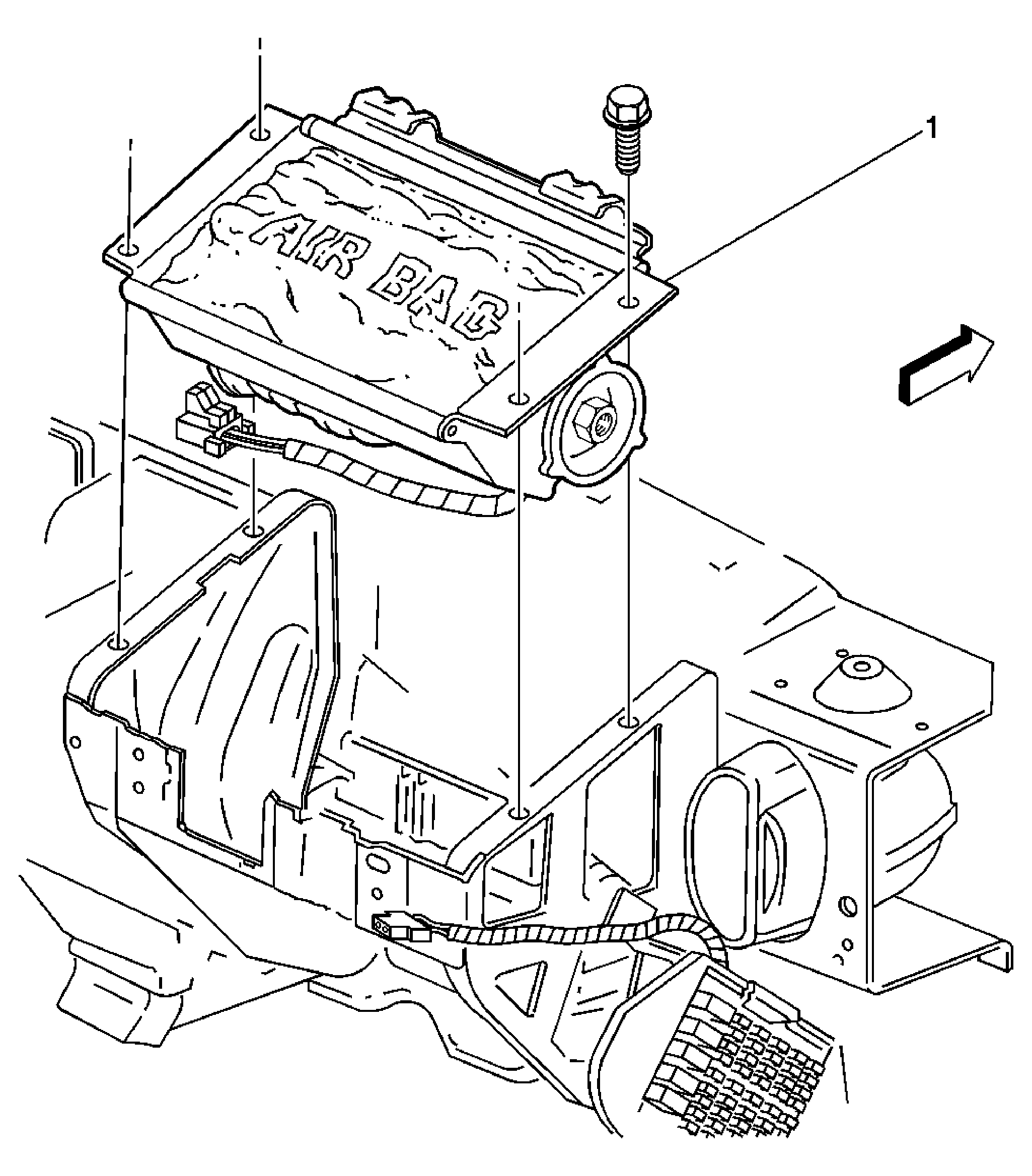

Fig 4: Right Side Of I/P Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint I/P Module

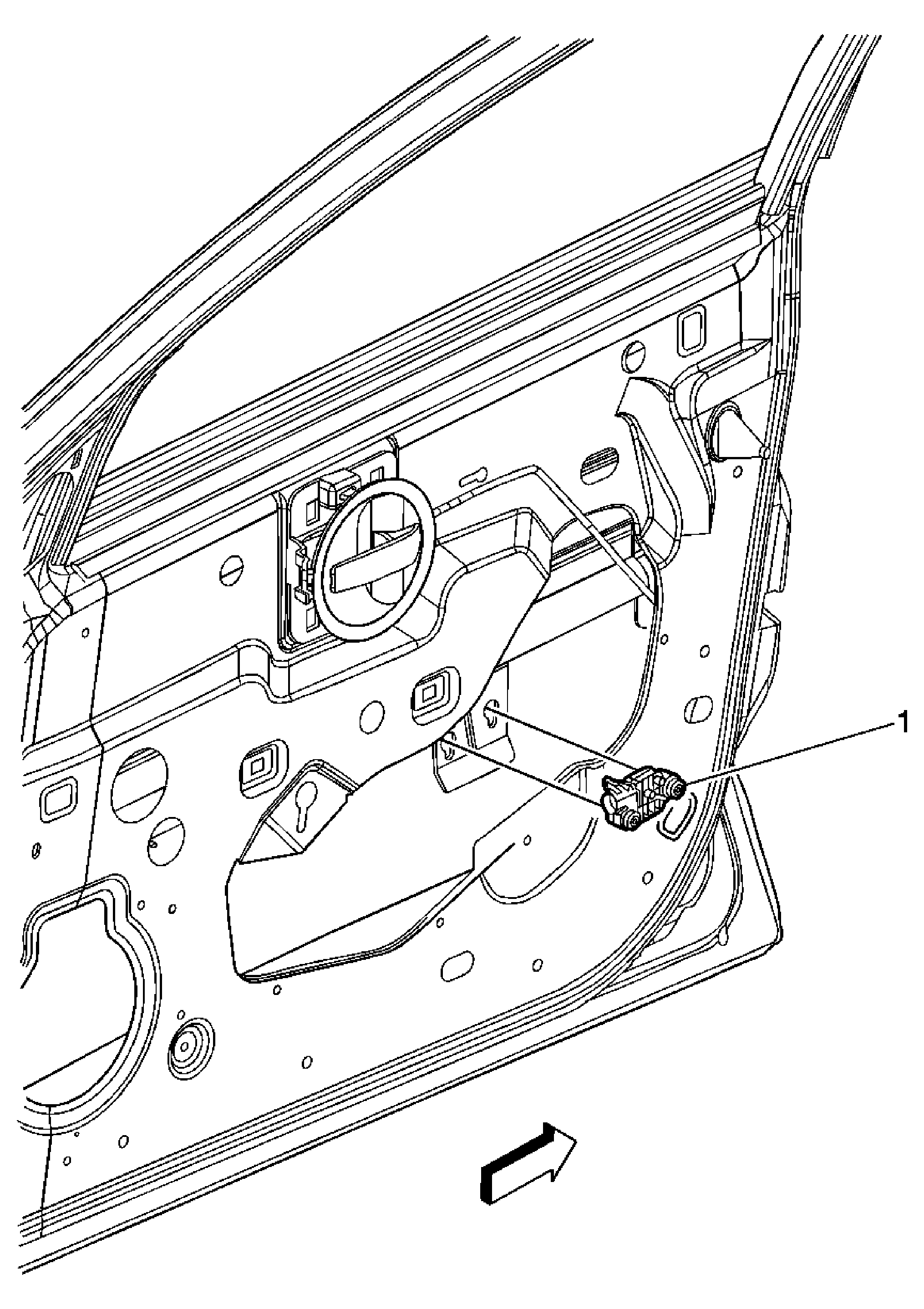

Fig 5: Driver Door Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Side Impact Sensor - Left (AY1)

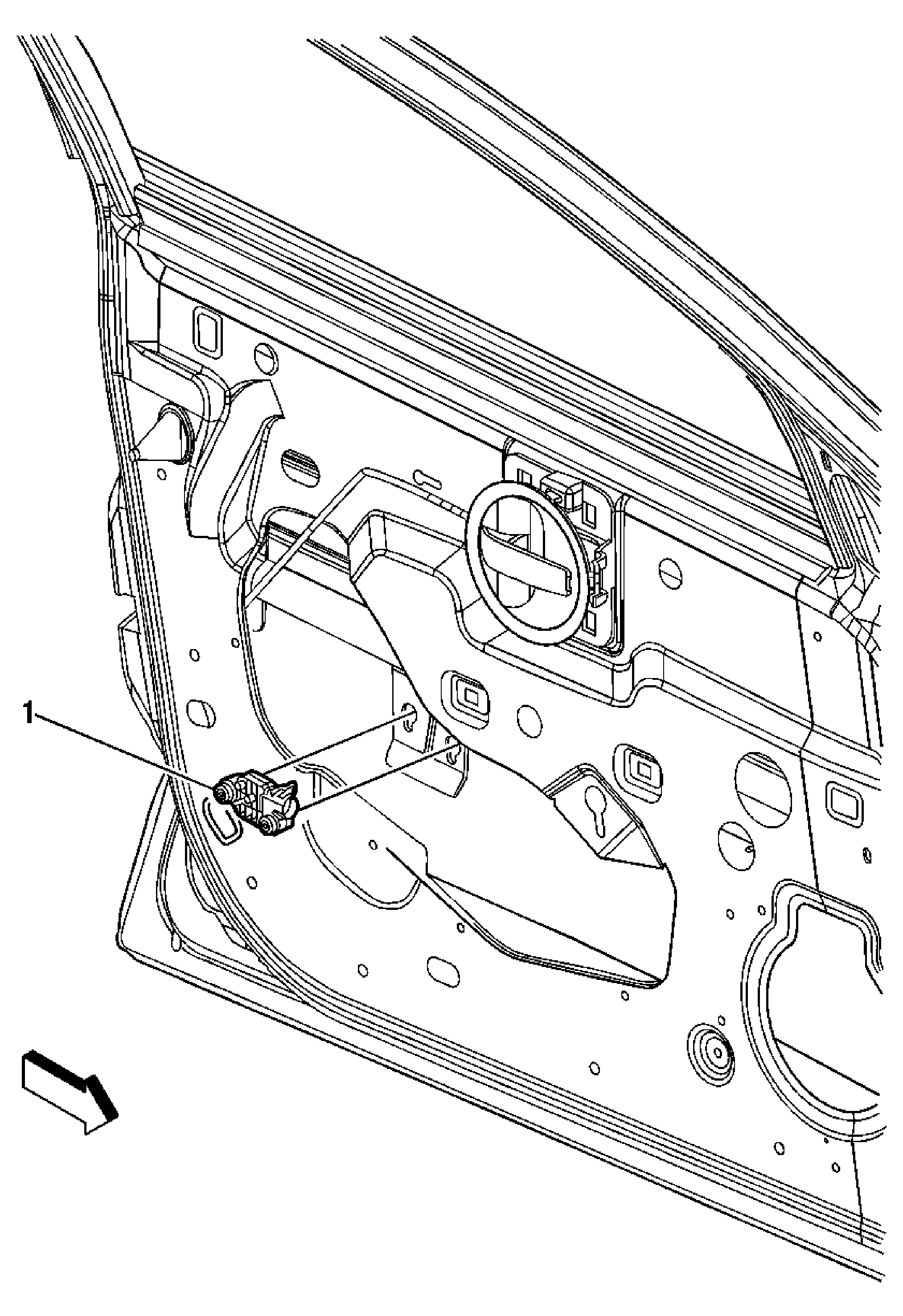

Fig 6: Front Passenger Door Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Side Impact Sensor - Right (AY1)

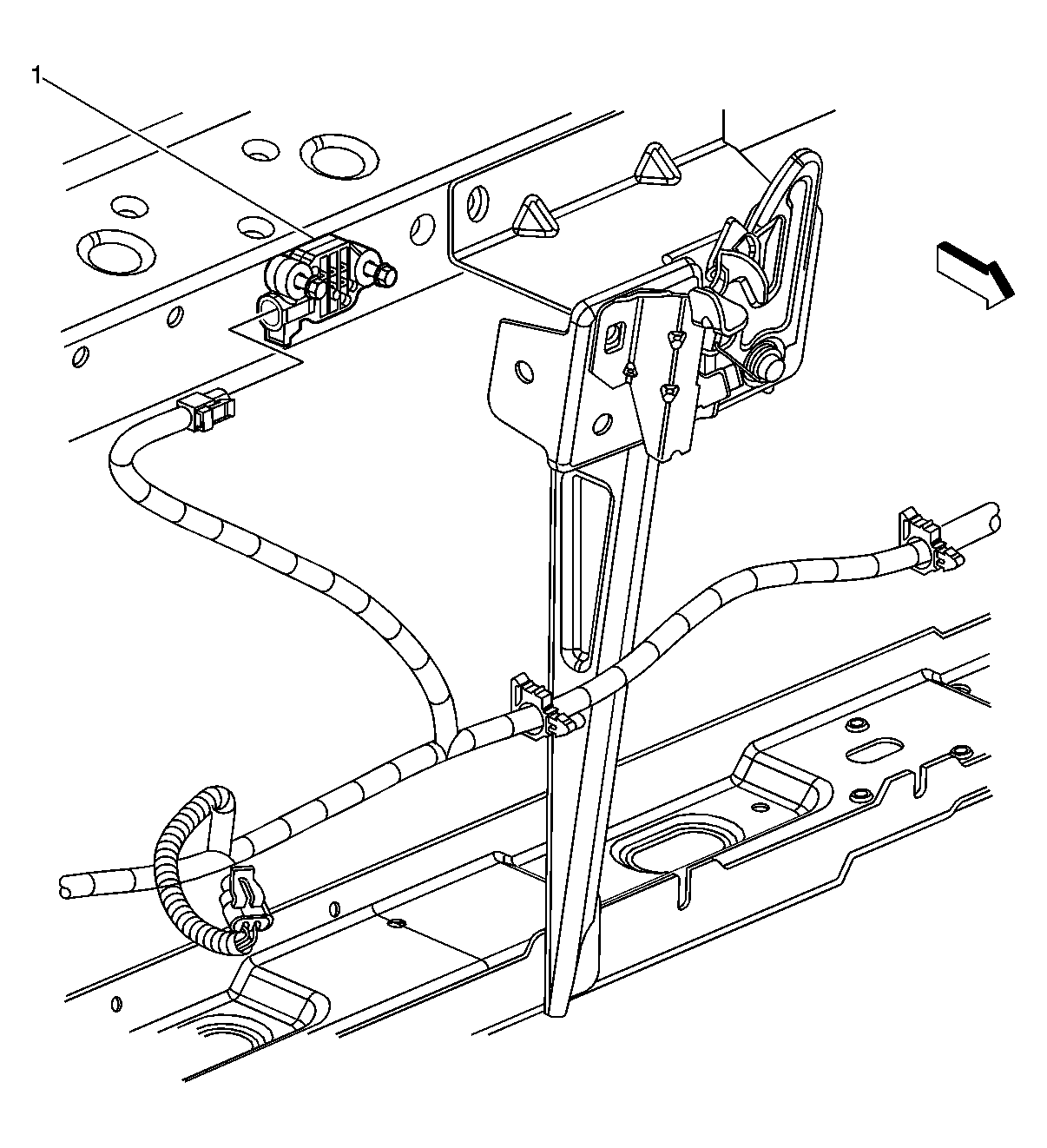

Fig 7: Under Front Of Driver Seat Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Pretensioner - Left (Seat Belt Pretensioner - Right, Similar)
2	Heated Seat Relay - Driver (Heated Seat Relay - Front Passenger, Similar)

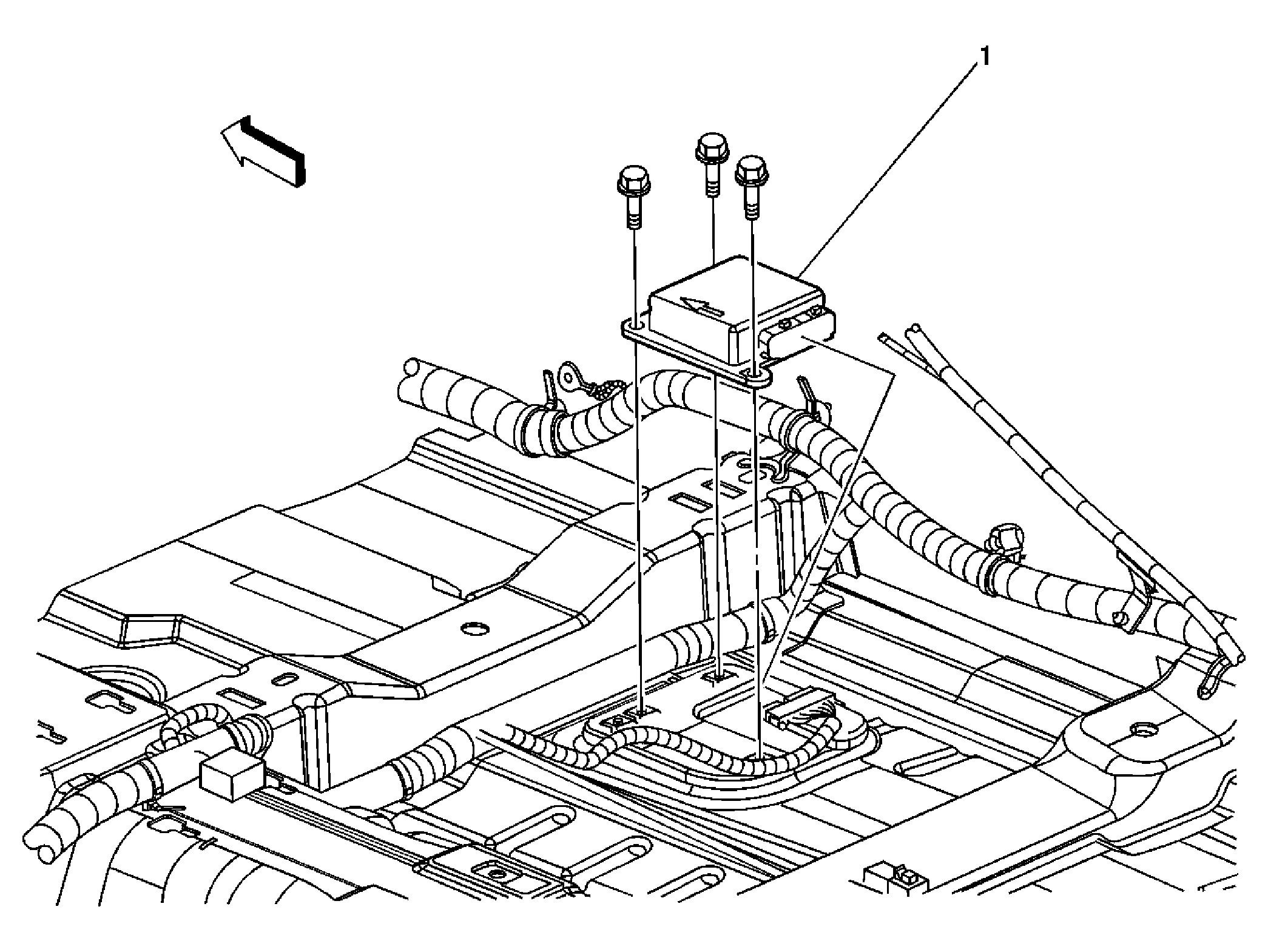

Fig 8: Right Front Of Passenger Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Sensing and Diagnostic Module (SDM)

Fig 9: Left Rear Of Passenger Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Roof Rail Module - Left (AY1)

Fig 10: Right Rear Of Passenger Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Roof Rail Module - Right (AY1)
2	Rear Window Defogger Grid
