Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Install the windshield wiper and washer switch (1) to the steering column.

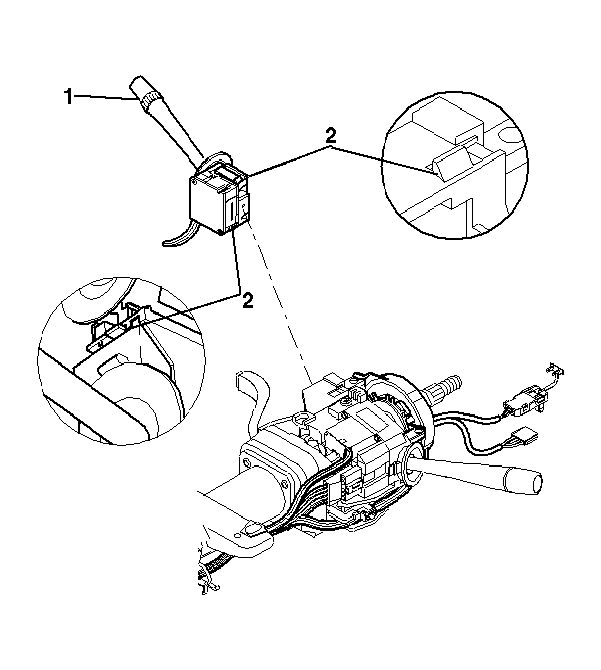

Fig 1: Locking Tab & Windshield Wiper/Washer Switch

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connectors (1,3) on the windshield wiper and washer switch.

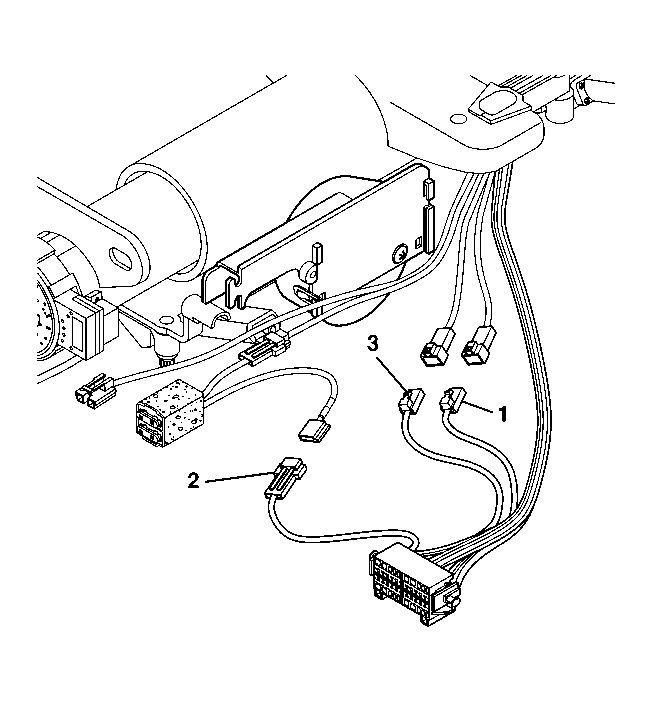

Fig 2: Connecting Electrical Connectors To Windshield Wiper/Washer Switch

Courtesy of GENERAL MOTORS CORP.

Install the wire harness (2) to the wire harness shield (1) on the lower steering column.

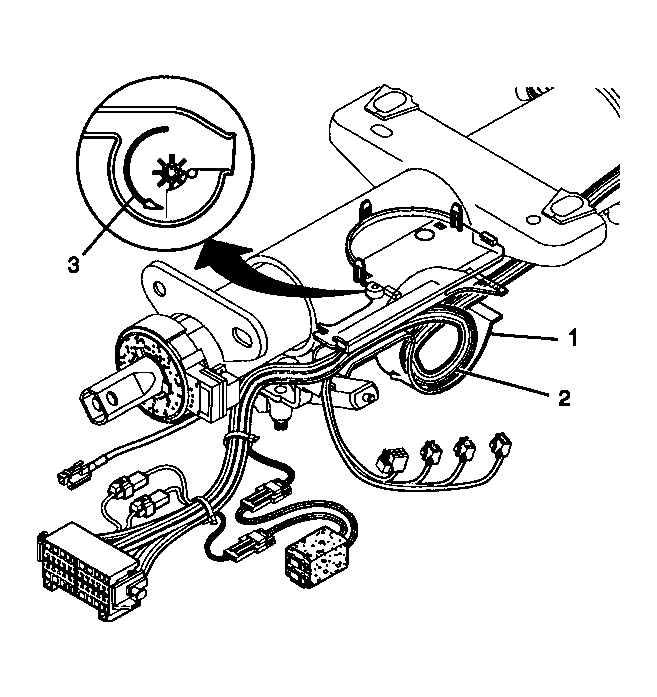

Fig 3: Wire Harness & Shield

Courtesy of GENERAL MOTORS CORP.

Route and connect the electrical connector from the windshield wiper and washer switch.
Install the wiring harness tie straps (1,2).

Fig 4: Steering Column Wiring Harness Tie Straps

Courtesy of GENERAL MOTORS CORP.

Install the steering column trim covers. Refer to Steering Column Trim Covers Replacement in Steering Wheel and Column.
Enable the SIR system. Refer to SIR Disabling and Enabling Zone 3 in SIR.
