Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the bushing with liquid hand soap or equivalent.

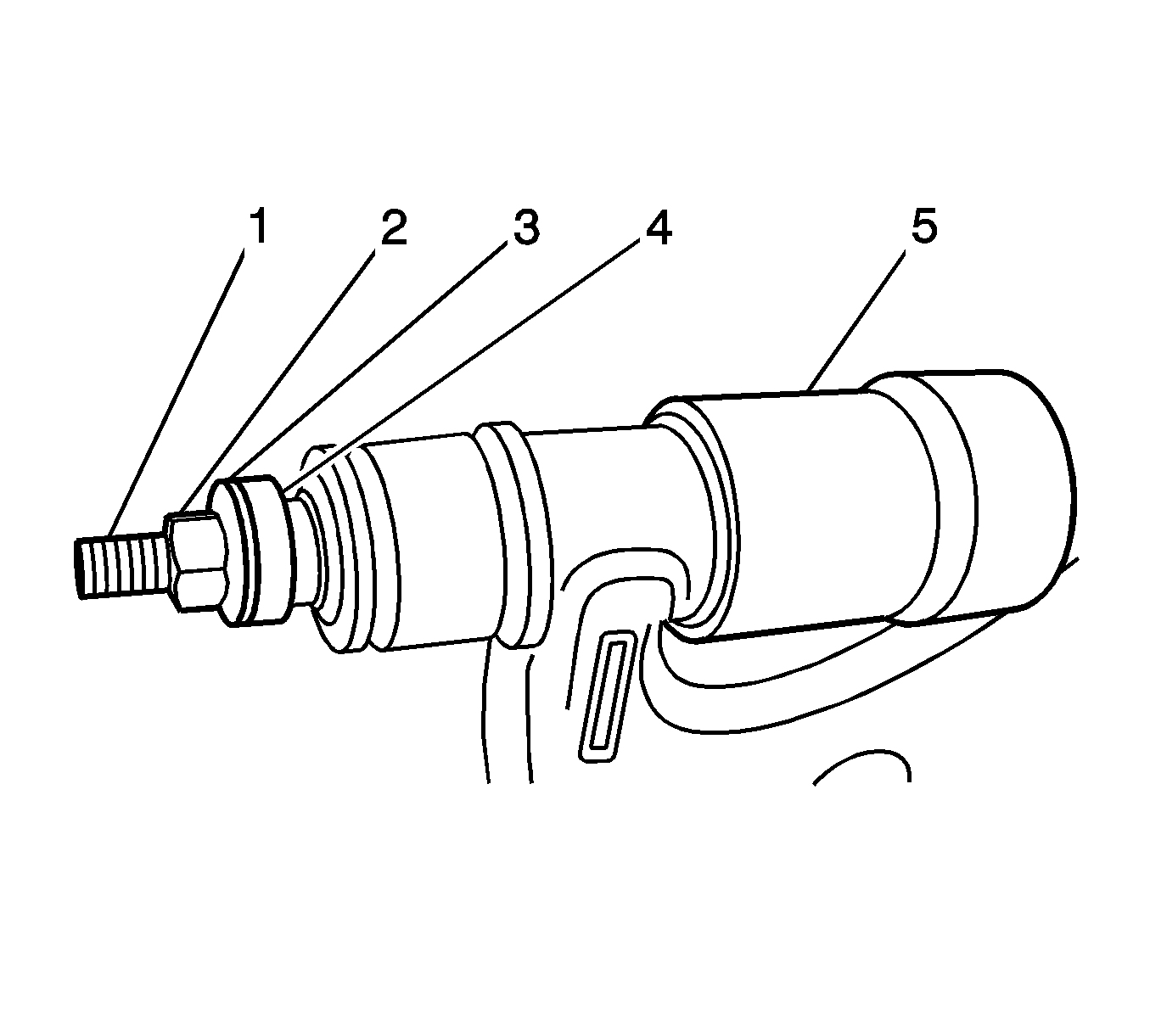

    2. Fig 1: Nut, Washer, Bearing, J 21474-5 & Puller Bolt
    GM1171035Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Use a 1/2 x 20 in standard thread nut with the puller bolt.
  2. Assemble the following bushing installation tools as indicated :
    1. The nut (1)
    2. The J 21474-01  washer (2). See Special Tools and Equipment .
    3. The J 21474-01  bearing (3). See Special Tools and Equipment .
    4. The J 21474-5  (4). See Special Tools and Equipment .
    5. The J 21474-01  puller bolt (5). See Special Tools and Equipment .
  3. Tighten the puller bolt (5) until the bushing is installed into the control arm.
  4. Disassemble the J 21474-01  and. See Special Tools and Equipment .J 21474-5  . See Special Tools and Equipment .
  5. Remove the control arm from the vice.
  6. Install the lower control arm. Refer to Lower Control Arm Replacement .
