Disassembly Procedure

WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Compressing/Releasing Lower Part Of Shock Spring

Courtesy of GENERAL MOTORS CORP.

Remove the strut from the vehicle. Refer to Strut Assembly Replacement .
Install the strut (2) in the J 45400 (1). See Special Tools and Equipment .

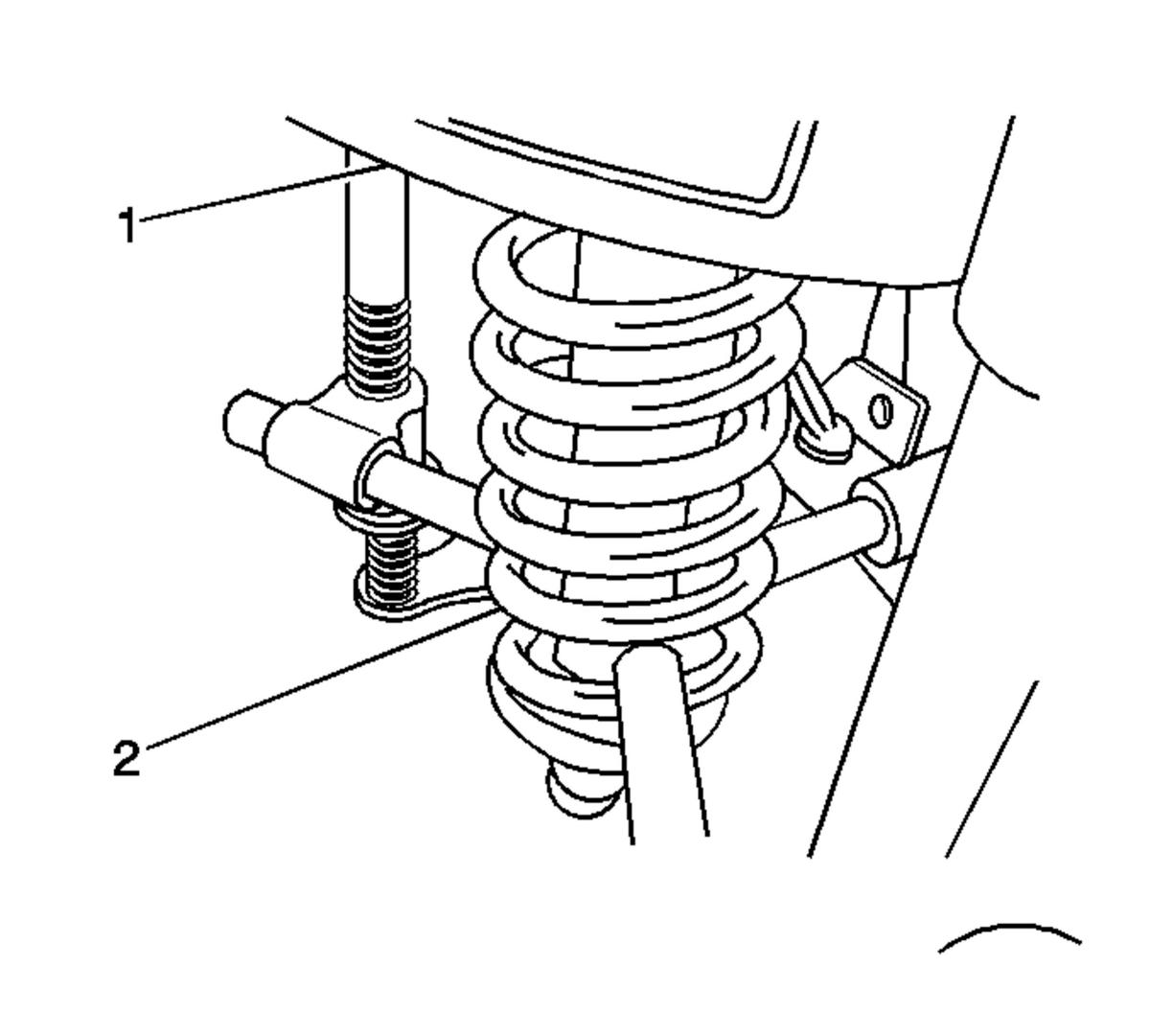

Fig 2: View Of Compressor Forcing Screw & Coil Spring

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: The spring is compressed when the strut moves freely.

Turn the spring compressor forcing screw (1) until the coil spring (2) is compressed.

Fig 3: Removing/Installing Strut Retaining Nut

Courtesy of GENERAL MOTORS CORP.

Use a 45 TORX® socket in order to hold the strut shaft. Remove the upper strut mount nut by turning withJ 42991 . See Special Tools and Equipment .
Remove the strut from the J 45400 . See Special Tools and Equipment .

Fig 4: View Of Compressor Forcing Screw & Coil Spring

Courtesy of GENERAL MOTORS CORP.

Loosen the compressor forcing screw (1) until the upper strut mount and coil spring (2) may be removed.
Remove the upper strut mount and the coil spring from the J 45400 . See Special Tools and Equipment .
