Lighting Systems Component Views

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

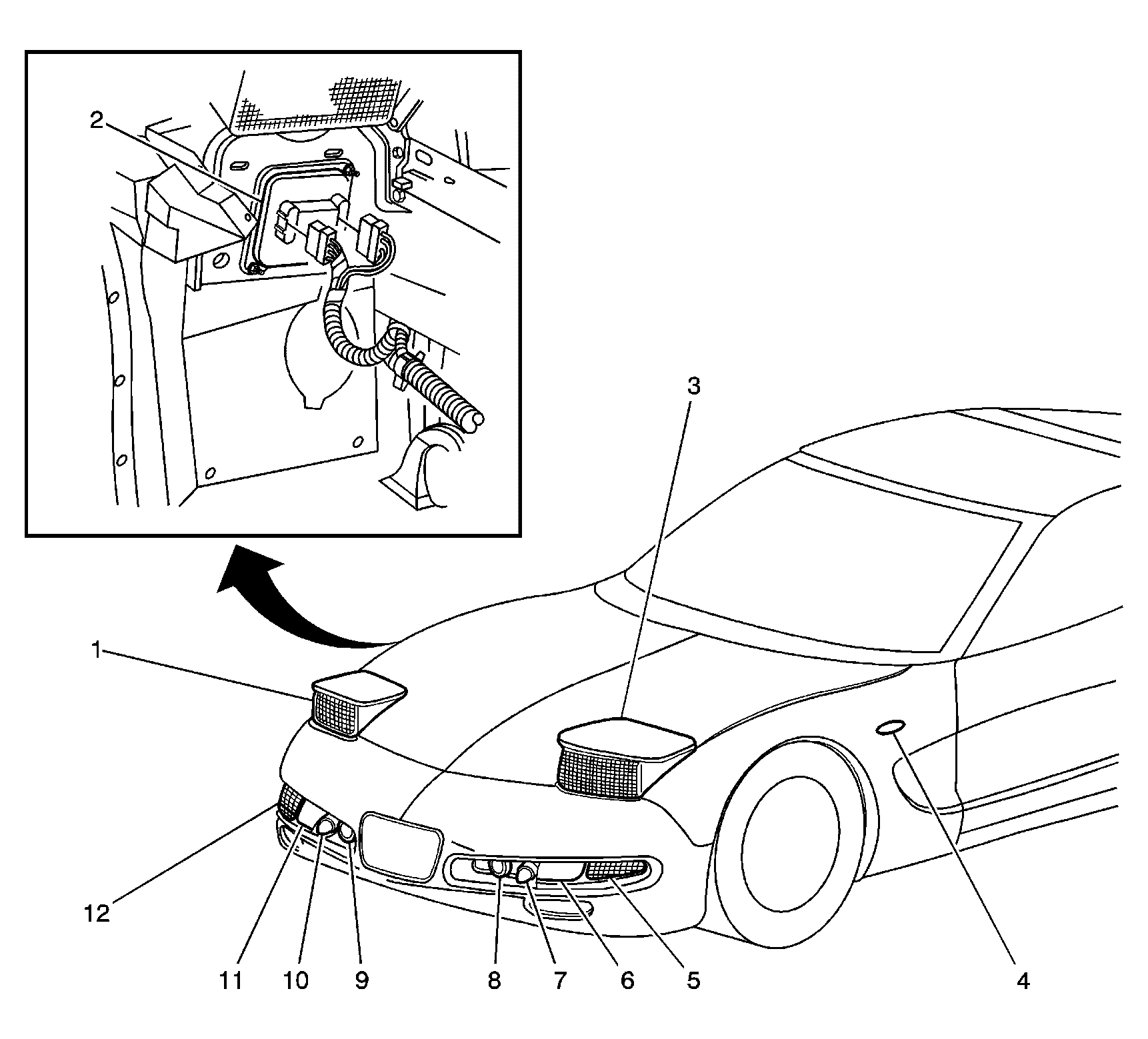

Fig 1: Outside Front End Of The Vehicle Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Door Assembly-Right
2	Headlamp Door Control Module
3	Headlamp Door Assembly-Left
4	Repeater Lamp-Left, (Right Side Similiar) (Export)
5	Marker Lamp - LF
6	Park/Turn Signal Lamp-LF (Domestic) Turn Signal Lamp-LF (Export)
7	Park Lamp-LF (Export)
8	Fog Lamp-LF
9	Fog Lamp-RF
10	Park Lamp-RF (Export)
11	Park/Turn Signal Lamp-RF (Domestic) Turn Signal Lamp- RF (Export)
12	Marker Lamp - RF

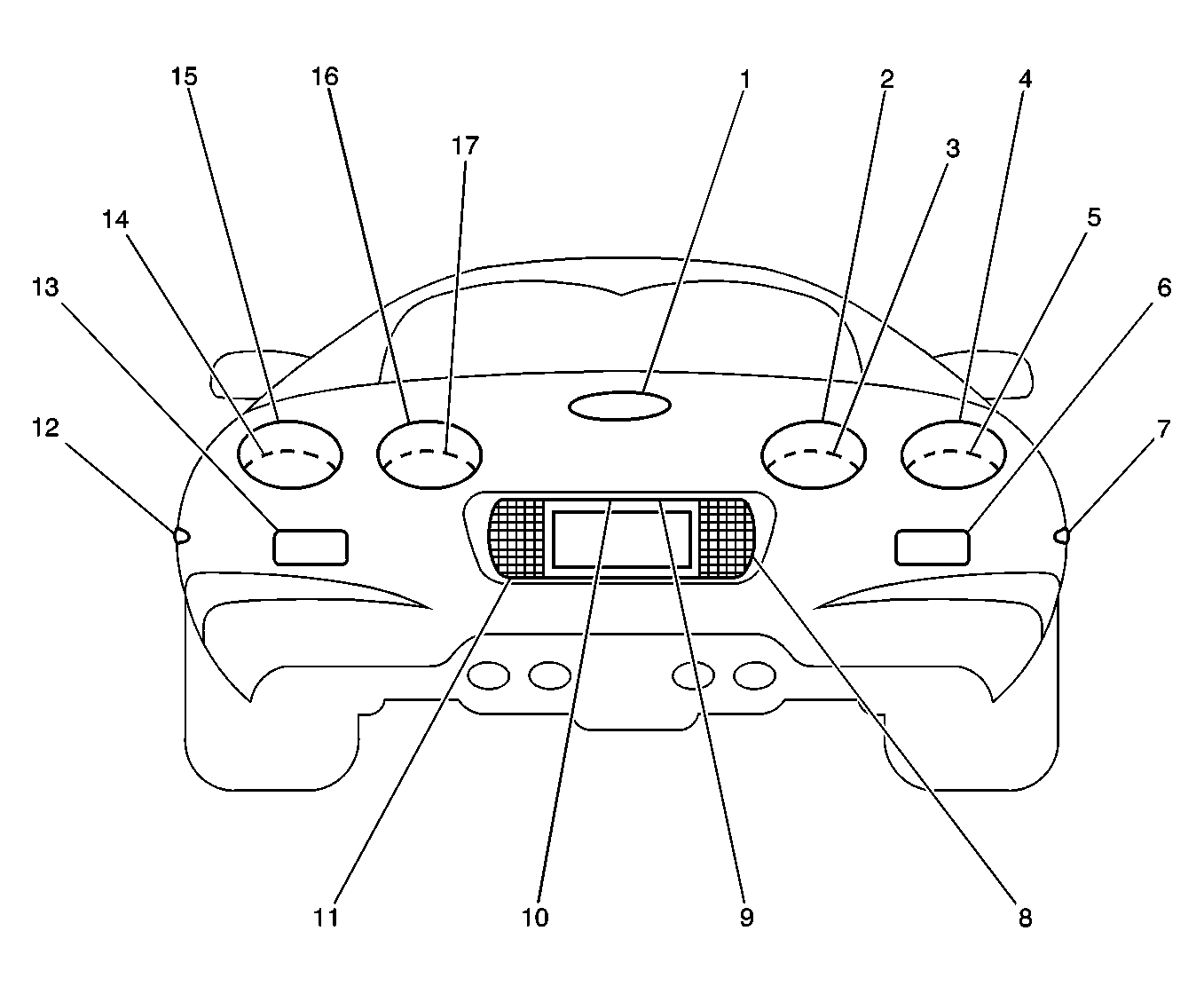

Fig 2: Outside Rear End Of The Vehicle Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Center High Mounted Stop Lamp (CHMSL)
2	Tail/Stop and Turn Signal Lamp-Right (Domestic) Tail/Stop Lamp-Right (Export)
3	Turn Signal Lamp-RR (Japan), Backup Lamp-RR (Europe)
4	Tail/Stop and Turn Signal Lamp-Right (Domestic), Tail/Stop Lamp-Right (Export)
5	Turn Signal Lamp-RR (Export)
6	Fog Lamp-RR (Europe)
7	Marker Lamp-RR
8	Backup Lamp-Right (Domestic/Japan)
9	License Lamp-Right
10	License Lamp-Left
11	Backup Lamp-Left (Domestic and Japan)
12	Marker Lamp-LR
13	Fog Lamp-LR (Europe)
14	Turn Signal Lamp-LR (Export)
15	Tail/Stop and Turn Signal Lamp-Left (Domestic), Tail/Stop Lamp-Left (Export)
16	Tail/Stop and Turn Signal Lamp-Left (Domestic) Tail/Stop Lamp-Left (Export)
17	Turn Signal Lamp-LR (Japan), Backup Lamp-Left (Europe)

Fig 3: Instrument Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunload Sensor
2	HVAC Module Assembly
3	Air Temperature Actuator (C60)
4	Vacuum Control Assembly (CJ2)
5	Blower Motor
6	Blower Motor Control Processor
7	Fuse Block-IP
8	Body Control Module (BCM)
9	Ignition Switch
10	Air Temperature Sensor - Inside
11	Telescoping Actuator Switch
12	Data Link Connector (DLC)
13	Multifunction Turn Signal Lever
14	Ambient Light Sensor
15	Windshield Wiper/Washer Switch

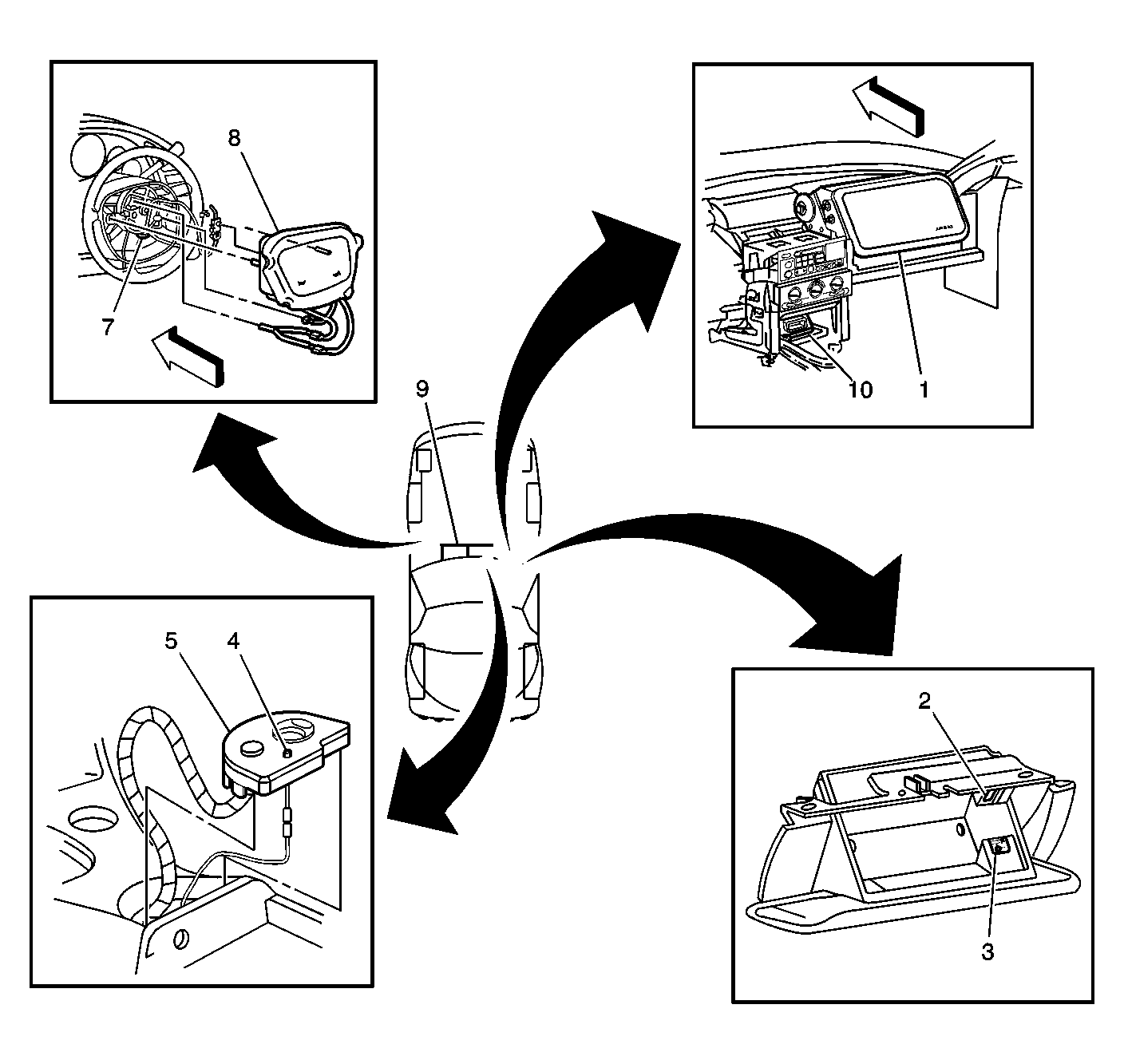

Fig 4: SIR Components View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint IP Module
2	IP Compartment Lamp
3	Inflatable Restraint IP Module Disable Switch
4	Inflatable Restraint IP Module Disable Switch LED
5	Traction/Suspension Control Switch
7	Inflatable Restraint Steering Wheel Module Coil
8	Inflatable Restraint Steering Wheel Module
9	SIR Wiring Harness
10	Inflatable Restraint Sensing and Diagnostic Module (SDM)

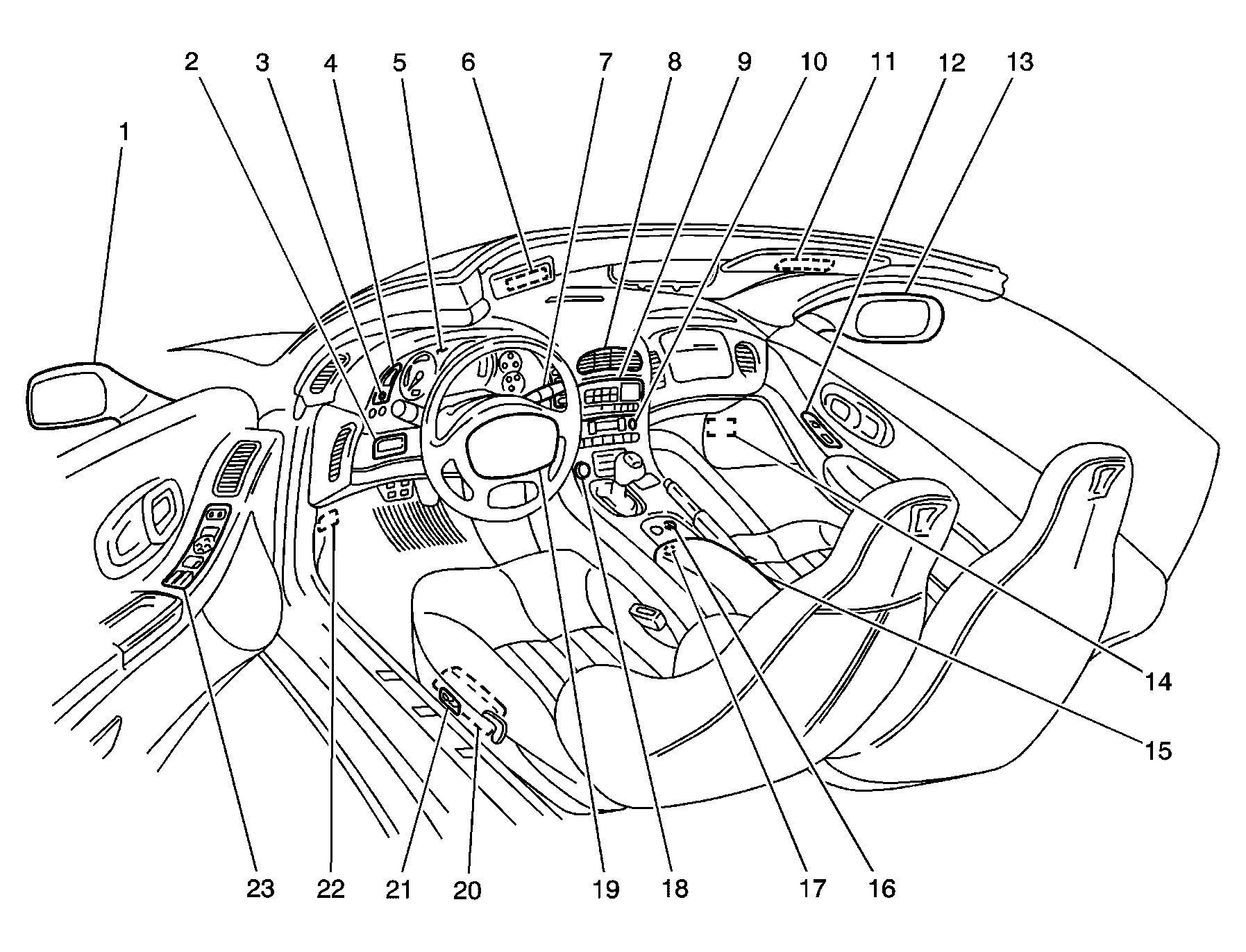

Fig 5: Cockpit Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror-Driver
2	Fog Lamp/Rear Compartment Lid Release Switch (Domestic), Fog Lamp Switch (Export)
3	Dimmer Switch
4	Dimmer/Head Up Display (HUD) Switch
5	Instrument Panel Cluster (IPC)
6	Vanity Mirror Lamp-Left
7	Driver Information Center (DIC) Switch-Right
8	Hazard Switch
9	Radio
10	HVAC Control Module
11	Vanity Mirror Lamp-Right
12	Door Switch-Passenger
13	Outside Rearview Mirror-Passenger
14	Footwell Courtesy Lamp-Right
15	Fuel Door Lock Release Switch (Domestic), Rear Compartment Lid/Fuel Door Lock Release Switch (Export)
16	Traction/Suspension Control Switch
17	Auxiliary Power Outlet Connector
18	Cigar Lighter
19	Horn Switch
20	Seat Control Module (SCM)-Driver (W/Memory Seats), Seat Relay Center-Driver (W/O Memory Seats)
21	Seat Adjuster Switch-Driver
22	Footwell Courtesy Lamp-Left
23	Door Switch-Driver

Fig 6: Under Side of the Dash Component View - Left

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Stop Lamp Switch C1
2	Stop Lamp Switch C3
3	C213
4	Bose Signal Processor
5	Accelerator Pedal Position (APP) Sensor
6	Accelerator Pedal
7	Brake Pedal
8	Steering Wheel Position Sensor
9	Clutch Pedal
10	Clutch Pedal Start Switch
11	Clutch Pedal Position Switch
12	Stop Lamp Switch
13	Stop Lamp Switch Connector C2

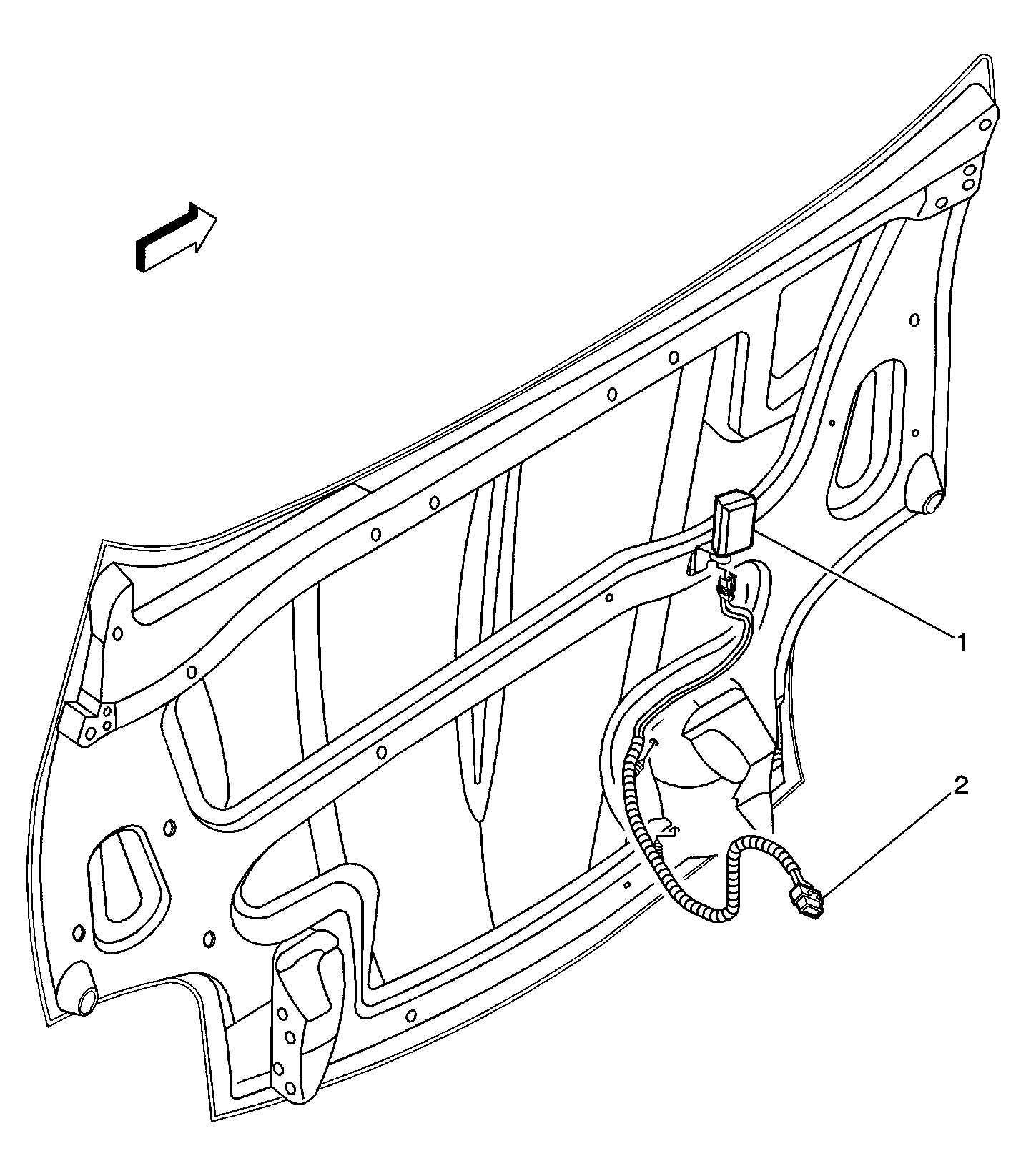

Fig 7: Underhood Lamp Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Underhood Lamp
2	C113

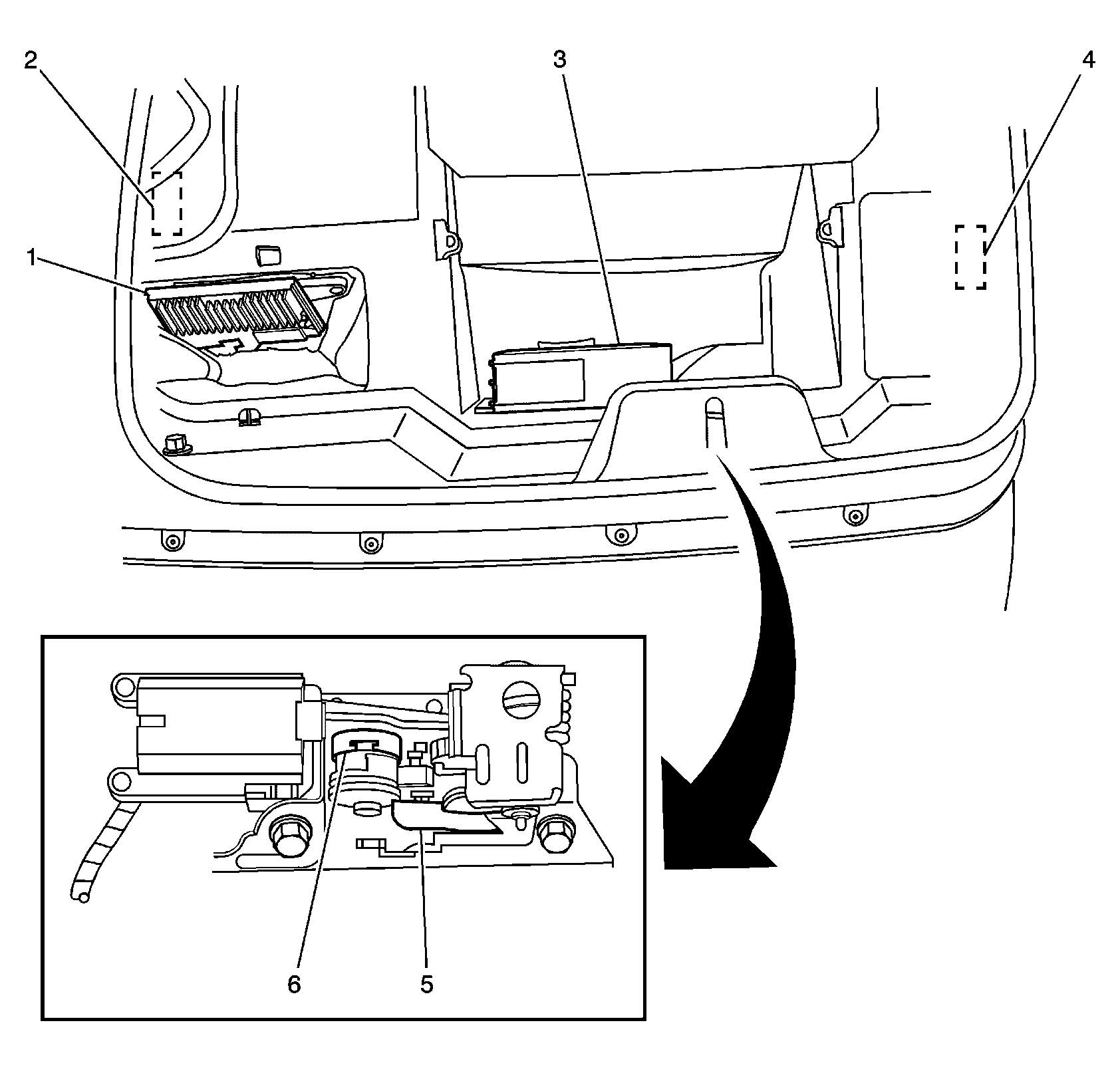

Fig 8: Luggage Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Electronic Suspension Control (ESC) Module
2	Rear Compartment Courtesy Lamp - Left
3	Remote Playback Device - CD Changer
4	Rear Compartment Courtesy Lamp - Right
5	Rear Compartment Lid Ajar Switch
6	Rear Compartment Lid Latch (Hardtop/Convertible)

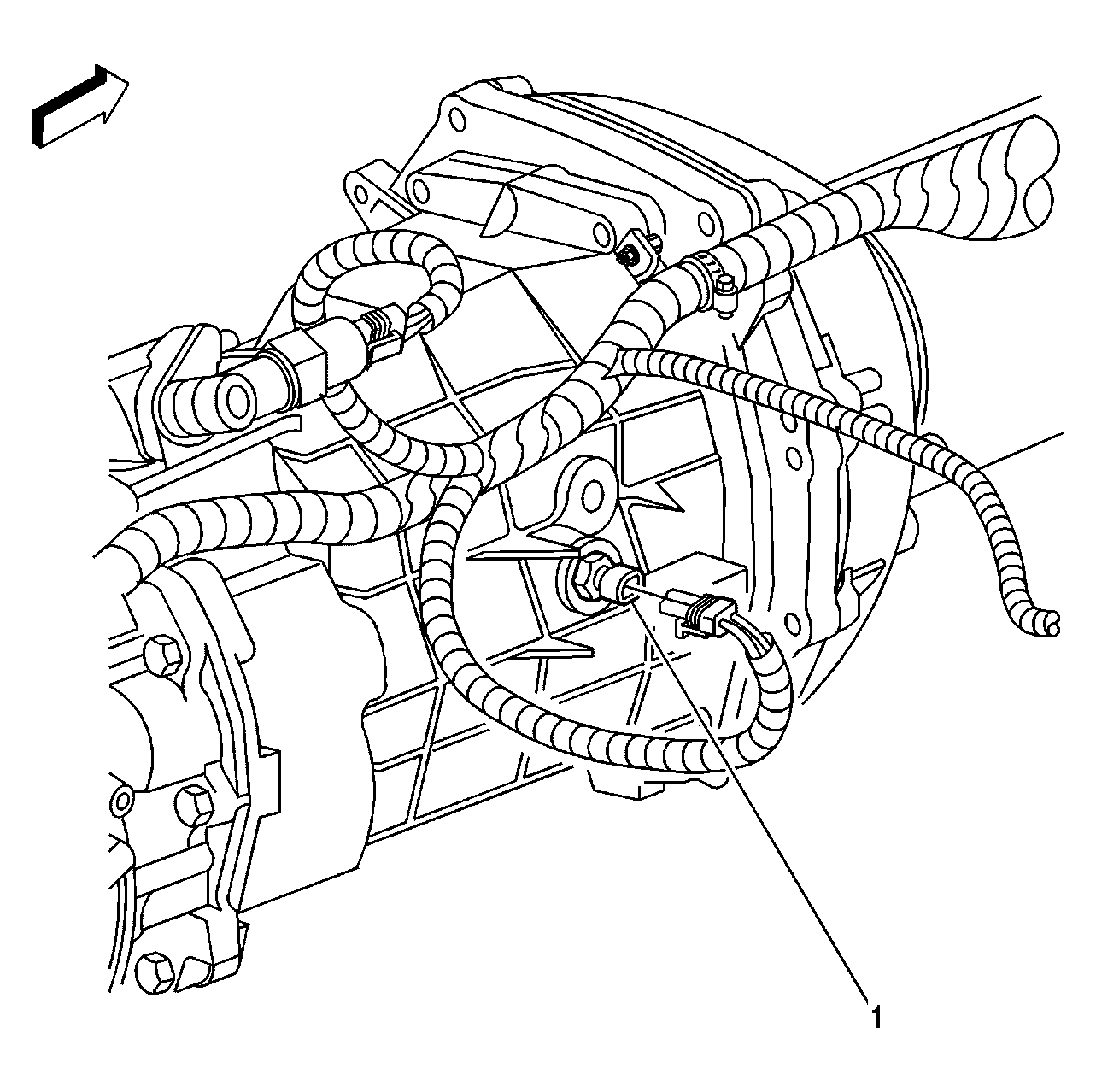

Fig 9: Right Side Of The Transmission Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Backup Lamp Switch
