Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

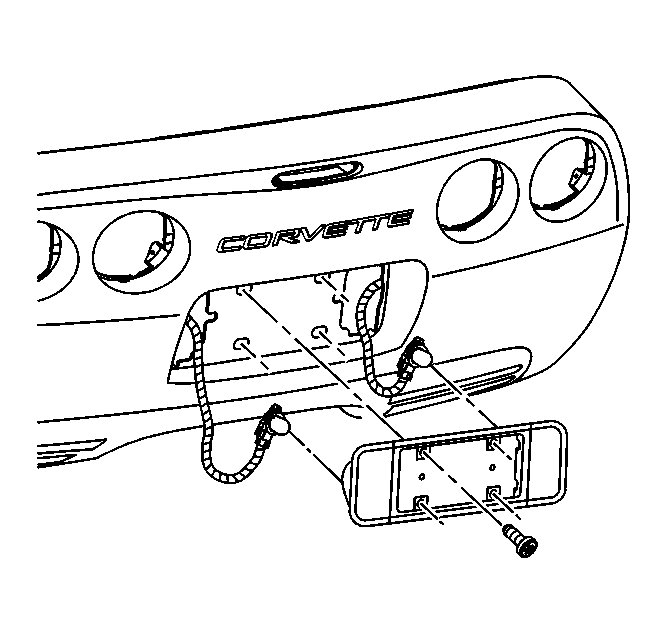

Fig 1: Backup Lamp Assembly To Vehicle

Courtesy of GENERAL MOTORS CORP.

Install the backup lamp sockets to the backup lamp assembly.
Rotate the sockets clockwise to engage the locking tabs.
Install the backup lamp assembly into position on the vehicle.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the backup lamp assembly retaining screws.
Tighten: Tighten the backup lamp and rear license assembly retaining screws to 2 N.m (18 lb in).
Install the rear license plate.
Install the rear license frame.
Align the locking tabs, then press engage.
