Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

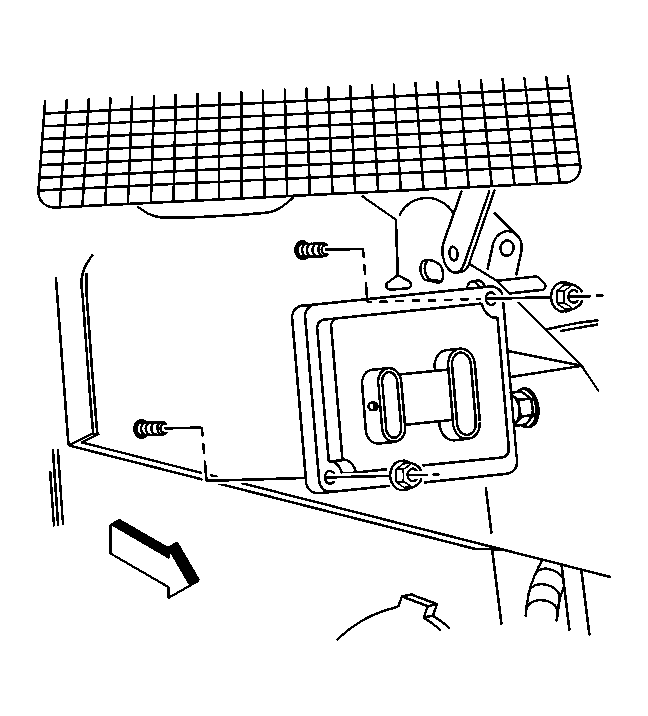

    Fig 1: Nuts Mounting The Module To Headlamp Bracket
    GM64652Courtesy of GENERAL MOTORS CORP.
  1. Install the headlamp control module into position on the headlamp bracket.
  2. Install the nuts mounting the module to the headlamp bracket.

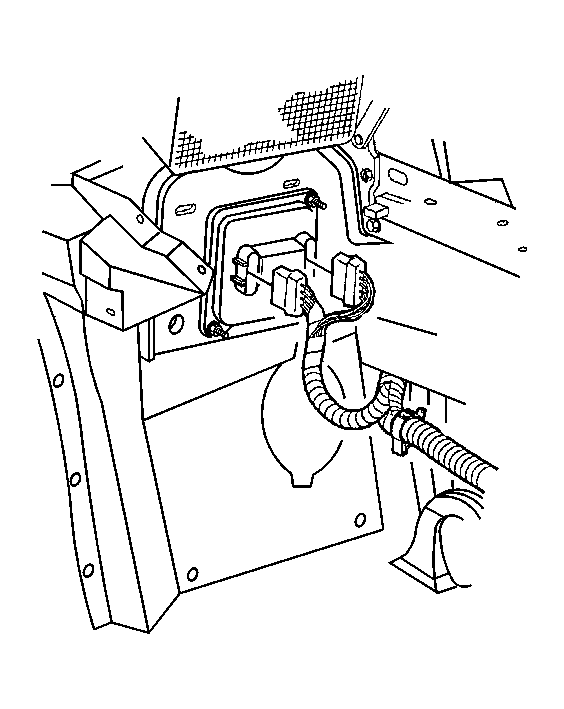

    3. Fig 2: Electrical Connectors To Headlamp Control Module
    GM64648Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connectors to the module.

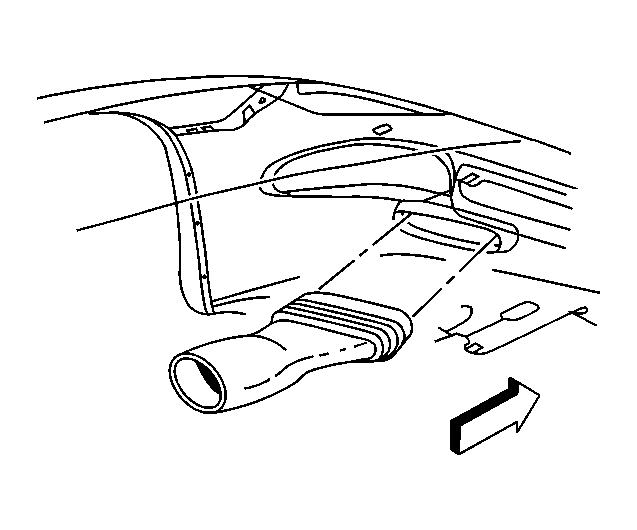

    4. Fig 3: Brake Caliper Cooling Duct To Front Fascia
    GM171878Courtesy of GENERAL MOTORS CORP.
  4. Position the brake caliper cooling duct to the front fascia and push to secure.
  5. Install the front fascia lower closeout panel. Refer to Close Out Panel - Front Bumper Fascia Lower in Bumpers.
  6. Lower the vehicle.

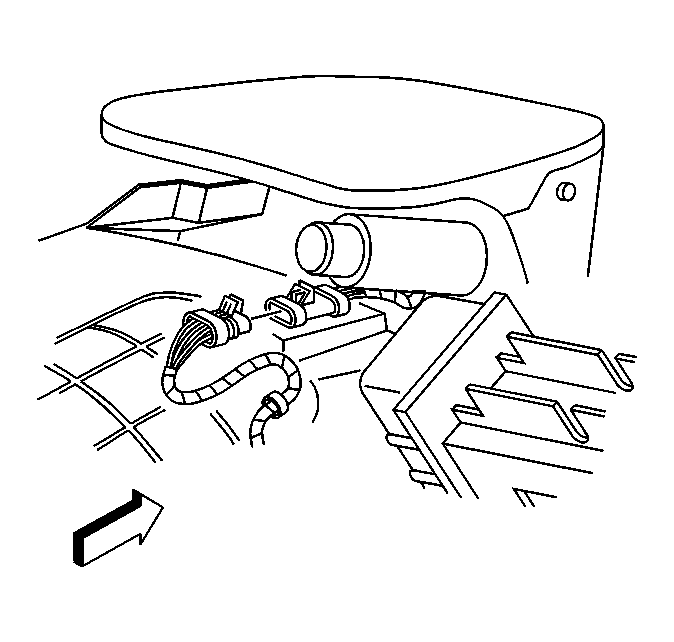

    7. Fig 4: RH Headlamp Wiring Harness Electrical Connector To Forward Lamp Wiring Harness
    GM64644Courtesy of GENERAL MOTORS CORP.
  7. Connect the RH headlamp wiring harness electrical connector to the forward lamp wiring harness.
  8. Lower the RH headlamp manually.

    Turn the headlamp motor/actuator manual control knob clockwise to lower the headlamp.

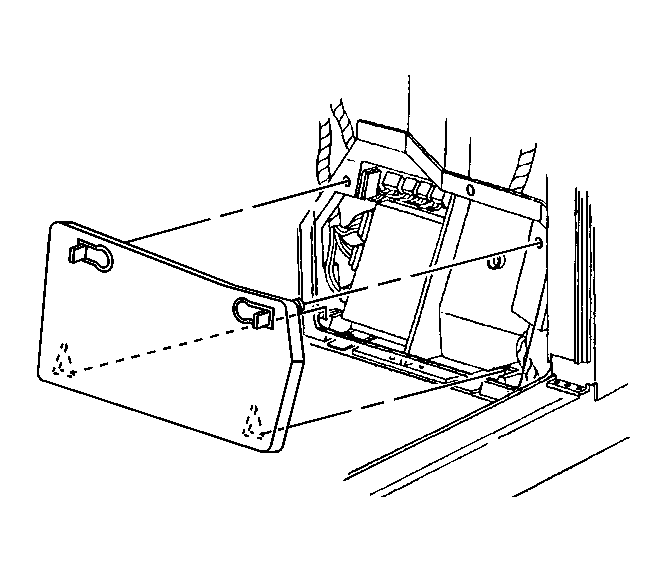

    9. Fig 5: Passenger Side Front Floor Kick Up Panel To IP Electrical Center
    GM71195Courtesy of GENERAL MOTORS CORP.
  9. Install the headlamp circuit breaker into the IP electrical center.
  10. Install the floor kick up panel covering the IP electrical center.
  11. Close the hood.
