Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

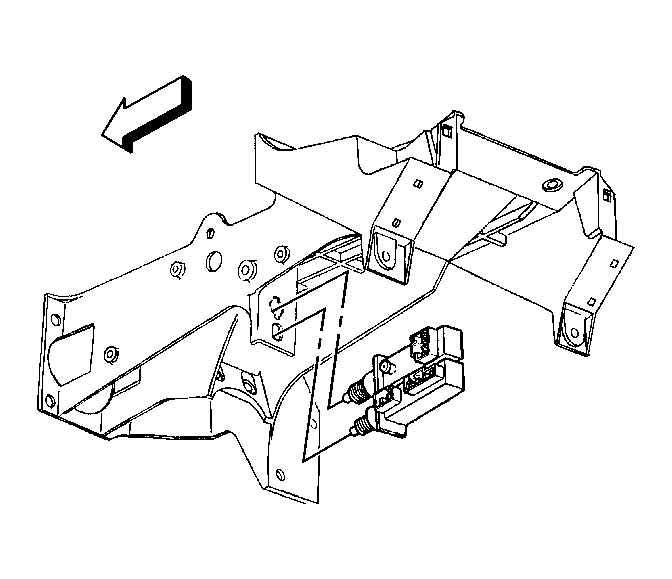

    Fig 1: Stop Lamp Switch
    GM63977Courtesy of GENERAL MOTORS CORP.
  1. Install the stop lamp switch.
  2. Adjust the stop lamp switch. Refer to Stop Lamp Switch Adjustment .

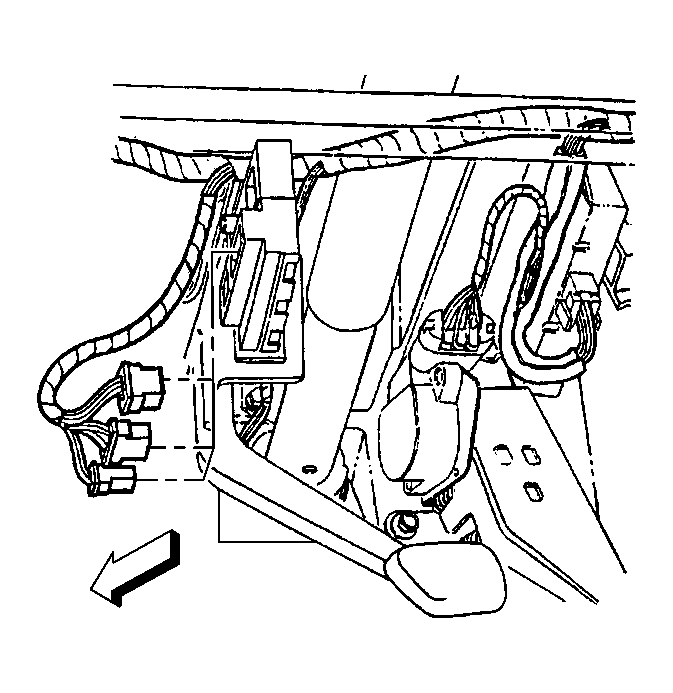

    3. Fig 2: Lower Trim Panel & Stop Lamp Switch Connectors
    GM63971Courtesy of GENERAL MOTORS CORP.
  3. Connect the stop lamp switch connectors.
  4. Install the I/P lower trim panel. Refer to Trim Panel Replacement - Knee Bolster in Instrument Panel, Gages, and Console.
