Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

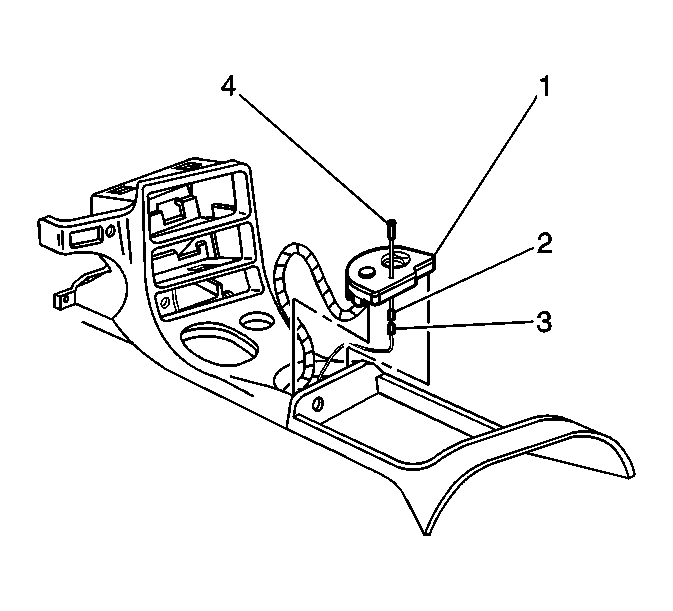

    Fig 1: IP Accessory Trim Plate, Wiring Harness Connector & Electrical Led Connector
    GM624417Courtesy of GENERAL MOTORS CORP.
  1. Use the J 35616  to extract terminals from the replacement LED connector (2).
  2. Insert LED wiring through opening in the IP accessory trim plate (1) and press the LED (4) into place.
  3. Install terminals in LED connector (2).
  4. Connect the electrical LED connector (2) to the wiring harness connector (3).
  5. Position the IP accessory trim plate (1) and press into place.
  6. Close the console compartment door.
