Axle Shaft Specifications

WARNING: This page is about a different car, the 2003 Chevrolet Corvette and 2002 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

AXLE SHAFT SPECIFICATIONS

Application

Specifications

Axle Shaft Seal Clamp ⁽¹⁾

0.079-0.118" (2-3 mm)

Plunging Motion Of Inner Joint ⁽²⁾

8.82-8.98" (224-228 mm)

Seal Clamp (Large) Position - Edge Of Seal-To-End Of Joint Outer Race ⁽³⁾

0.03" (0.8 mm)

Seal Clamp (Small) Position - Edge Of Seal-To-Edge Of Last Axle Shaft Groove ⁽⁴⁾

0.10" (2.5 mm)

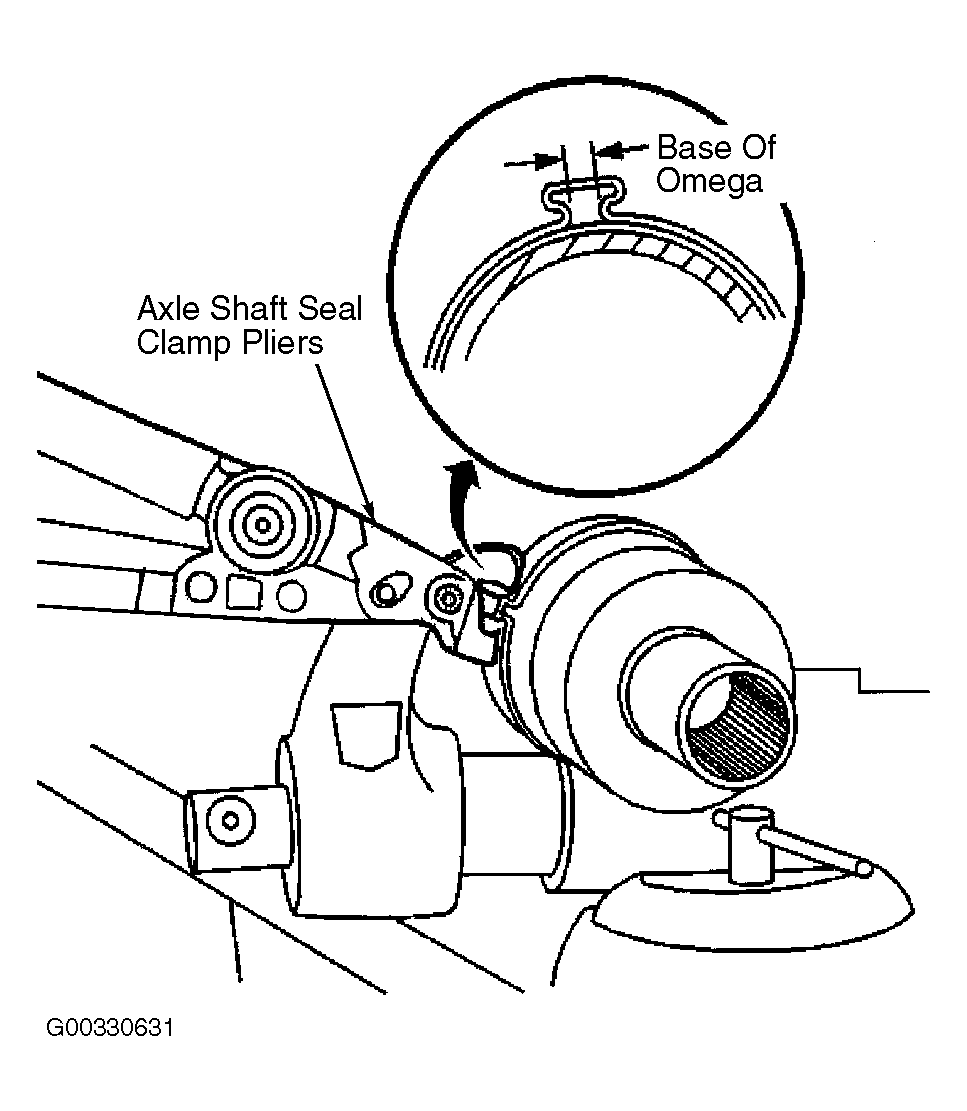

⁽¹⁾	Tighten the small seal retaining clamp until the base of omega (ohms) shape has a gap width of 0.079-0.118" (2-3 mm), with a difference in the gap width from side to side no greater than 0.016" (0.4 mm). See Figure .

⁽²⁾	Measure the distance between the end of the seal and the end of the joint outer race. See Figure .

⁽³⁾	See Figure .

⁽⁴⁾	See Figure
