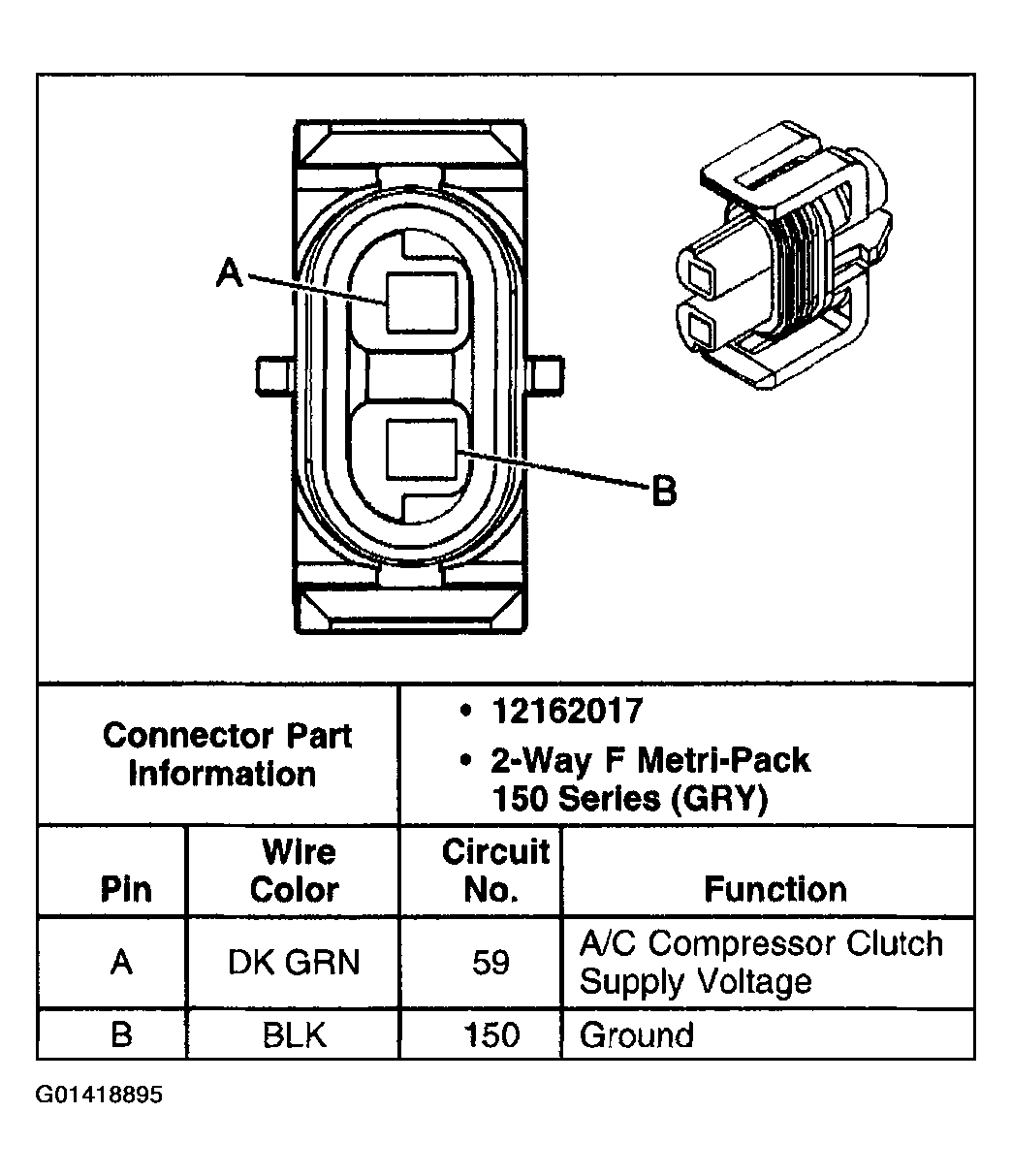

Fig 1: Identifying A/C Compressor Clutch Connector End Views
Courtesy of GENERAL MOTORS CORP.

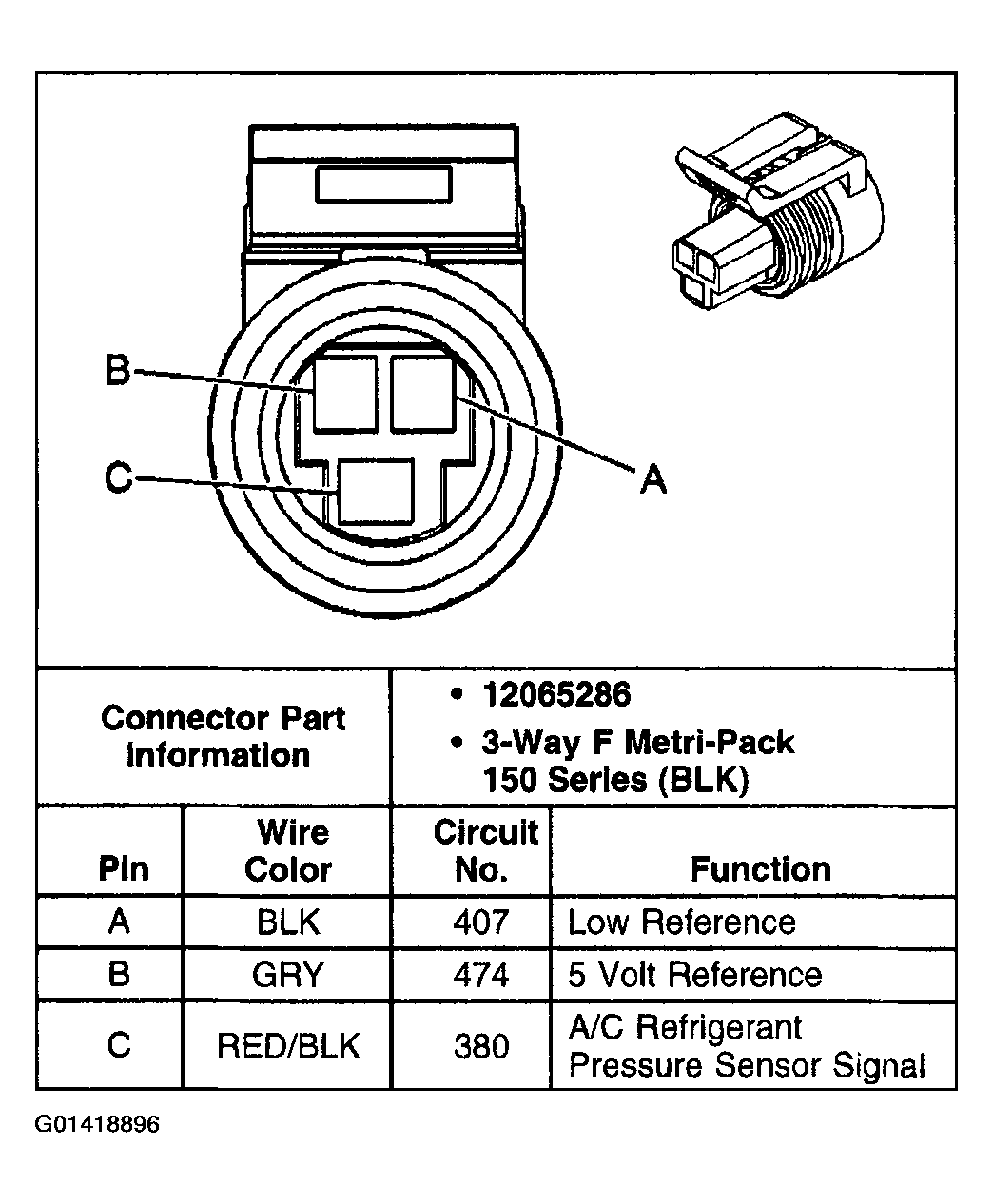

Fig 2: Identifying A/C Refrigerant Pressure Sensor Connector End Views
Courtesy of GENERAL MOTORS CORP.

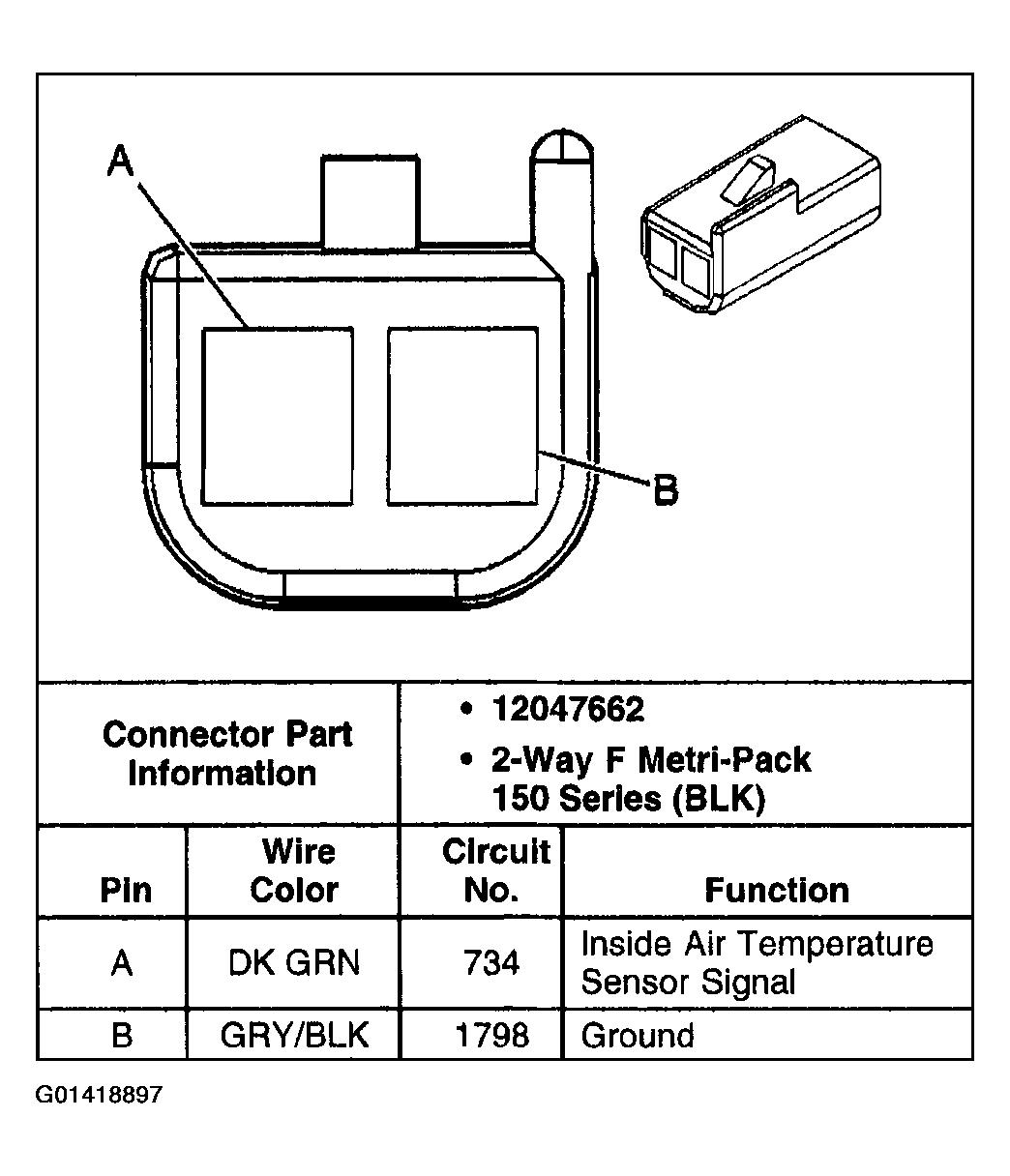

Fig 3: Identifying Air Temperature Sensor-Inside Connector End Views
Courtesy of GENERAL MOTORS CORP.

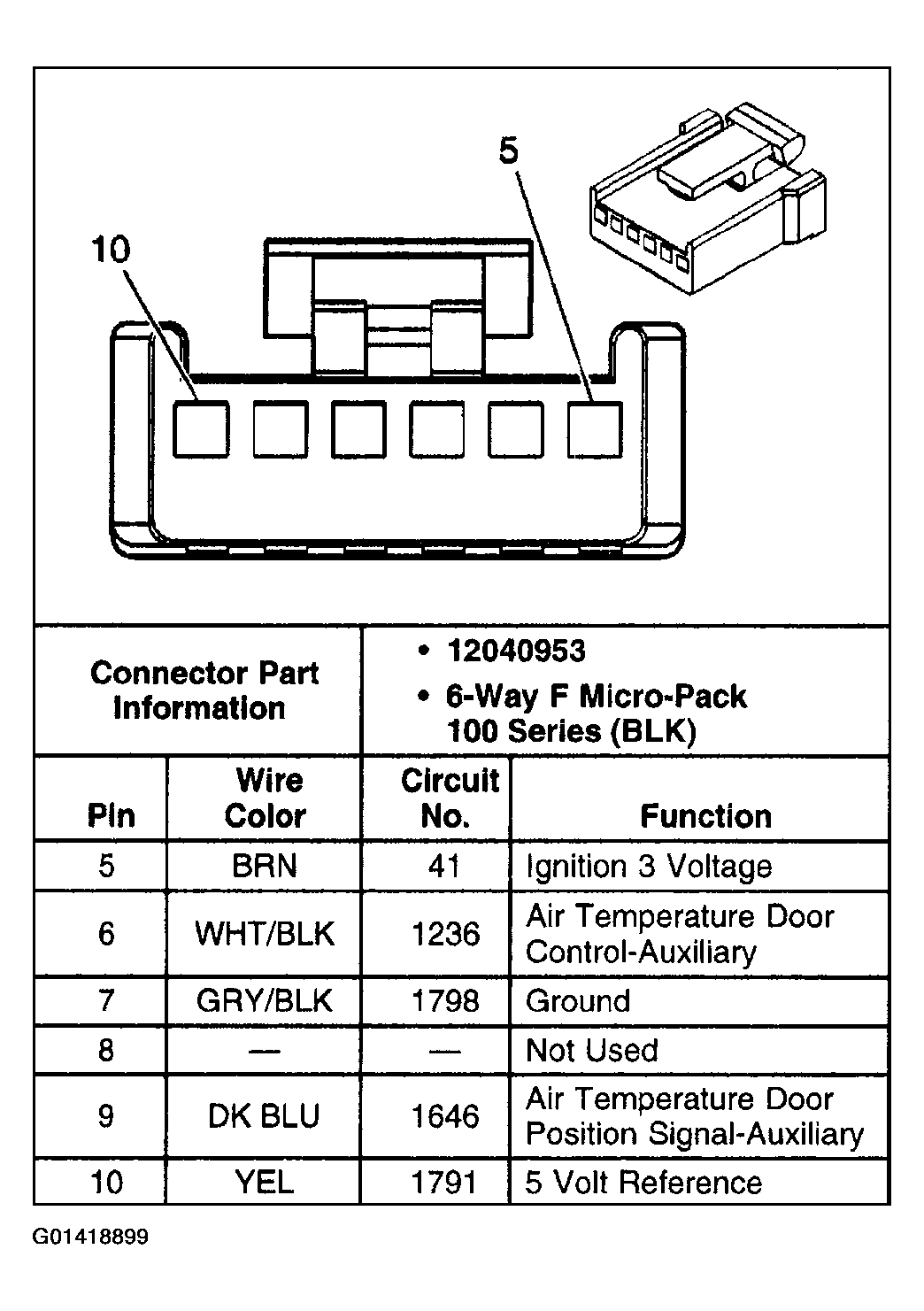

Fig 4: Identifying Air Temperature Actuator-Left Connector End View
Courtesy of GENERAL MOTORS CORP.

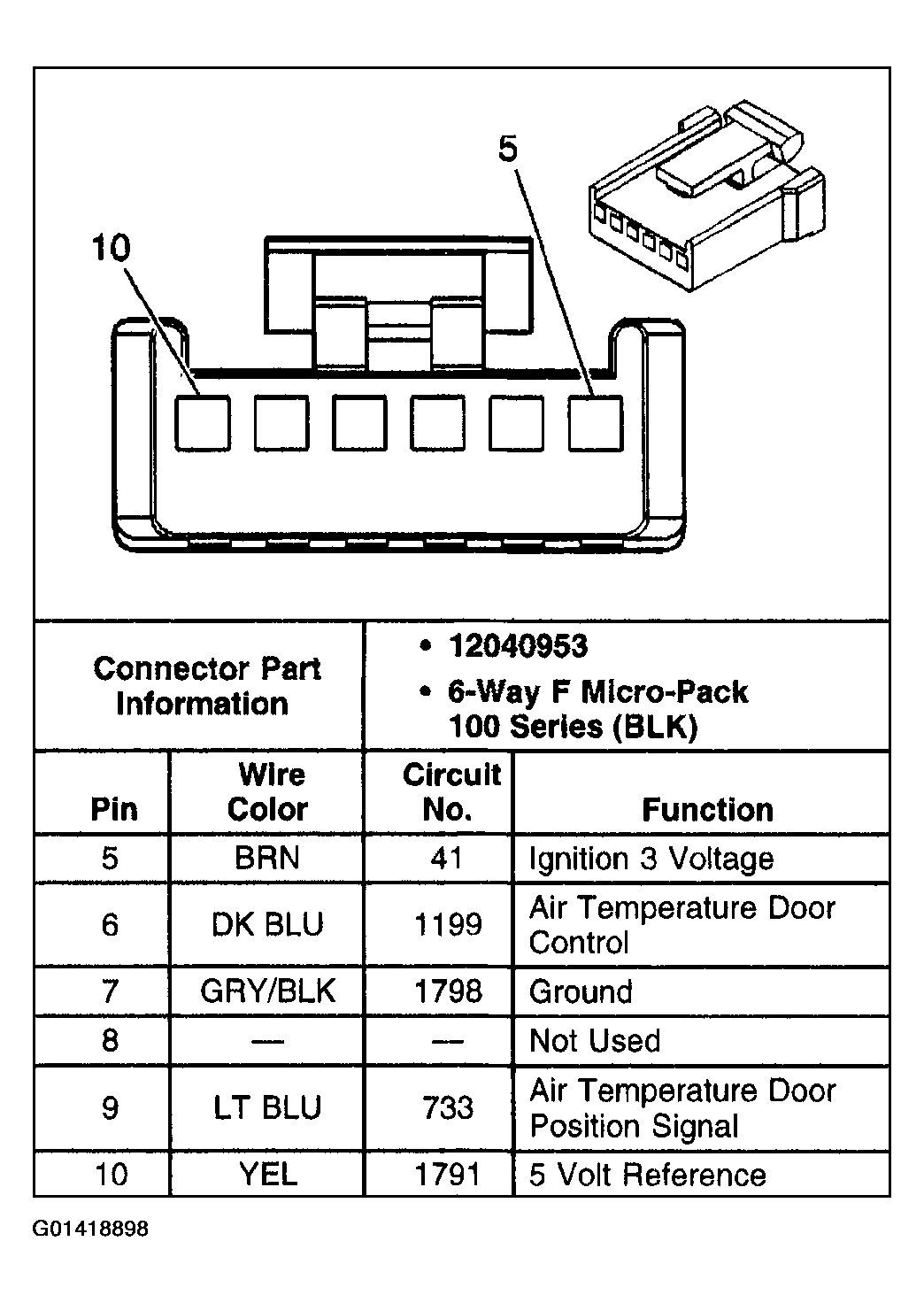

Fig 5: Identifying Air Temperature Actuator-Right Connector End View
Courtesy of GENERAL MOTORS CORP.

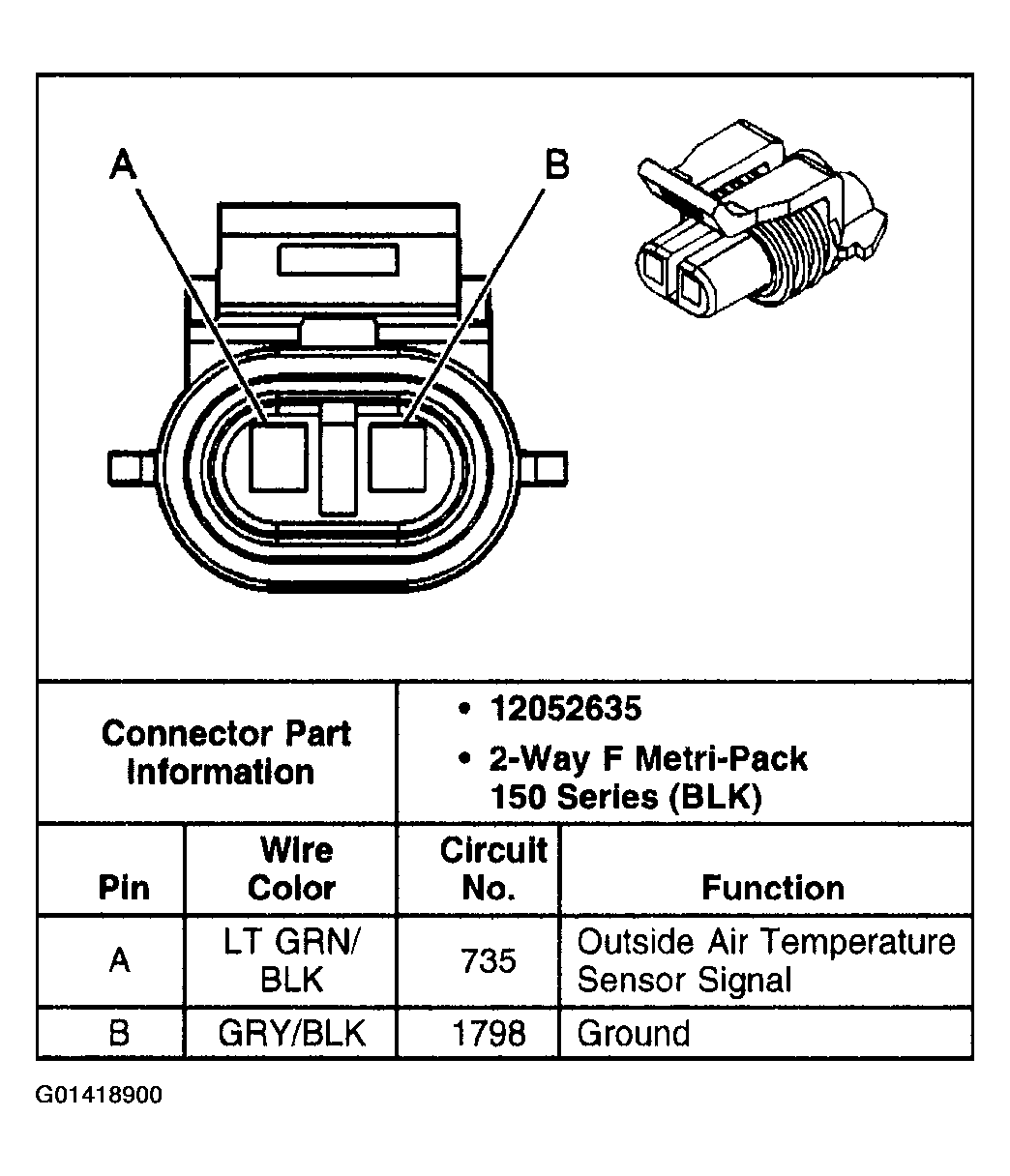

Fig 6: Identifying Ambient Air Temperature Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.

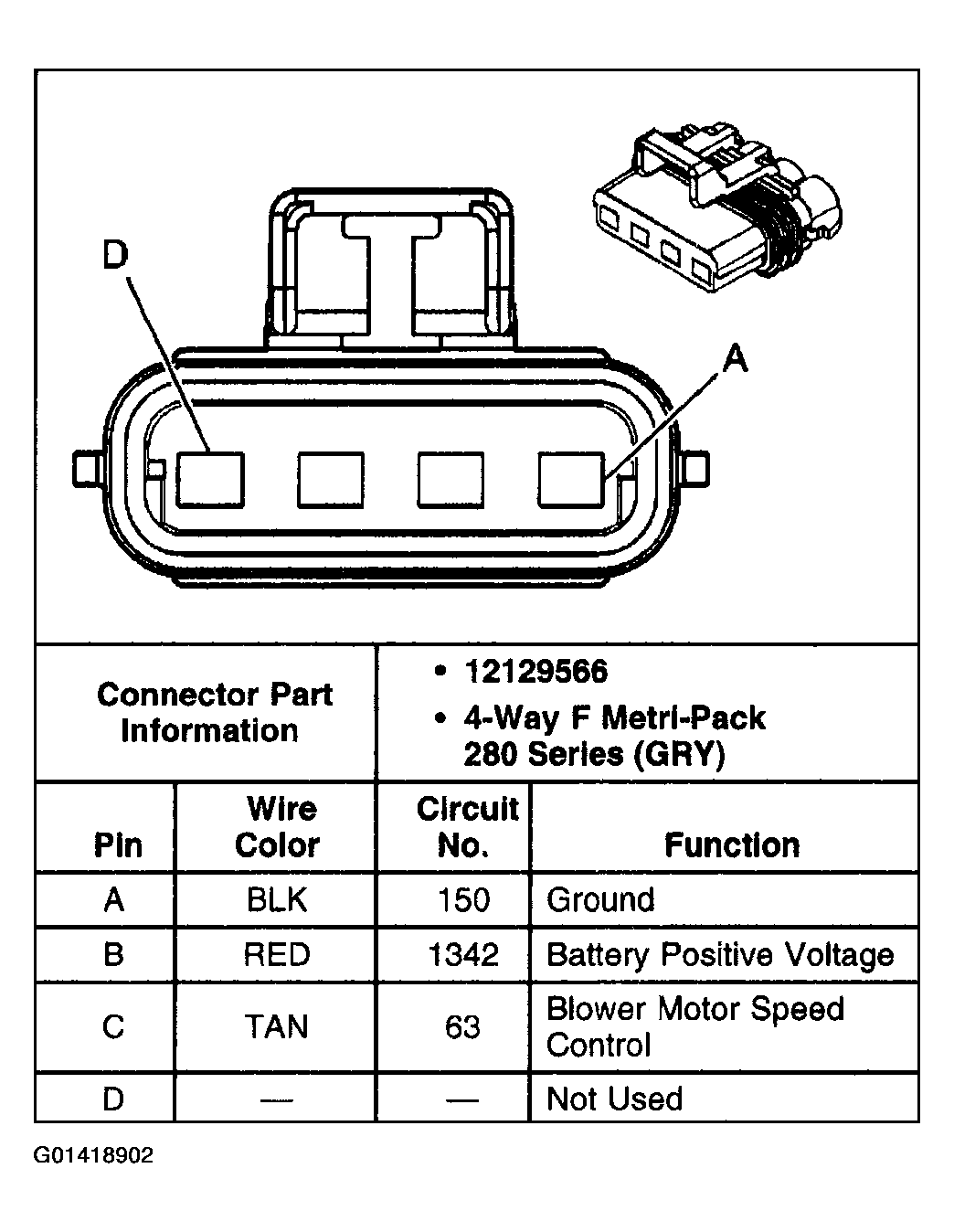

Fig 7: Identifying Blower Motor Connector End Views
Courtesy of GENERAL MOTORS CORP.

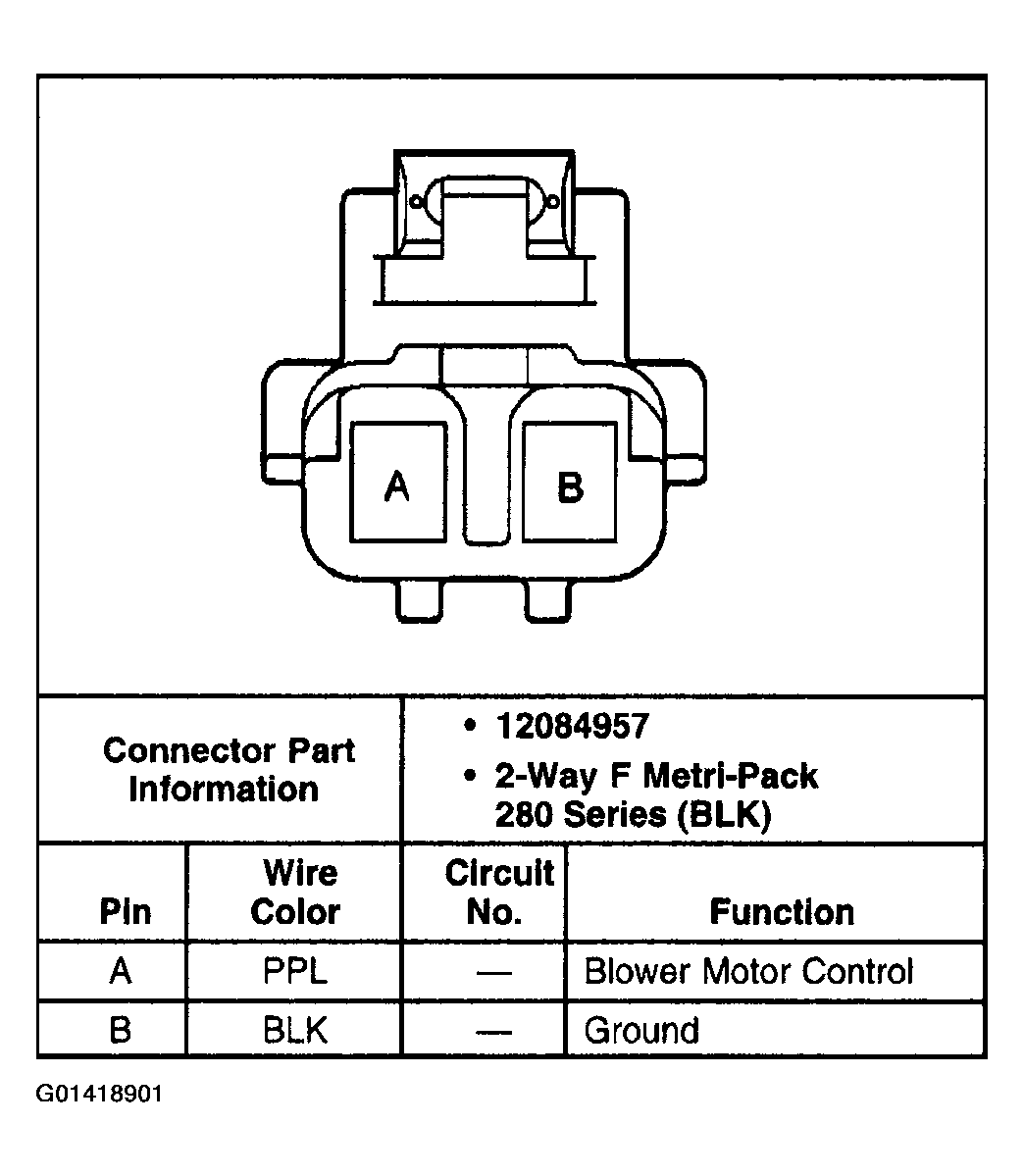

Fig 8: Identifying Blower Motor Control Processor Connector End View
Courtesy of GENERAL MOTORS CORP.

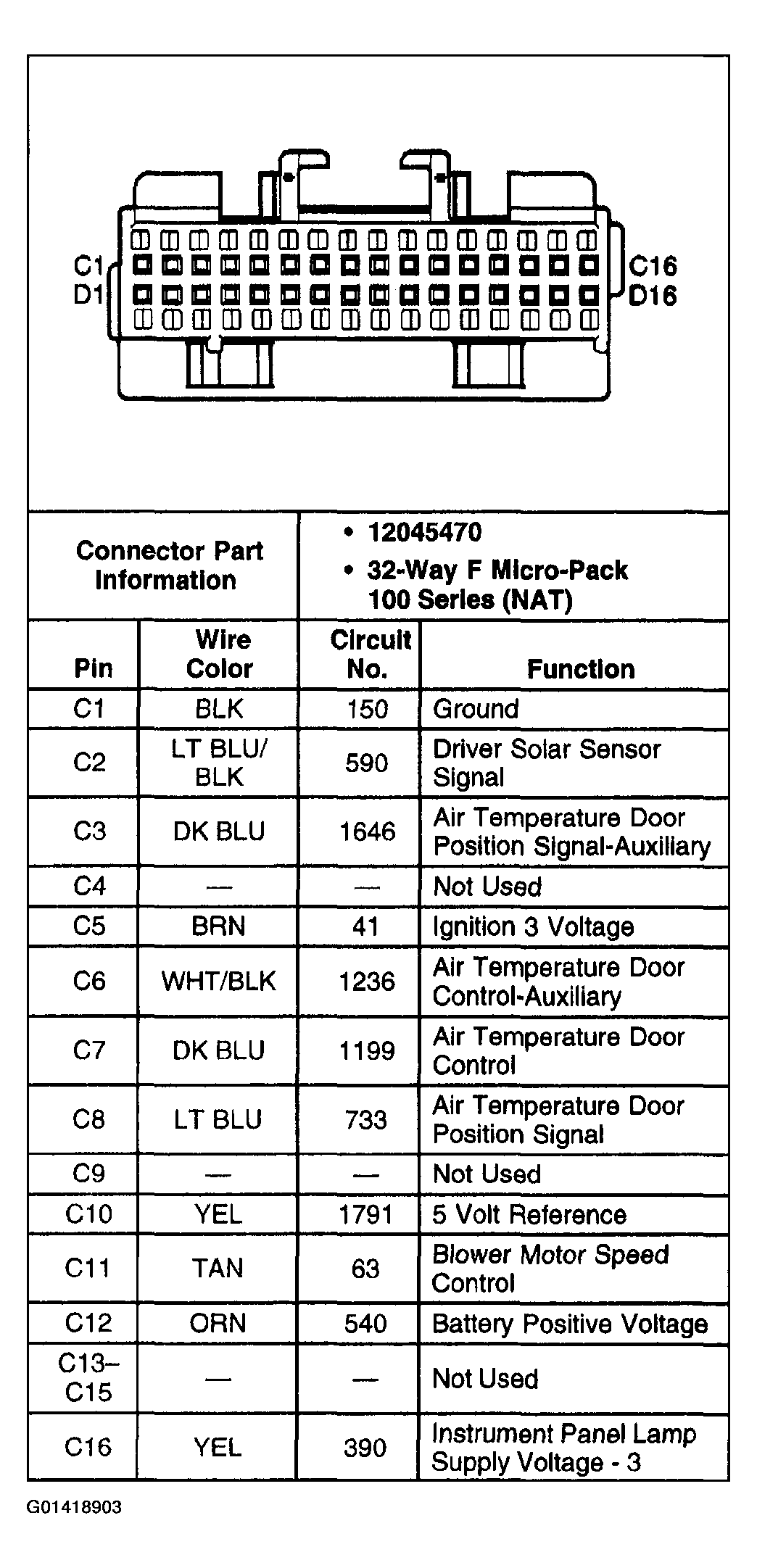

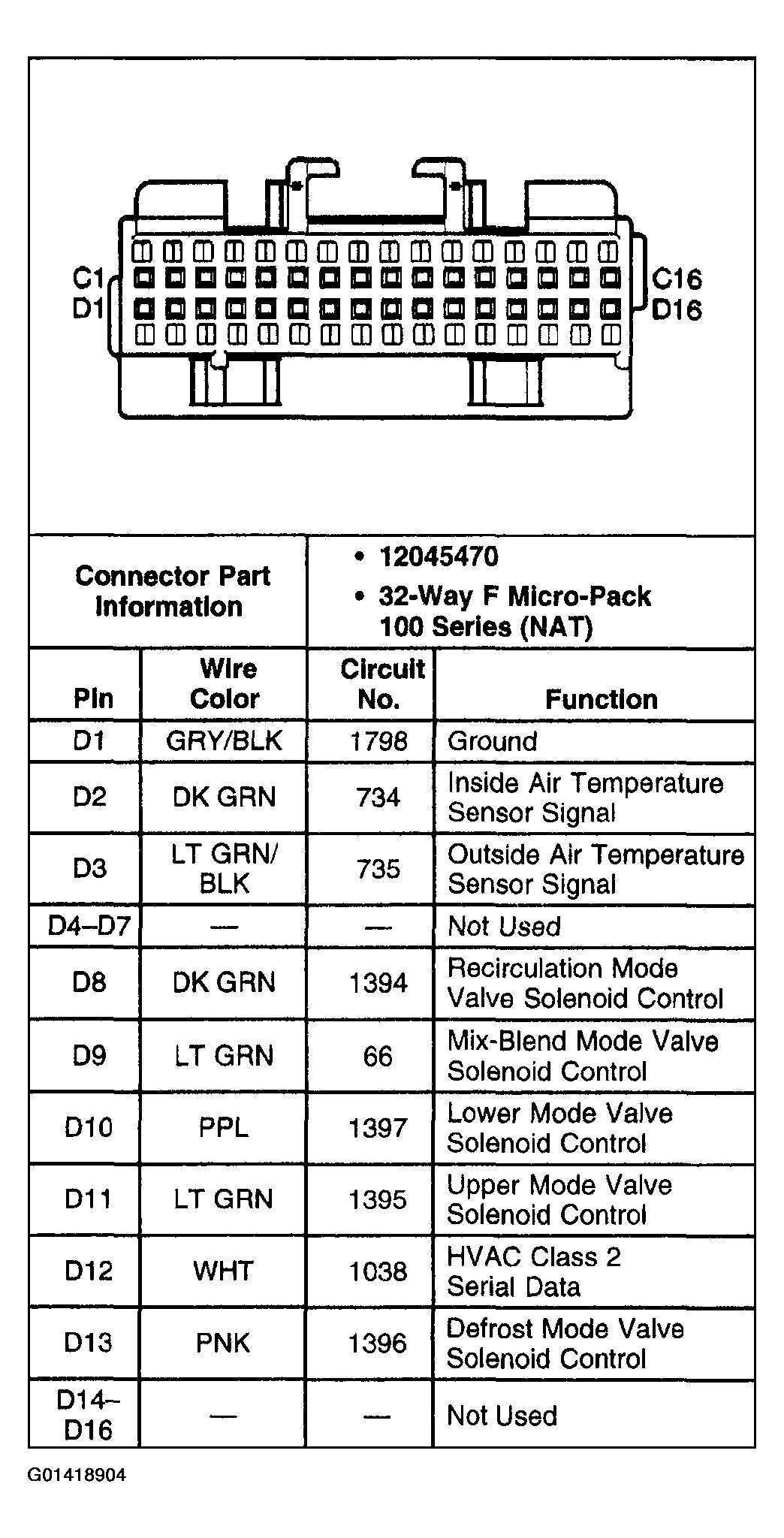

Fig 9: Identifying HVAC Control Module Connector End View (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 10: Identifying HVAC Control Module Connector End View (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 11: Identifying Sunload Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 12: Identifying Vacuum Control Assembly Connector End View
