Installation Procedure
WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

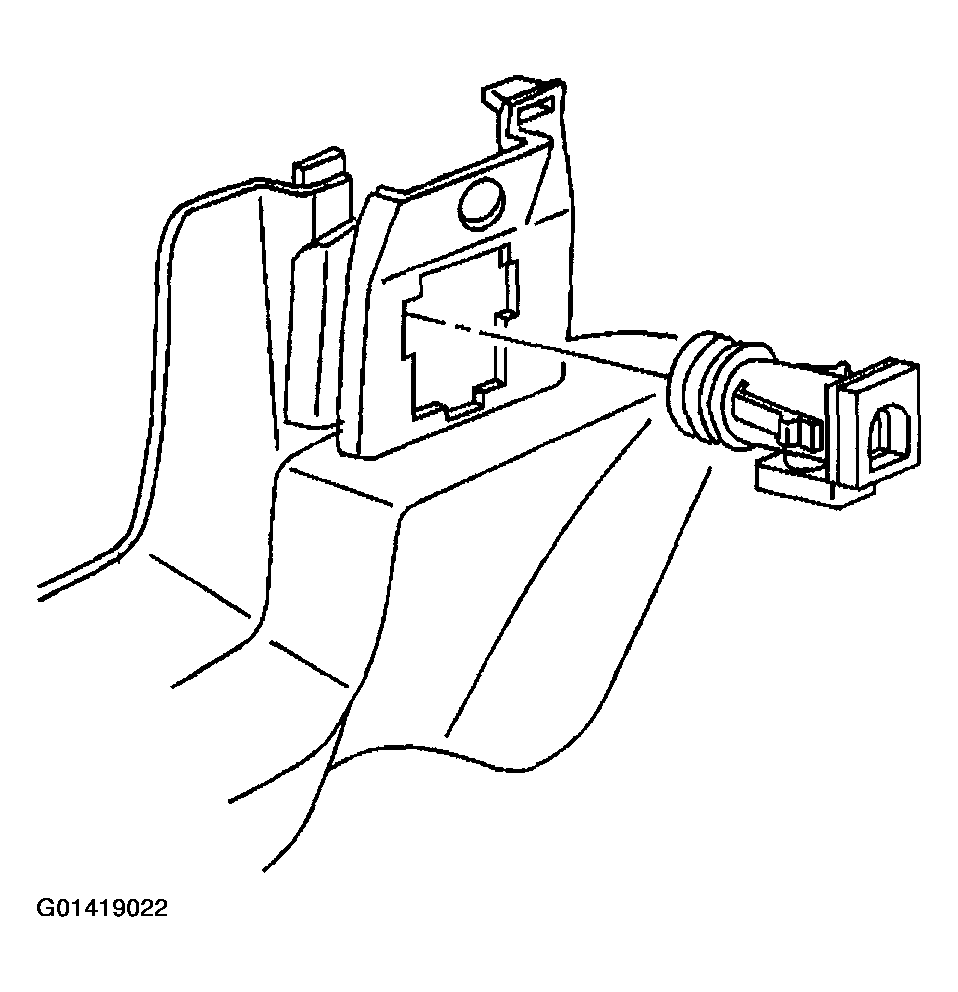

- Align the inside air temperature sensor to the driver knee bolster trim panel, then push to secure the retaining tabs.
Courtesy of GENERAL MOTORS CORP.

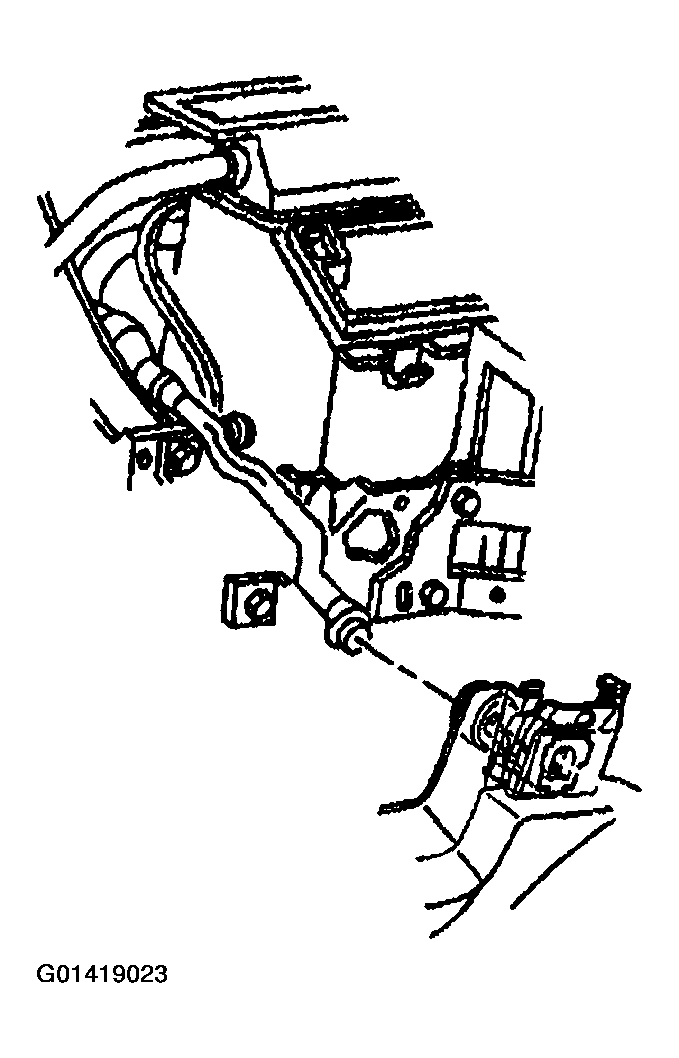

Important: The inside air temperature sensor must be aligned with and fit into the end of the inside air temperature sensor aspirator duct.
- Be sure to ALIGN the inside air temperature sensor with the inside air temperature sensor aspirator duct, while installing the driver knee bolster trim panel.
- Install the drivers knee bolster trim panel. Refer to TRIM PANEL REPLACEMENT - KNEE BOLSTER in Instrument Panel, Gages and Console.
- Install the I/P accessory trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY in Instrument Panel, Gages and Console.
